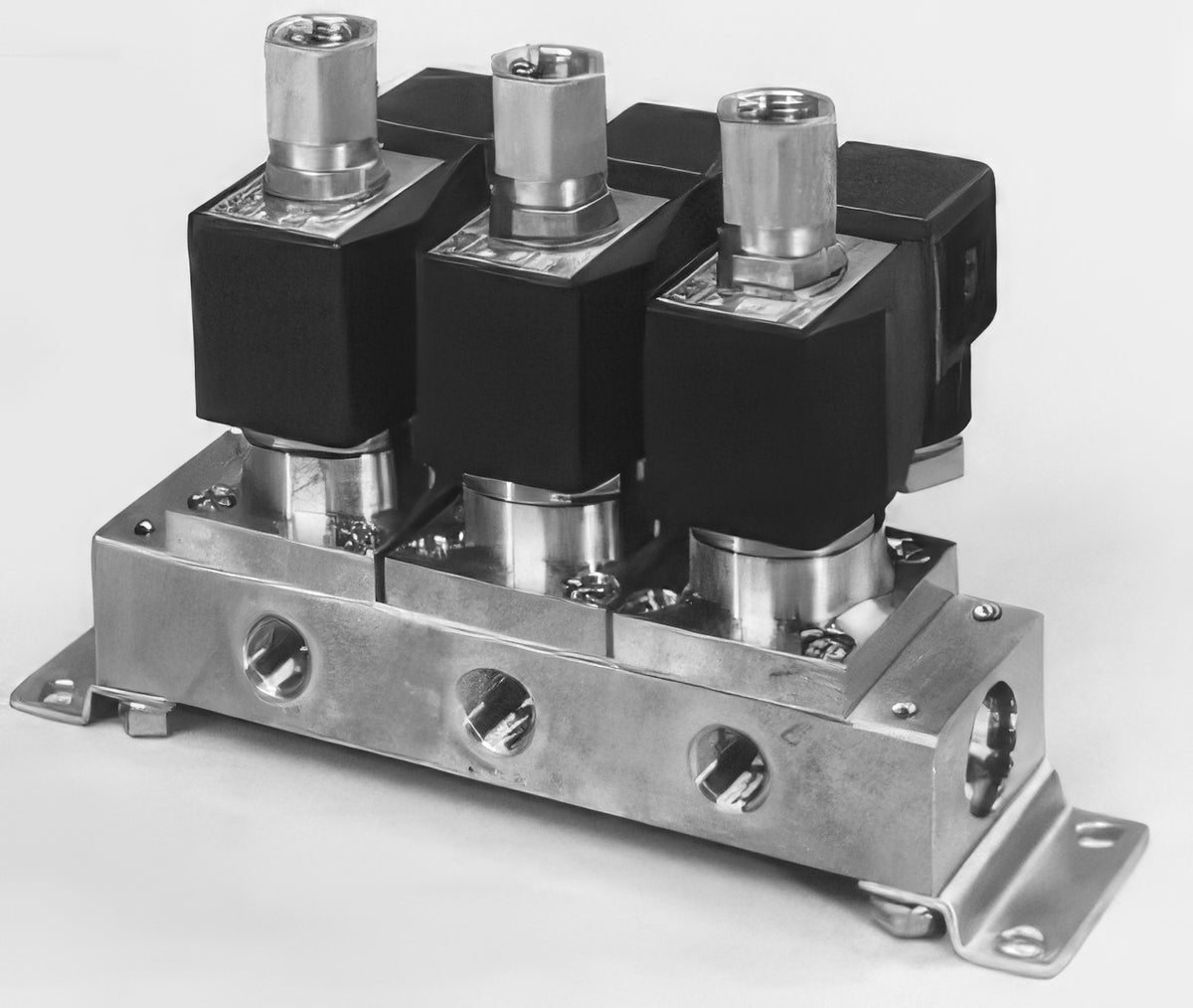

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG311, GAG312, GAG351, GAG352, GAG412, GAG413, GAG452, GAG453 Series

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG311, GAG312, GAG351, GAG352, GAG412, GAG413, GAG452, GAG453 Series

Manifold-mount actuator version of the MULTILEX AG31/AG41 direct-acting 3-port universal solenoid valve.

Key features

  • NO-port sizes Rc1/8 to Rc3/8, for air, low vacuum, water, kerosene and oil
  • Codes give model and orifice; A/C port sizes, station count, coil and voltage are added when ordering

Specifications

Type universal
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG311-1 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG351-1 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG311-2 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG351-2 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG312-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG352-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG312-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG352-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG412-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG452-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG412-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG452-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG413-1 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG453-1 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG413-2 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG453-2 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG311, GAG312, GAG351, GAG352, GAG412, GAG413, GAG452, GAG453 Series

Brand CKD·Solenoid Valves

Available part numbers (16)

GAG311-1, GAG351-1, GAG311-2, GAG351-2, GAG312-1, GAG352-1, GAG312-2, GAG352-2, GAG412-1, GAG452-1 + 6 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAG311-1Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG351-1Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG311-2Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG351-2Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG312-1Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG352-1Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG312-2Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG352-2Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG412-1Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG452-1Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG412-2Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG452-2Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG413-1Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG453-1Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG413-2Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG453-2Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
