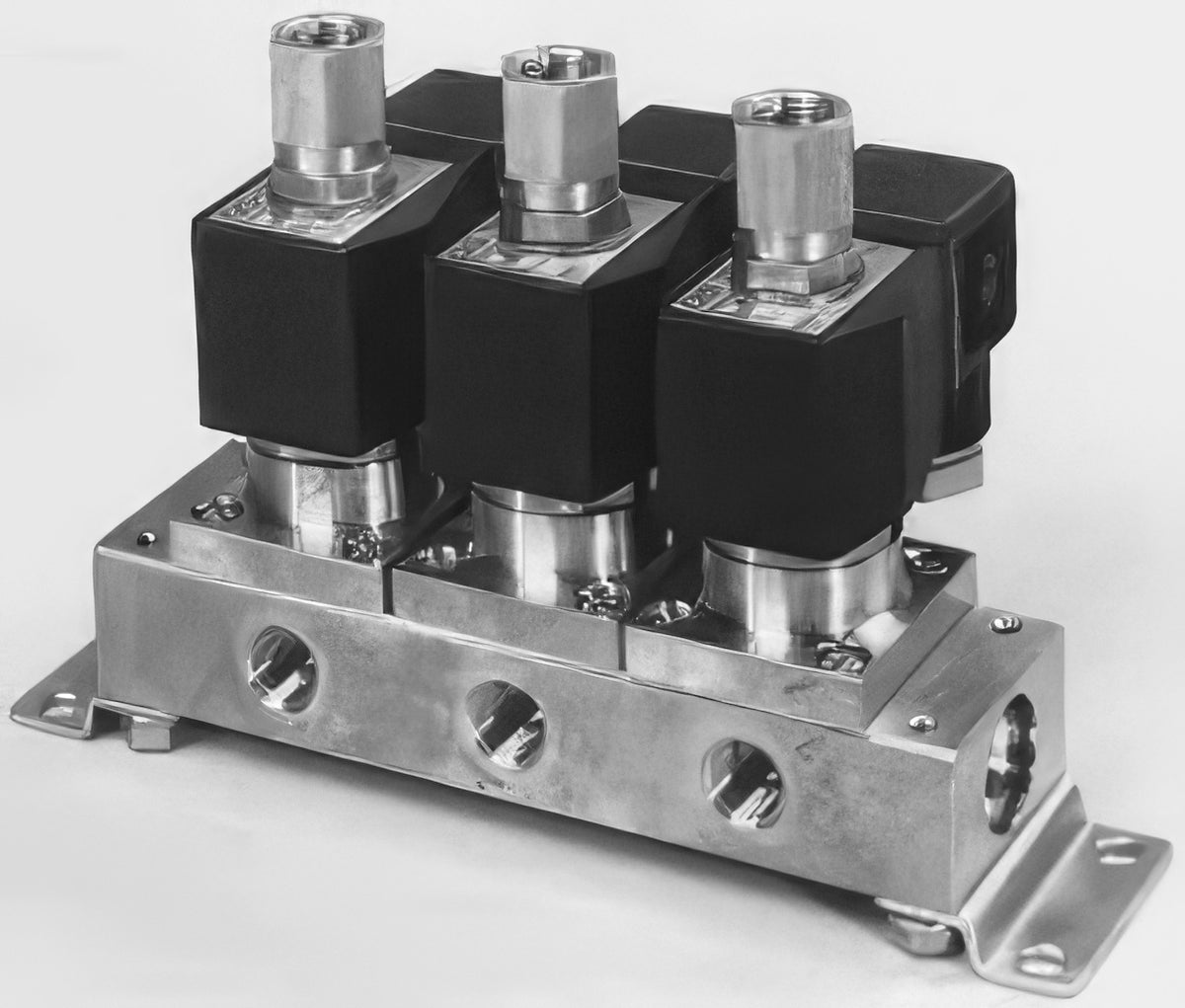

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG331, GAG332, GAG432, GAG433 Series

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG331, GAG332, GAG432, GAG433 Series

Manifold-mount actuator version of the MULTILEX AG33/AG43 direct-acting 3-port solenoid valve.

Key features

  • NO-port sizes Rc1/8 to Rc3/8
  • Codes give model and orifice; A/C port sizes, station count, coil and voltage are added when ordering

Specifications

Type NC pressurized
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG331-1 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG331-2 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG332-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG332-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG432-4 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG432-5 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG433-4 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG433-5 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Manifold/Actuator GAG331, GAG332, GAG432, GAG433 Series

Brand CKD·Solenoid Valves

Available part numbers (8)

GAG331-1, GAG331-2, GAG332-1, GAG332-2, GAG432-4, GAG432-5, GAG433-4, GAG433-5

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAG331-1Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG331-2Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG332-1Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG332-2Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG432-4Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG432-5Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG433-4Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG433-5Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
