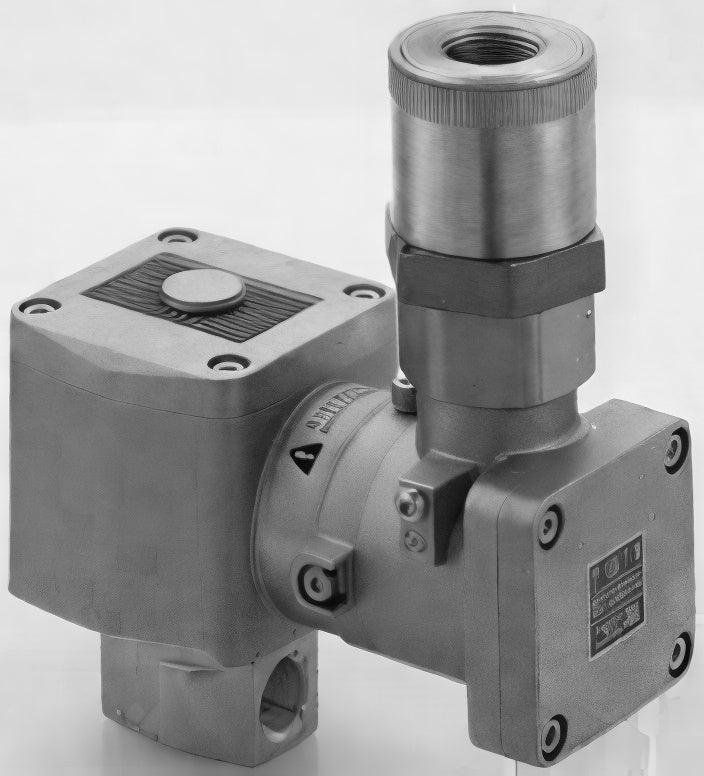

CKD MULTILEX Explosion-Proof Direct Acting 2-Port Solenoid Valve AB41EX2 Series (Ex d IIB T2, NC, Steam Compatible)

CKD MULTILEX Explosion-Proof Direct Acting 2-Port Solenoid Valve AB41EX2 Series (Ex d IIB T2, NC, Steam Compatible)

Flameproof (Ex d IIB T2) direct-acting 2-port solenoid valve from the MULTILEX range, suitable for fluids up to 170 C including steam.

Key features

  • Normally closed, Rc1/4 or Rc3/8 ports, AC coils
  • Codes give port and orifice

Specifications

Type NC
Max working pressure (MPa) 5 (steam 0.7)
Mass (kg) 1.2
Explosion protection flameproof Ex d IIB T2
Fluid air, water, kerosene, oil, steam
Coil voltage AC100V, AC200V
AB41EX2-02-1 Port: Rc1/4 | Orifice (mm): 1.5 | Max op. pressure diff. air AC (MPa): 4 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 2.5 | Max op. pressure diff. oil AC (MPa): 2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-2 Port: Rc1/4 | Orifice (mm): 2.0 | Max op. pressure diff. air AC (MPa): 2 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 1.5 | Max op. pressure diff. oil AC (MPa): 1.2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-3 Port: Rc1/4 | Orifice (mm): 3.0 | Max op. pressure diff. air AC (MPa): 0.9 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.7 | Max op. pressure diff. oil AC (MPa): 0.4 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-4 Port: Rc1/4 | Orifice (mm): 3.5 | Max op. pressure diff. air AC (MPa): 0.7 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.6 | Max op. pressure diff. oil AC (MPa): 0.3 | Max op. pressure diff. steam AC (MPa): 0.6 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-5 Port: Rc1/4 | Orifice (mm): 4.0 | Max op. pressure diff. air AC (MPa): 0.5 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.4 | Max op. pressure diff. oil AC (MPa): 0.2 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-6 Port: Rc1/4 | Orifice (mm): 5.0 | Max op. pressure diff. air AC (MPa): 0.3 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.3 | Max op. pressure diff. oil AC (MPa): 0.15 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-7 Port: Rc1/4 | Orifice (mm): 7.0 | Max op. pressure diff. air AC (MPa): 0.15 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.15 | Max op. pressure diff. oil AC (MPa): 0.1 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-1 Port: Rc3/8 | Orifice (mm): 1.5 | Max op. pressure diff. air AC (MPa): 4 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 2.5 | Max op. pressure diff. oil AC (MPa): 2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-2 Port: Rc3/8 | Orifice (mm): 2.0 | Max op. pressure diff. air AC (MPa): 2 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 1.5 | Max op. pressure diff. oil AC (MPa): 1.2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-3 Port: Rc3/8 | Orifice (mm): 3.0 | Max op. pressure diff. air AC (MPa): 0.9 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.7 | Max op. pressure diff. oil AC (MPa): 0.4 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-4 Port: Rc3/8 | Orifice (mm): 3.5 | Max op. pressure diff. air AC (MPa): 0.7 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.6 | Max op. pressure diff. oil AC (MPa): 0.3 | Max op. pressure diff. steam AC (MPa): 0.6 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-5 Port: Rc3/8 | Orifice (mm): 4.0 | Max op. pressure diff. air AC (MPa): 0.5 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.4 | Max op. pressure diff. oil AC (MPa): 0.2 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-6 Port: Rc3/8 | Orifice (mm): 5.0 | Max op. pressure diff. air AC (MPa): 0.3 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.3 | Max op. pressure diff. oil AC (MPa): 0.15 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-7 Port: Rc3/8 | Orifice (mm): 7.0 | Max op. pressure diff. air AC (MPa): 0.15 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.15 | Max op. pressure diff. oil AC (MPa): 0.1 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
Explosion-Proof Solenoid ValvesCKD
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Explosion-Proof Direct Acting 2-Port Solenoid Valve AB41EX2 Series (Ex d IIB T2, NC, Steam Compatible)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (14)

AB41EX2-02-1, AB41EX2-02-2, AB41EX2-02-3, AB41EX2-02-4, AB41EX2-02-5, AB41EX2-02-6, AB41EX2-02-7, AB41EX2-03-1, AB41EX2-03-2, AB41EX2-03-3 + 4 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB41EX2-02-1Port: Rc1/4 | Orifice (mm): 1.5 | Max op. pressure diff. air AC (MPa): 4 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 2.5 | Max op. pressure diff. oil AC (MPa): 2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-2Port: Rc1/4 | Orifice (mm): 2.0 | Max op. pressure diff. air AC (MPa): 2 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 1.5 | Max op. pressure diff. oil AC (MPa): 1.2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-3Port: Rc1/4 | Orifice (mm): 3.0 | Max op. pressure diff. air AC (MPa): 0.9 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.7 | Max op. pressure diff. oil AC (MPa): 0.4 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-4Port: Rc1/4 | Orifice (mm): 3.5 | Max op. pressure diff. air AC (MPa): 0.7 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.6 | Max op. pressure diff. oil AC (MPa): 0.3 | Max op. pressure diff. steam AC (MPa): 0.6 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-5Port: Rc1/4 | Orifice (mm): 4.0 | Max op. pressure diff. air AC (MPa): 0.5 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.4 | Max op. pressure diff. oil AC (MPa): 0.2 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-6Port: Rc1/4 | Orifice (mm): 5.0 | Max op. pressure diff. air AC (MPa): 0.3 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.3 | Max op. pressure diff. oil AC (MPa): 0.15 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-02-7Port: Rc1/4 | Orifice (mm): 7.0 | Max op. pressure diff. air AC (MPa): 0.15 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.15 | Max op. pressure diff. oil AC (MPa): 0.1 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-1Port: Rc3/8 | Orifice (mm): 1.5 | Max op. pressure diff. air AC (MPa): 4 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 2.5 | Max op. pressure diff. oil AC (MPa): 2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-2Port: Rc3/8 | Orifice (mm): 2.0 | Max op. pressure diff. air AC (MPa): 2 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 1.5 | Max op. pressure diff. oil AC (MPa): 1.2 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-3Port: Rc3/8 | Orifice (mm): 3.0 | Max op. pressure diff. air AC (MPa): 0.9 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.7 | Max op. pressure diff. oil AC (MPa): 0.4 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-4Port: Rc3/8 | Orifice (mm): 3.5 | Max op. pressure diff. air AC (MPa): 0.7 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.6 | Max op. pressure diff. oil AC (MPa): 0.3 | Max op. pressure diff. steam AC (MPa): 0.6 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-5Port: Rc3/8 | Orifice (mm): 4.0 | Max op. pressure diff. air AC (MPa): 0.5 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.4 | Max op. pressure diff. oil AC (MPa): 0.2 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-6Port: Rc3/8 | Orifice (mm): 5.0 | Max op. pressure diff. air AC (MPa): 0.3 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.3 | Max op. pressure diff. oil AC (MPa): 0.15 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AB41EX2-03-7Port: Rc3/8 | Orifice (mm): 7.0 | Max op. pressure diff. air AC (MPa): 0.15 | Max op. pressure diff. water/hot water/kerosene AC (MPa): 0.15 | Max op. pressure diff. oil AC (MPa): 0.1 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 (steam 0.7) | Mass (kg): 1.2 | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
