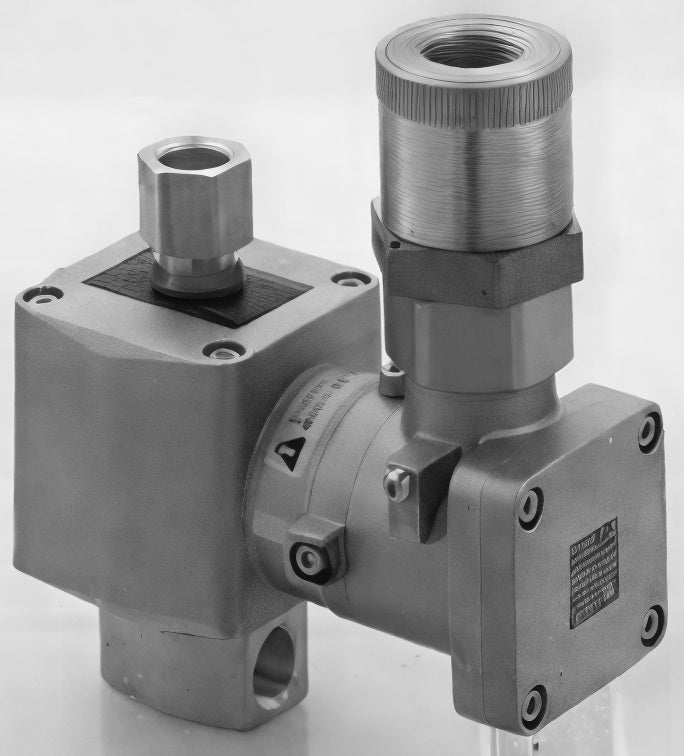

CKD MULTILEX Explosion-Proof Direct Acting 3-Port Solenoid Valve AG41EX4, AG43EX4, AG44EX4 Series (Ex d IIB T4)

CKD MULTILEX Explosion-Proof Direct Acting 3-Port Solenoid Valve AG41EX4, AG43EX4, AG44EX4 Series (Ex d IIB T4)

Flameproof (Ex d IIB T4) direct-acting 3-port solenoid valve from the MULTILEX range.

Key features

  • AG41EX4 universal, AG43EX4 NC-pressurized and AG44EX4 NO-pressurized types with Rc1/4 or Rc3/8 ports
  • Codes give port and orifice; coil and voltage options are added when ordering

Specifications

Mass (kg) 1.3
Explosion protection flameproof Ex d IIB T4
Fluid air, low vacuum, water, kerosene, oil
Coil voltage AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-03-1 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-02-2 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-03-2 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-02-4 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-03-4 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-02-5 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-03-5 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-1 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-3 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-3 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-4 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-4 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
Explosion-Proof Solenoid ValvesCKD
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Explosion-Proof Direct Acting 3-Port Solenoid Valve AG41EX4, AG43EX4, AG44EX4 Series (Ex d IIB T4)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (14)

AG41EX4-02-1, AG41EX4-03-1, AG41EX4-02-2, AG41EX4-03-2, AG43EX4-02-4, AG43EX4-03-4, AG43EX4-02-5, AG43EX4-03-5, AG44EX4-02-1, AG44EX4-03-1 + 4 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG41EX4-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-03-1Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-02-2Port: Rc1/4 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG41EX4-03-2Port: Rc3/8 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 | Type: universal | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-02-4Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-03-4Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-02-5Port: Rc1/4 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG43EX4-03-5Port: Rc3/8 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Type: NC pressurized | Max working pressure (MPa): 1 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-1Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-3Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-3Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-02-4Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
AG44EX4-03-4Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Max working pressure (MPa): 1.5 | Mass (kg): 1.3 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
