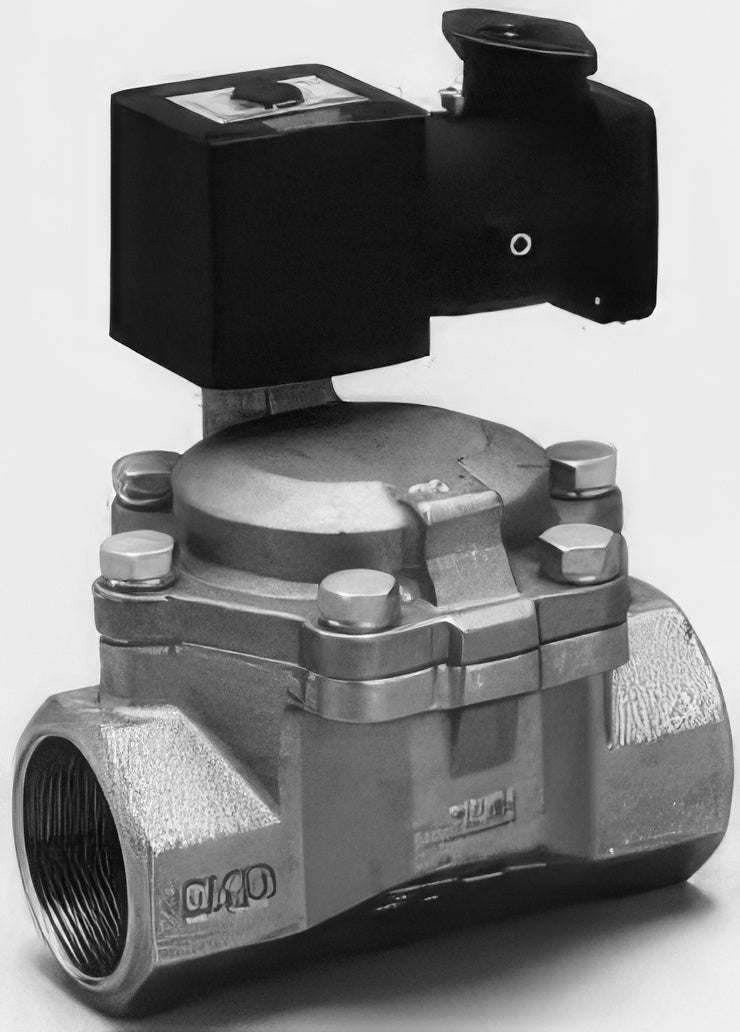

CKD MULTILEX Explosion-Proof Large Bore Pilot Operated 2-Port Solenoid Valve AP21E2, AP22E2 Series (Japan Type-Approved, Steam Compatible)

CKD MULTILEX Explosion-Proof Large Bore Pilot Operated 2-Port Solenoid Valve AP21E2, AP22E2 Series (Japan Type-Approved, Steam Compatible)

Flameproof large-bore pilot-operated piston 2-port solenoid valve from the MULTILEX range with Japanese type-approval, for fluids up to 181 C including steam.

Key features

  • AP21E2 normally closed, AP22E2 normally open, Rc1-1/4 to Rc2 threaded or 32A to 50A flanged ports
  • Codes give the base port size

Specifications

Min op. pressure diff. (MPa) 0.05
Max working pressure (MPa) 1.6 (steam 1)
Explosion protection flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved)
Fluid air, water, kerosene, oil, steam
Coil voltage AC100V, AC110V, AC200V, AC220V
AP21E2-32A Port: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 4.0 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-32F Port: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 7.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-40A Port: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 5.0 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-40F Port: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 8.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-50A Port: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 6.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-50F Port: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 10.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-32A Port: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 4.0 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-32F Port: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 7.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-40A Port: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 5.0 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-40F Port: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 8.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-50A Port: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 6.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-50F Port: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 10.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
Explosion-Proof Solenoid ValvesCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Explosion-Proof Large Bore Pilot Operated 2-Port Solenoid Valve AP21E2, AP22E2 Series (Japan Type-Approved, Steam Compatible)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (12)

AP21E2-32A, AP21E2-32F, AP21E2-40A, AP21E2-40F, AP21E2-50A, AP21E2-50F, AP22E2-32A, AP22E2-32F, AP22E2-40A, AP22E2-40F + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP21E2-32APort: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 4.0 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-32FPort: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 7.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-40APort: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 5.0 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-40FPort: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 8.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-50APort: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 6.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP21E2-50FPort: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 1.2 | Max op. pressure diff. water/kerosene (MPa): AC 1.0 | Max op. pressure diff. oil (MPa): AC 0.6 | Max op. pressure diff. steam (MPa): AC 1.0 | Mass (kg): 10.5 | Type: NC | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-32APort: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 4.0 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-32FPort: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 7.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-40APort: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 5.0 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-40FPort: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 8.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-50APort: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 6.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
AP22E2-50FPort: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.5 | Max op. pressure diff. water/kerosene (MPa): AC 0.5 | Max op. pressure diff. oil (MPa): AC 0.5 | Max op. pressure diff. steam (MPa): AC 0.5 | Mass (kg): 10.5 | Type: NO | Max working pressure (MPa): 1.6 (steam 1) | Explosion protection: flameproof, explosion class 1-2, ignition group G1-G2 (Japanese type-approved) | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC110V, AC200V, AC220V
