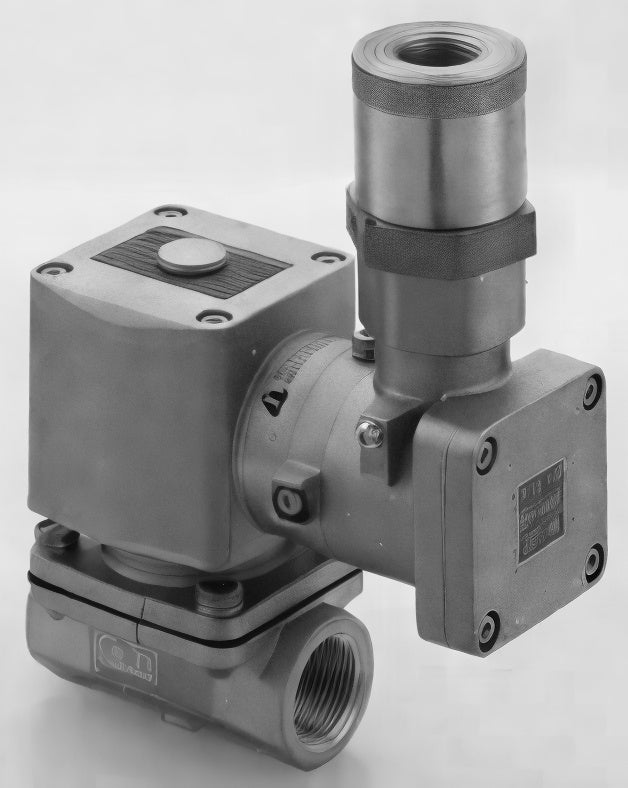

CKD MULTILEX Explosion-Proof Pilot Kick 2-Port Solenoid Valve ADK11EX4 Series (Ex d IIB T4, NC)

CKD MULTILEX Explosion-Proof Pilot Kick 2-Port Solenoid Valve ADK11EX4 Series (Ex d IIB T4, NC)

Flameproof (Ex d IIB T4) pilot-kick diaphragm 2-port solenoid valve from the MULTILEX range, operating from zero pressure differential.

Key features

  • Normally closed, Rc1/2 to Rc1 ports
  • Codes give the base port size

Specifications

Min op. pressure diff. (MPa) 0
Max op. pressure diff. air (MPa) AC 1 / DC 0.6
Max op. pressure diff. oil (MPa) AC 0.6 / DC 0.5
Type NC
Max working pressure (MPa) 2
Explosion protection flameproof Ex d IIB T4
Fluid air, low vacuum, water, kerosene, oil
Coil voltage AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
ADK11EX4-15A Port: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.4 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
ADK11EX4-20A Port: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.5 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
ADK11EX4-25A Port: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.9 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
Explosion-Proof Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Explosion-Proof Pilot Kick 2-Port Solenoid Valve ADK11EX4 Series (Ex d IIB T4, NC)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (3)

ADK11EX4-15A, ADK11EX4-20A, ADK11EX4-25A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADK11EX4-15APort: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.4 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
ADK11EX4-20APort: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.5 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
ADK11EX4-25APort: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air (MPa): AC 1 / DC 0.6 | Max op. pressure diff. water/kerosene (MPa): AC 1 / DC 0.6 | Max op. pressure diff. oil (MPa): AC 0.6 / DC 0.5 | Mass (kg): 1.9 | Type: NC | Max working pressure (MPa): 2 | Explosion protection: flameproof Ex d IIB T4 | Fluid: air, low vacuum, water, kerosene, oil | Coil voltage: AC100V, AC200V (option DC12V, DC24V, DC48V, DC100V)
