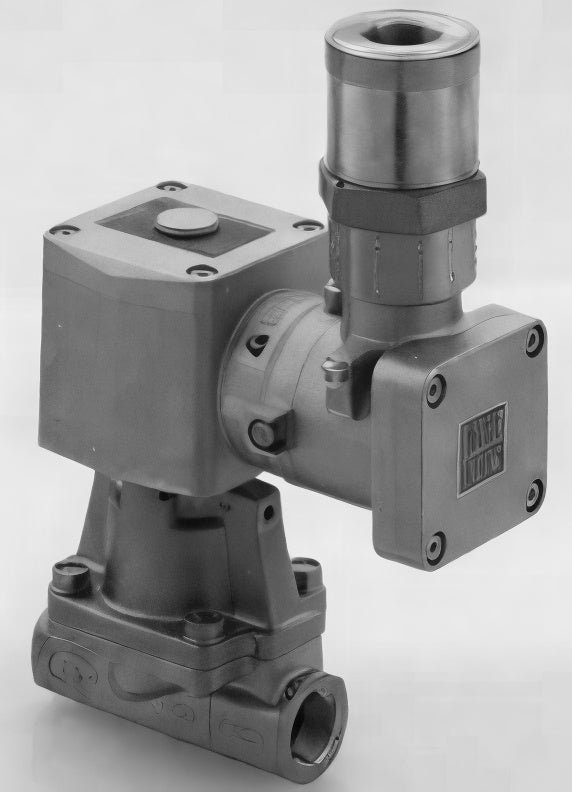

CKD MULTILEX Explosion-Proof Pilot Operated 2-Port Solenoid Valve AP11EX2 Series (Ex d IIB T2, NC, Steam Compatible)

CKD MULTILEX Explosion-Proof Pilot Operated 2-Port Solenoid Valve AP11EX2 Series (Ex d IIB T2, NC, Steam Compatible)

Flameproof (Ex d IIB T2) pilot-operated piston 2-port solenoid valve from the MULTILEX range for fluids up to 170 C including steam.

Key features

  • Normally closed, Rc1/2 to Rc1 ports, AC coils
  • Codes give the base port size

Specifications

Min op. pressure diff. (MPa) 0.05
Max op. pressure diff. air (MPa) AC 0.7
Max op. pressure diff. oil (MPa) AC 0.3
Max op. pressure diff. steam (MPa) AC 0.6
Type NC
Max working pressure (MPa) 2 (steam 0.7)
Explosion protection flameproof Ex d IIB T2
Fluid air, water, kerosene, oil, steam
Coil voltage AC100V, AC200V
AP11EX2-15A Port: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 2.1 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AP11EX2-20A Port: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 2.5 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AP11EX2-25A Port: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 3.2 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
Explosion-Proof Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Explosion-Proof Pilot Operated 2-Port Solenoid Valve AP11EX2 Series (Ex d IIB T2, NC, Steam Compatible)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (3)

AP11EX2-15A, AP11EX2-20A, AP11EX2-25A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP11EX2-15APort: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 2.1 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AP11EX2-20APort: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 2.5 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
AP11EX2-25APort: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air (MPa): AC 0.7 | Max op. pressure diff. water/kerosene (MPa): AC 0.6 | Max op. pressure diff. oil (MPa): AC 0.3 | Max op. pressure diff. steam (MPa): AC 0.6 | Mass (kg): 3.2 | Type: NC | Max working pressure (MPa): 2 (steam 0.7) | Explosion protection: flameproof Ex d IIB T2 | Fluid: air, water, kerosene, oil, steam | Coil voltage: AC100V, AC200V
