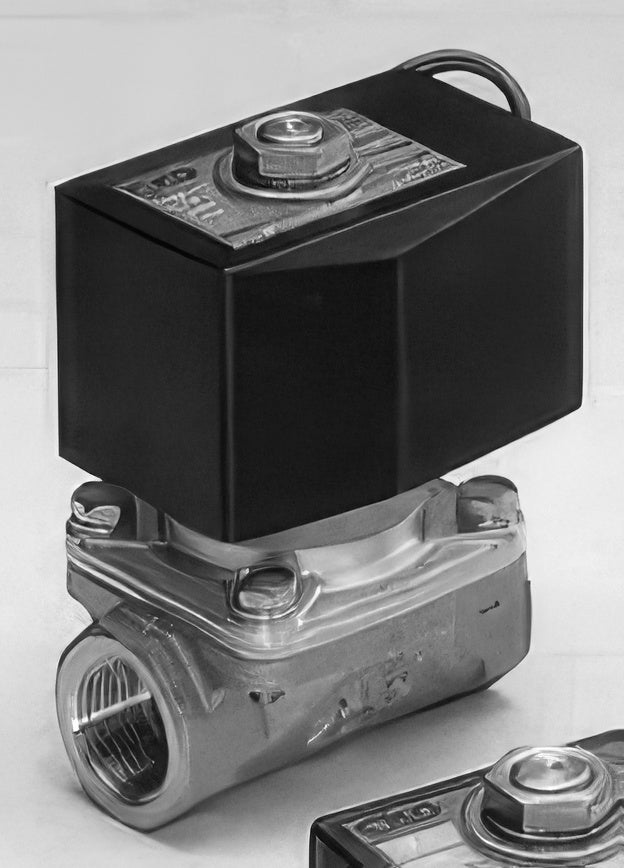

CKD MULTILEX Large Bore Direct Acting 2-Port Solenoid Valve AB71 Series (NC)

CKD MULTILEX Large Bore Direct Acting 2-Port Solenoid Valve AB71 Series (NC)

Large-bore direct-acting 2-port solenoid valve from the MULTILEX range.

Key features

  • Normally closed, Rc1/2 to Rc1 ports, for air, water, kerosene and oil up to 20 mm2/s
  • Low operating pressure differential type suitable for gravity-fed lines

Specifications

Type NC
Fluid air, water, kerosene, oil (20 mm2/s)
Coil voltage AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
AB71-15-12 Port: Rc1/2 | Orifice (mm): 12 | Operating pressure diff. air (MPa): AC 0-0.1, DC 0-0.08 | Operating pressure diff. water/oil (MPa): AC 0-0.08, DC 0-0.08 | C (dm3/(s·bar)): 15 | b: 0.21 | Cv: 2.8 | Mass (kg): 1.0 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
AB71-20-15 Port: Rc3/4 | Orifice (mm): 15 | Operating pressure diff. air (MPa): AC 0-0.07, DC 0-0.04 | Operating pressure diff. water/oil (MPa): AC 0-0.05, DC 0-0.04 | Cv: 4.3 | S (mm2): 106 | Mass (kg): 1.2 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
AB71-25-18 Port: Rc1 | Orifice (mm): 18 | Operating pressure diff. air (MPa): AC 0-0.04, DC 0-0.03 | Operating pressure diff. water/oil (MPa): AC 0-0.03, DC 0-0.03 | Cv: 6.3 | S (mm2): 148 | Mass (kg): 1.6 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Large Bore Direct Acting 2-Port Solenoid Valve AB71 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (3)

AB71-15-12, AB71-20-15, AB71-25-18

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB71-15-12Port: Rc1/2 | Orifice (mm): 12 | Operating pressure diff. air (MPa): AC 0-0.1, DC 0-0.08 | Operating pressure diff. water/oil (MPa): AC 0-0.08, DC 0-0.08 | C (dm3/(s·bar)): 15 | b: 0.21 | Cv: 2.8 | Mass (kg): 1.0 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
AB71-20-15Port: Rc3/4 | Orifice (mm): 15 | Operating pressure diff. air (MPa): AC 0-0.07, DC 0-0.04 | Operating pressure diff. water/oil (MPa): AC 0-0.05, DC 0-0.04 | Cv: 4.3 | S (mm2): 106 | Mass (kg): 1.2 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
AB71-25-18Port: Rc1 | Orifice (mm): 18 | Operating pressure diff. air (MPa): AC 0-0.04, DC 0-0.03 | Operating pressure diff. water/oil (MPa): AC 0-0.03, DC 0-0.03 | Cv: 6.3 | S (mm2): 148 | Mass (kg): 1.6 | Type: NC | Fluid: air, water, kerosene, oil (20 mm2/s) | Coil voltage: AC100V, AC200V, AC110V, AC220V, DC12V, DC24V, DC48V, DC100V
