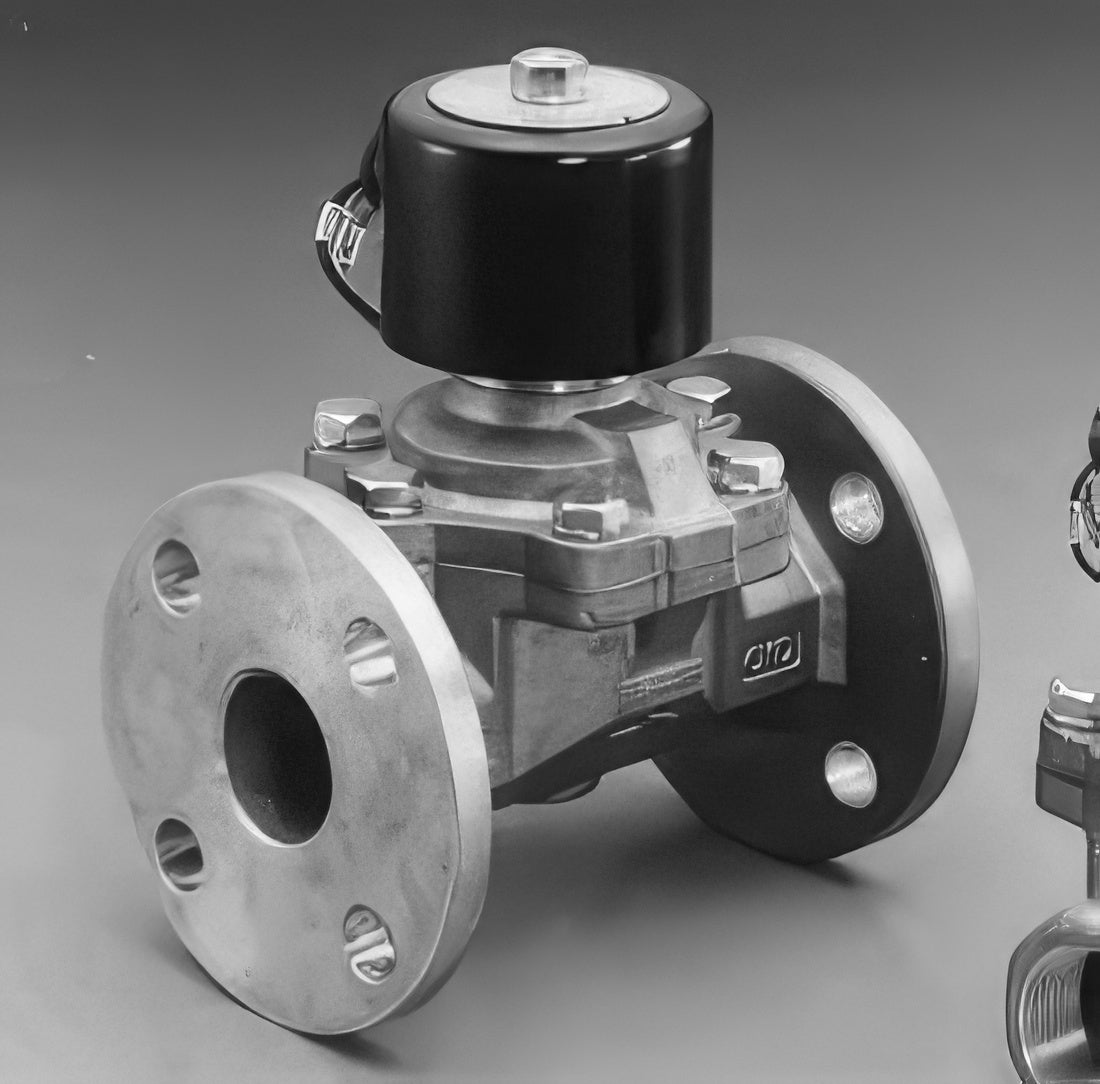

CKD MULTILEX Large Bore Pilot Kick 2-Port Solenoid Valve APK21 Series (NC)

CKD MULTILEX Large Bore Pilot Kick 2-Port Solenoid Valve APK21 Series (NC)

Large-bore pilot-kick 2-port solenoid valve from the MULTILEX range, operating from zero pressure differential.

Key features

  • Normally closed, Rc1-1/4 to Rc2 threaded or 32A to 50A flanged ports
  • Codes give the base port size; seal, coil option and voltage are added when ordering

Specifications

Min op. pressure diff. (MPa) 0
Max op. pressure diff. air AC/DC (MPa) 0.7/0.6
Max op. pressure diff. oil AC/DC (MPa) 0.5/0.5
Max op. pressure diff. steam AC (MPa) 0.7
Type NC
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-32A Port: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 4.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-32F Port: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 8 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-40A Port: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 5.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-40F Port: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 9 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-50A Port: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK21-50F Port: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Mass (kg): 11.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Large Bore Pilot Kick 2-Port Solenoid Valve APK21 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (6)

APK21-32A, APK21-32F, APK21-40A, APK21-40F, APK21-50A, APK21-50F
