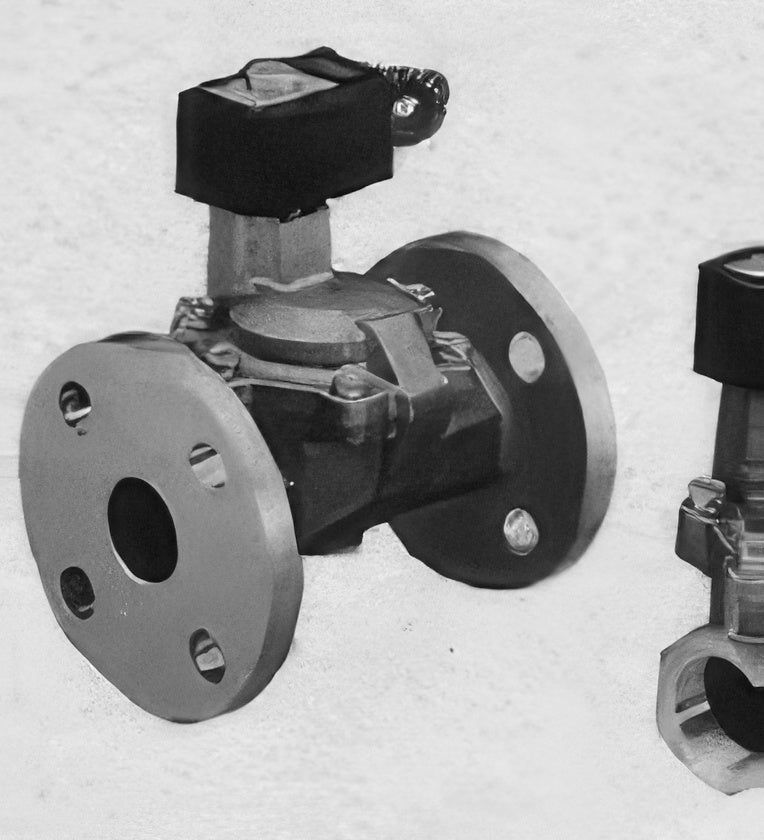

CKD MULTILEX Large Bore Pilot Operated 2-Port Solenoid Valve AP21, AP22 Series

CKD MULTILEX Large Bore Pilot Operated 2-Port Solenoid Valve AP21, AP22 Series

Large-bore pilot-operated 2-port solenoid valve from the MULTILEX range.

Key features

  • AP21 normally closed, AP22 normally open; Rc1-1/4 to Rc2 threaded or 32A to 50A flanged ports
  • Codes give the base port size; seal, coil option and voltage are added when ordering

Specifications

Min op. pressure diff. (MPa) 0.05
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-32A Port: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 3.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-32F Port: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-40A Port: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 4.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-40F Port: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 8 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-50A Port: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 6 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP21-50F Port: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 10 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-32A Port: Rc1-1/4 | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 3.5 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-32F Port: 32A flange | Orifice (mm): 35 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 7 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-40A Port: Rc1-1/2 | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 4.5 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-40F Port: 40A flange | Orifice (mm): 43 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 8 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-50A Port: Rc2 | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 6 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP22-50F Port: 50A flange | Orifice (mm): 53 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 10 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
