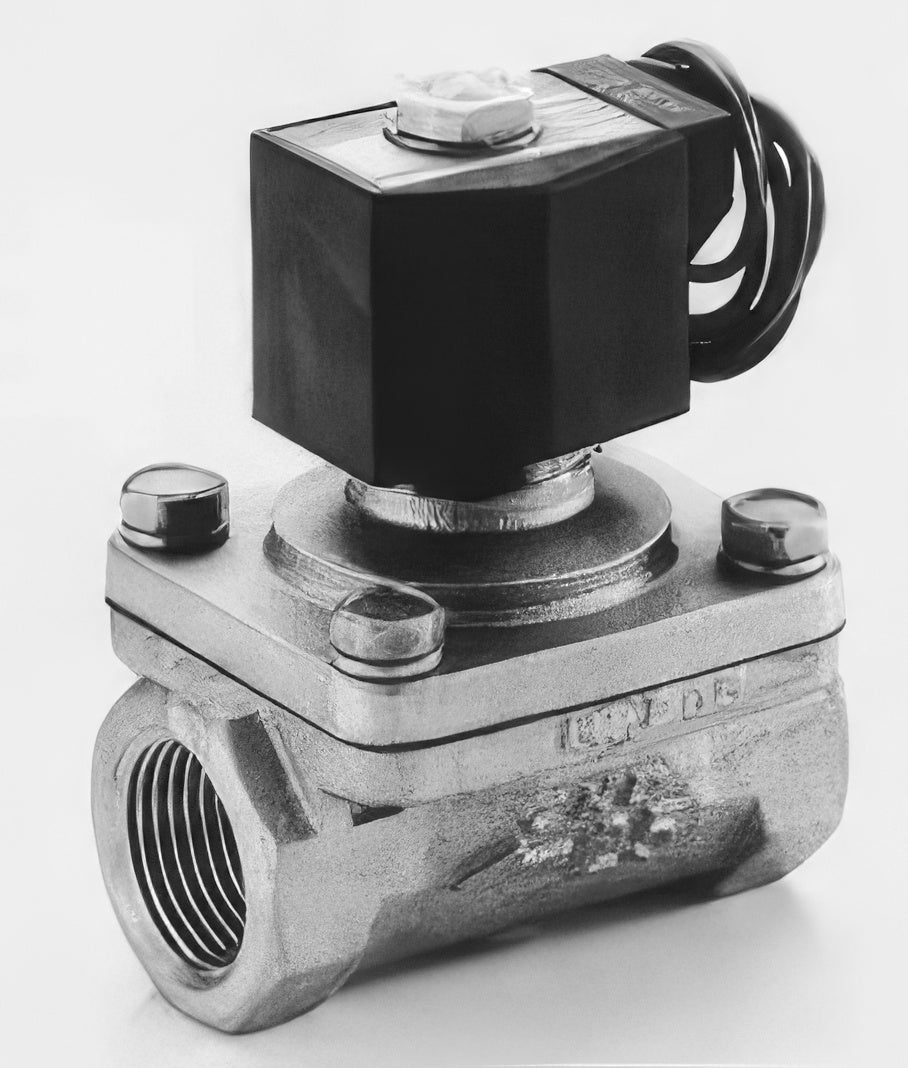

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve ADK11, ADK12 Series (Diaphragm)

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve ADK11, ADK12 Series (Diaphragm)

Pilot-kick diaphragm 2-port solenoid valve from the MULTILEX range, operating from zero pressure differential.

Key features

  • ADK11 normally closed, ADK12 normally open; Rc1/4 to Rc1 ports for air, water, kerosene and oil
  • Codes give the base port size; seal, coil option and voltage are added when ordering

Specifications

Min op. pressure diff. (MPa) 0
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK11-8A Port: Rc1/4 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Mass (kg): 0.65 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK11-10A Port: Rc3/8 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Mass (kg): 0.65 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-15A Port: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.0 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-20A Port: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.2 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-25A Port: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.6 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve ADK11, ADK12 Series (Diaphragm)

Brand CKD·Solenoid Valves

Available part numbers (5)

ADK11-8A, ADK11-10A, ADK12-15A, ADK12-20A, ADK12-25A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADK11-8APort: Rc1/4 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Mass (kg): 0.65 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK11-10APort: Rc3/8 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Mass (kg): 0.65 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-15APort: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.0 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-20APort: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.2 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
ADK12-25APort: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.6 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
