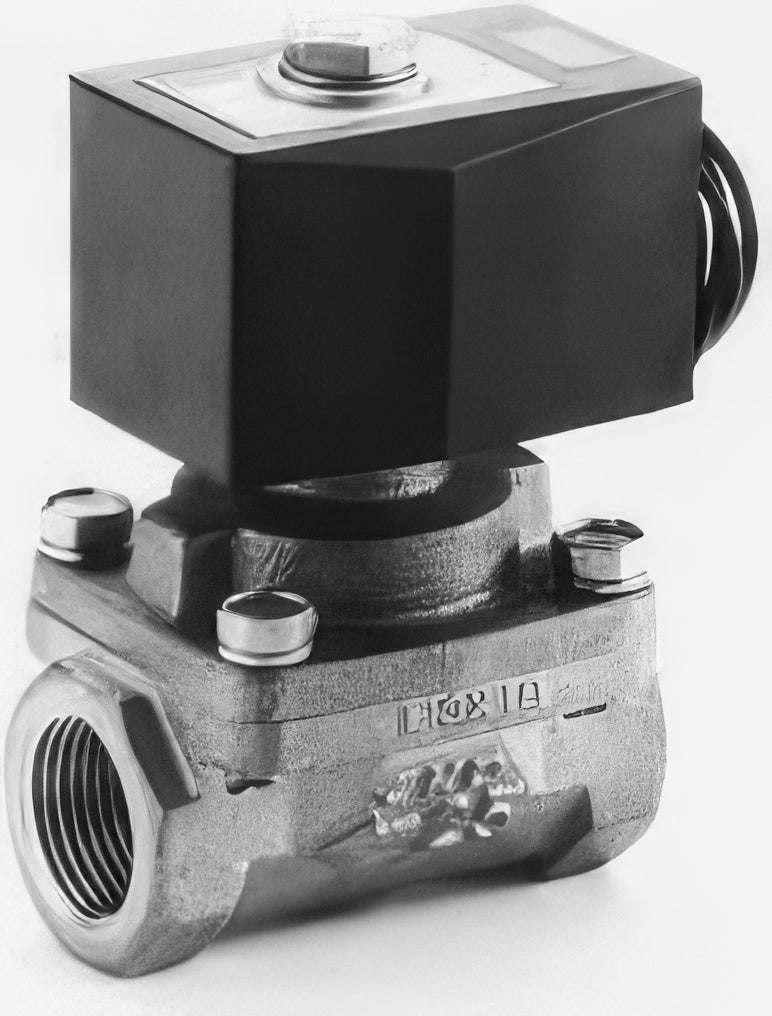

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve APK11 Series (NC)

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve APK11 Series (NC)

Pilot-kick 2-port solenoid valve from the MULTILEX range that operates from zero pressure differential.

Key features

  • Normally closed, Rc1/4 to Rc1 ports, for air, water, kerosene, oil and steam
  • Codes give the base port size; seal, coil option and voltage are added when ordering

Specifications

Min op. pressure diff. (MPa) 0
Max op. pressure diff. steam AC (MPa) 1.0
Type NC
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-8A Port: Rc1/4 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-10A Port: Rc3/8 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-15A Port: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.0 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-20A Port: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.3 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-25A Port: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Pilot Kick 2-Port Solenoid Valve APK11 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (5)

APK11-8A, APK11-10A, APK11-15A, APK11-20A, APK11-25A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APK11-8APort: Rc1/4 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-10APort: Rc3/8 | Orifice (mm): 12 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-15APort: Rc1/2 | Orifice (mm): 16 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.0 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-20APort: Rc3/4 | Orifice (mm): 23 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.3 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
APK11-25APort: Rc1 | Orifice (mm): 28 | Min op. pressure diff. (MPa): 0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.7 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
