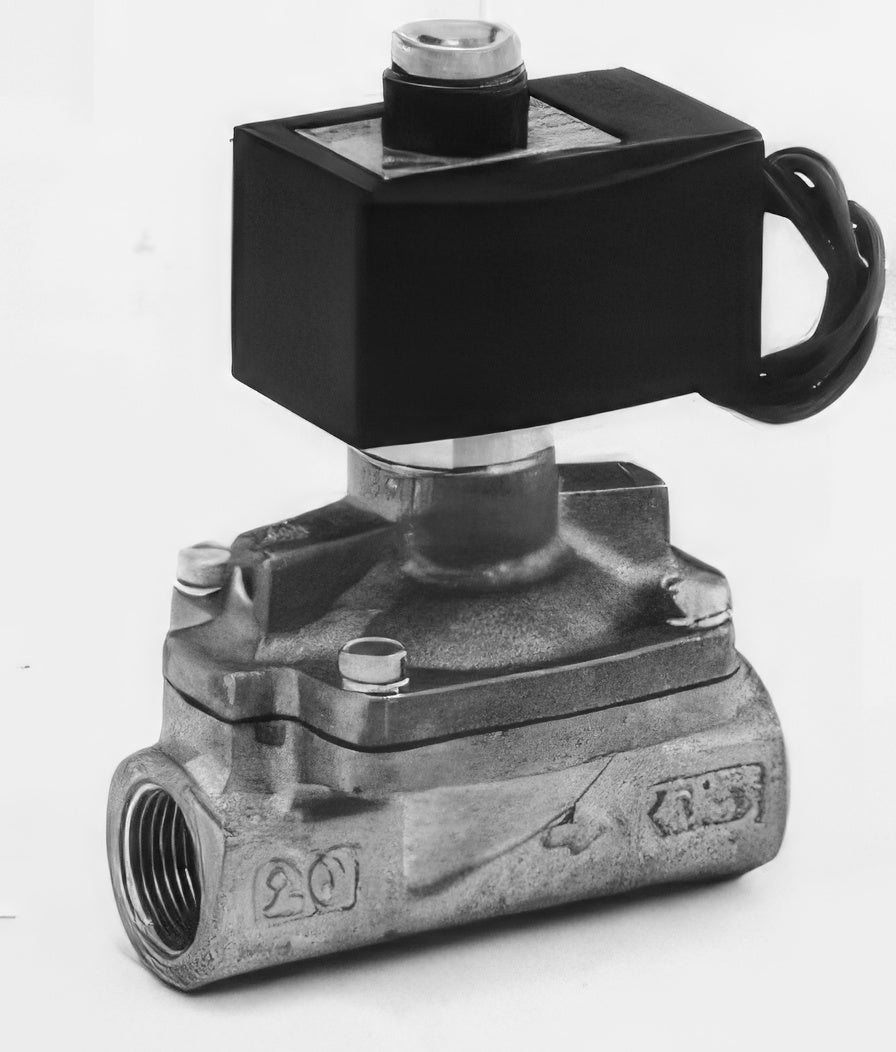

CKD MULTILEX Pilot Operated 2-Port Solenoid Valve AD11, AD12 Series (Diaphragm)

CKD MULTILEX Pilot Operated 2-Port Solenoid Valve AD11, AD12 Series (Diaphragm)

Pilot-operated diaphragm 2-port solenoid valve from the MULTILEX range.

Key features

  • AD11 normally closed, AD12 normally open; Rc1/4 to Rc1 ports, for air, water, kerosene and oil
  • Codes give the base port size; coil option and voltage are added when ordering

Specifications

Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD11-8A Port: Rc1/4 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.02 (0.05 with FKM seal) | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Mass (kg): 0.4 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD11-10A Port: Rc3/8 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.02 (0.05 with FKM seal) | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Mass (kg): 0.4 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD11-15A Port: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Mass (kg): 1.2 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD11-20A Port: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Mass (kg): 1.2 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD11-25A Port: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Mass (kg): 1.9 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD12-15A Port: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.2 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD12-20A Port: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.5 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AD12-25A Port: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.02 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Mass (kg): 1.9 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
