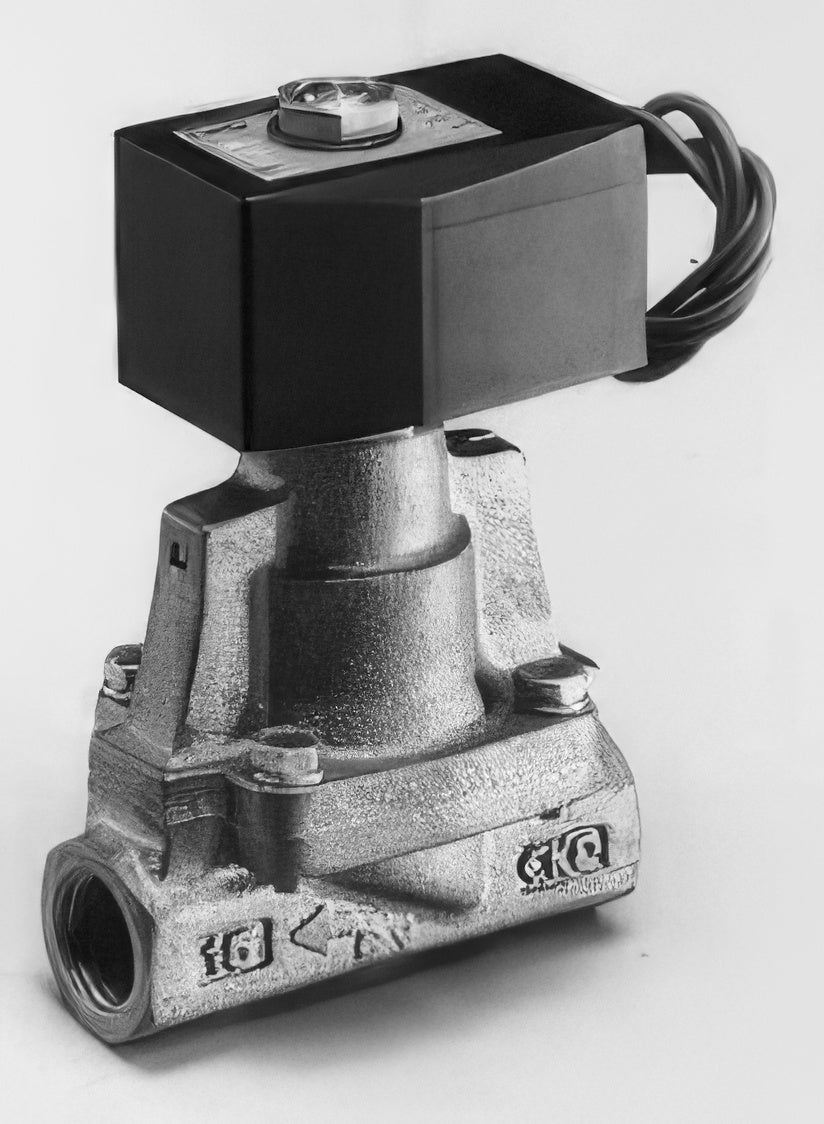

CKD MULTILEX Pilot Operated 2-Port Solenoid Valve AP11, AP12 Series

CKD MULTILEX Pilot Operated 2-Port Solenoid Valve AP11, AP12 Series

Pilot-operated 2-port solenoid valve from the MULTILEX multi-fluid range.

Key features

  • AP11 is normally closed, AP12 normally open; Rc1/4 to Rc1 ports
  • For air, water, kerosene and oil; steam with option
  • Codes give the base port size; seal, coil option and voltage are added when ordering

Specifications

Min op. pressure diff. (MPa) 0.05
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP11-8A Port: Rc1/4 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.9 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP11-10A Port: Rc3/8 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 0.9 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP11-15A Port: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.4 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP11-20A Port: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 1.8 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP11-25A Port: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 1.0 | Mass (kg): 2.5 | Type: NC | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP12-8A Port: Rc1/4 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 0.9 | Mass (kg): 1.0 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP12-10A Port: Rc3/8 | Orifice (mm): 10 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 0.9 | Mass (kg): 1.0 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP12-15A Port: Rc1/2 | Orifice (mm): 15 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 1.4 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP12-20A Port: Rc3/4 | Orifice (mm): 20 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 1.8 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AP12-25A Port: Rc1 | Orifice (mm): 25 | Min op. pressure diff. (MPa): 0.05 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Mass (kg): 2.5 | Type: NO | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
