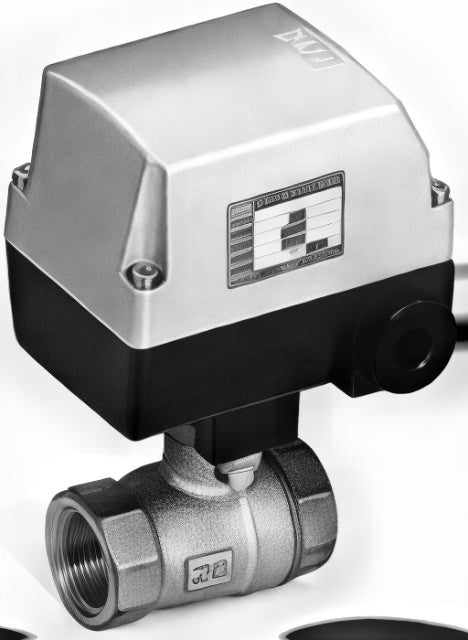

CKD MXB1/MXB1F Motorized 2-Port Ball Valve (Rc3/8-Rc2)

CKD MXB1/MXB1F Motorized 2-Port Ball Valve (Rc3/8-Rc2)

CKD MXB1 (standard bore) and MXB1F (full bore) are motor-driven 2-port ball valves for water, air and oil, Rc3/8 to Rc2.

Key features

  • Motor actuator with signal output leads (5-core 0.5 mm2 cable) as standard
  • Bronze or stainless body with PTFE or reinforced PTFE seat (MXB1F: bronze only)
  • AC100V, AC200V, DC12V or DC24V
  • Other options: T 3-core cable (no signal), B round terminal box, L/R lamp terminal box, M manual device
  • Manual device standard on sizes without option M

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa (size 50 / F40: 0 to 0.5 MPa)
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 80 C (no freezing)
Ambient temperature / humidity -10 to 50 C / 95% RH or less
Protection IPX3 rainproof (standard)
Mounting Actuator up, vertical to horizontal
Code format MXB1[F]-[size]-[body][option][M]-[voltage]
Source CKD Korea catalog CB-03-1SK-9, p. 809-815
MXB1-10-0-1 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-10-0-2 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-10-0-3 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-10-0-4 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-10-H-1 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-10-H-2 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-10-H-3 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-10-H-4 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-10-E-1 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-10-E-2 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-10-E-3 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-10-E-4 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-10-W-1 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-10-W-2 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-10-W-3 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-10-W-4 Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-15-0-1 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-15-0-2 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-15-0-3 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-15-0-4 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-15-H-1 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-15-H-2 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-15-H-3 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-15-H-4 Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-15-E-1 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-15-E-2 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-15-E-3 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-15-E-4 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-15-W-1 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-15-W-2 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-15-W-3 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-15-W-4 Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-20-0-1 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-20-0-2 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-20-0-3 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-20-0-4 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-20-H-1 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-20-H-2 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-20-H-3 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-20-H-4 Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-20-E-1 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-20-E-2 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-20-E-3 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-20-E-4 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-20-W-1 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-20-W-2 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-20-W-3 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-20-W-4 Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-25-0-1 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-25-0-2 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-25-0-3 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-25-0-4 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-25-H-1 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-25-H-2 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-25-H-3 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-25-H-4 Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-25-E-1 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-25-E-2 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-25-E-3 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-25-E-4 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-25-W-1 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-25-W-2 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-25-W-3 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-25-W-4 Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-32-0-1 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-32-0-2 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-32-0-3 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-32-0-4 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-32-H-1 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-32-H-2 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-32-H-3 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-32-H-4 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-32-E-1 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-32-E-2 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-32-E-3 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-32-E-4 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-32-W-1 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-32-W-2 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-32-W-3 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-32-W-4 Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-40-0-1 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-40-0-2 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-40-0-3 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-40-0-4 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-40-H-1 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-40-H-2 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-40-H-3 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-40-H-4 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-40-E-1 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-40-E-2 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-40-E-3 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-40-E-4 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-40-W-1 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-40-W-2 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-40-W-3 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-40-W-4 Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-50-0-1 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-50-0-2 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-50-0-3 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-50-0-4 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-50-H-1 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-50-H-2 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-50-H-3 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-50-H-4 Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-50-E-1 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-50-E-2 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-50-E-3 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-50-E-4 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-50-W-1 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-50-W-2 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-50-W-3 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-50-W-4 Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1F-15-0-1 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-15-0-2 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-15-0-3 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-15-0-4 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-15-H-1 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-15-H-2 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-15-H-3 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-15-H-4 Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-20-0-1 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-20-0-2 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-20-0-3 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-20-0-4 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-20-H-1 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-20-H-2 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-20-H-3 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-20-H-4 Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-25-0-1 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-25-0-2 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-25-0-3 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-25-0-4 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-25-H-1 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-25-H-2 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-25-H-3 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-25-H-4 Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-32-0-1 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-32-0-2 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-32-0-3 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-32-0-4 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-32-H-1 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-32-H-2 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-32-H-3 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-32-H-4 Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-40-0-1 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-40-0-2 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-40-0-3 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-40-0-4 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-40-H-1 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-40-H-2 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-40-H-3 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-40-H-4 Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-10 Legacy code: base model MXB1-10 (Rc3/8); order MXB1-10-[body]-[voltage]
MXB1-15 Legacy code: base model MXB1-15 (Rc1/2); order MXB1-15-[body]-[voltage]
MXB1-20 Legacy code: base model MXB1-20 (Rc3/4); order MXB1-20-[body]-[voltage]
MXB1-25 Legacy code: base model MXB1-25 (Rc1); order MXB1-25-[body]-[voltage]
MXB1-32 Legacy code: base model MXB1-32 (Rc1 1/4); order MXB1-32-[body]-[voltage]
MXB1-40 Legacy code: base model MXB1-40 (Rc1 1/2); order MXB1-40-[body]-[voltage]
MXB1-50 Legacy code: base model MXB1-50 (Rc2); order MXB1-50-[body]-[voltage]
MXB1F-15 Legacy code: base model MXB1F-15 (Rc1/2); order MXB1F-15-[body]-[voltage]
MXB1F-20 Legacy code: base model MXB1F-20 (Rc3/4); order MXB1F-20-[body]-[voltage]
MXB1F-25 Legacy code: base model MXB1F-25 (Rc1); order MXB1F-25-[body]-[voltage]
MXB1F-32 Legacy code: base model MXB1F-32 (Rc1 1/4); order MXB1F-32-[body]-[voltage]
MXB1F-40 Legacy code: base model MXB1F-40 (Rc1 1/2); order MXB1F-40-[body]-[voltage]
Ball ValvesCKD
164 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MXB1/MXB1F Motorized 2-Port Ball Valve (Rc3/8-Rc2)

Brand CKD·Ball Valves

Available part numbers (164)

MXB1-10-0-1, MXB1-10-0-2, MXB1-10-0-3, MXB1-10-0-4, MXB1-10-H-1, MXB1-10-H-2, MXB1-10-H-3, MXB1-10-H-4, MXB1-10-E-1, MXB1-10-E-2 + 154 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXB1-10-0-1Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-10-0-2Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-10-0-3Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-10-0-4Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-10-H-1Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-10-H-2Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-10-H-3Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-10-H-4Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-10-E-1Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-10-E-2Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-10-E-3Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-10-E-4Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-10-W-1Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-10-W-2Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-10-W-3Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-10-W-4Bore: Full bore (size 10) | Port size: Rc3/8 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-15-0-1Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-15-0-2Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-15-0-3Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-15-0-4Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-15-H-1Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-15-H-2Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-15-H-3Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-15-H-4Bore: Standard bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-15-E-1Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-15-E-2Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-15-E-3Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-15-E-4Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-15-W-1Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-15-W-2Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-15-W-3Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-15-W-4Bore: Standard bore | Port size: Rc1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-20-0-1Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-20-0-2Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-20-0-3Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-20-0-4Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-20-H-1Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-20-H-2Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-20-H-3Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-20-H-4Bore: Standard bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-20-E-1Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-20-E-2Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-20-E-3Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-20-E-4Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-20-W-1Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-20-W-2Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-20-W-3Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-20-W-4Bore: Standard bore | Port size: Rc3/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-25-0-1Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-25-0-2Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-25-0-3Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-25-0-4Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-25-H-1Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-25-H-2Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-25-H-3Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-25-H-4Bore: Standard bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-25-E-1Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-25-E-2Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-25-E-3Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-25-E-4Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-25-W-1Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-25-W-2Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-25-W-3Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-25-W-4Bore: Standard bore | Port size: Rc1 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-32-0-1Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-32-0-2Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-32-0-3Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-32-0-4Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-32-H-1Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-32-H-2Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-32-H-3Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-32-H-4Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-32-E-1Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-32-E-2Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-32-E-3Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-32-E-4Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-32-W-1Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-32-W-2Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-32-W-3Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-32-W-4Bore: Standard bore | Port size: Rc1 1/4 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-40-0-1Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-40-0-2Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-40-0-3Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-40-0-4Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-40-H-1Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-40-H-2Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-40-H-3Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-40-H-4Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-40-E-1Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-40-E-2Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-40-E-3Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-40-E-4Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-40-W-1Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-40-W-2Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-40-W-3Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-40-W-4Bore: Standard bore | Port size: Rc1 1/2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1-50-0-1Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1-50-0-2Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1-50-0-3Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1-50-0-4Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1-50-H-1Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1-50-H-2Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1-50-H-3Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1-50-H-4Bore: Standard bore | Port size: Rc2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-50-E-1Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: AC100V
MXB1-50-E-2Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: AC200V
MXB1-50-E-3Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: DC24V
MXB1-50-E-4Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / PTFE | Voltage: DC12V
MXB1-50-W-1Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: AC100V
MXB1-50-W-2Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: AC200V
MXB1-50-W-3Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: DC24V
MXB1-50-W-4Bore: Standard bore | Port size: Rc2 | Body seat: Stainless / reinforced PTFE | Voltage: DC12V
MXB1F-15-0-1Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-15-0-2Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-15-0-3Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-15-0-4Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-15-H-1Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-15-H-2Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-15-H-3Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-15-H-4Bore: Full bore | Port size: Rc1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-20-0-1Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-20-0-2Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-20-0-3Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-20-0-4Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-20-H-1Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-20-H-2Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-20-H-3Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-20-H-4Bore: Full bore | Port size: Rc3/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-25-0-1Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-25-0-2Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-25-0-3Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-25-0-4Bore: Full bore | Port size: Rc1 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-25-H-1Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-25-H-2Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-25-H-3Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-25-H-4Bore: Full bore | Port size: Rc1 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-32-0-1Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-32-0-2Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-32-0-3Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-32-0-4Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-32-H-1Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-32-H-2Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-32-H-3Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-32-H-4Bore: Full bore | Port size: Rc1 1/4 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1F-40-0-1Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC100V
MXB1F-40-0-2Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: AC200V
MXB1F-40-0-3Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC24V
MXB1F-40-0-4Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / PTFE | Voltage: DC12V
MXB1F-40-H-1Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC100V
MXB1F-40-H-2Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: AC200V
MXB1F-40-H-3Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC24V
MXB1F-40-H-4Bore: Full bore | Port size: Rc1 1/2 | Body seat: Bronze / reinforced PTFE | Voltage: DC12V
MXB1-10Legacy code: base model MXB1-10 (Rc3/8); order MXB1-10-[body]-[voltage]
MXB1-15Legacy code: base model MXB1-15 (Rc1/2); order MXB1-15-[body]-[voltage]
MXB1-20Legacy code: base model MXB1-20 (Rc3/4); order MXB1-20-[body]-[voltage]
MXB1-25Legacy code: base model MXB1-25 (Rc1); order MXB1-25-[body]-[voltage]
MXB1-32Legacy code: base model MXB1-32 (Rc1 1/4); order MXB1-32-[body]-[voltage]
MXB1-40Legacy code: base model MXB1-40 (Rc1 1/2); order MXB1-40-[body]-[voltage]
MXB1-50Legacy code: base model MXB1-50 (Rc2); order MXB1-50-[body]-[voltage]
MXB1F-15Legacy code: base model MXB1F-15 (Rc1/2); order MXB1F-15-[body]-[voltage]
MXB1F-20Legacy code: base model MXB1F-20 (Rc3/4); order MXB1F-20-[body]-[voltage]
MXB1F-25Legacy code: base model MXB1F-25 (Rc1); order MXB1F-25-[body]-[voltage]
MXB1F-32Legacy code: base model MXB1F-32 (Rc1 1/4); order MXB1F-32-[body]-[voltage]
MXB1F-40Legacy code: base model MXB1F-40 (Rc1 1/2); order MXB1F-40-[body]-[voltage]

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
