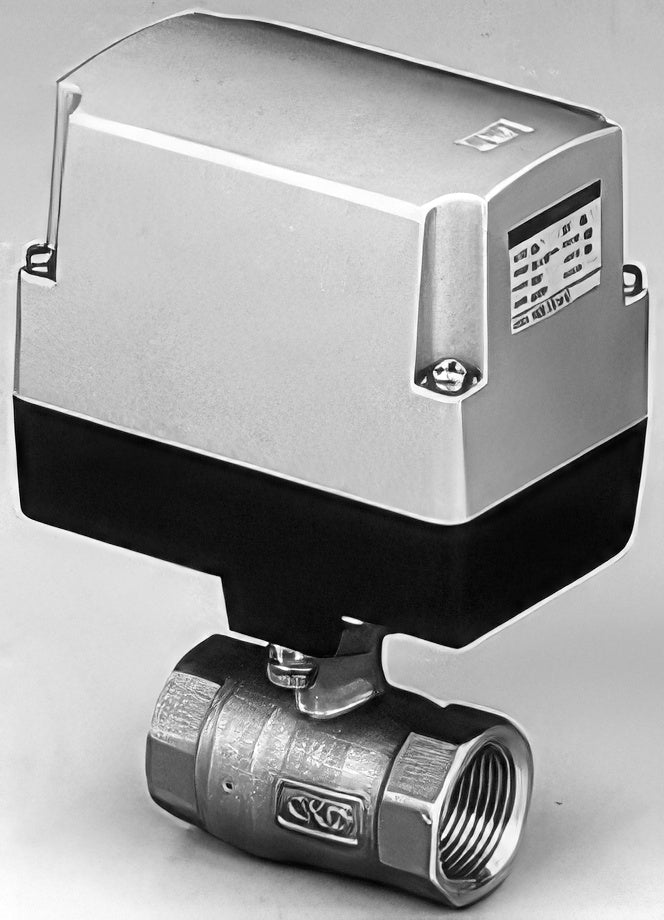

CKD MXBC2/MXGC2 Proportional Control Motorized Ball Valve

CKD MXBC2/MXGC2 Proportional Control Motorized Ball Valve

CKD MXBC2 (2-port) and MXGC2 (3-port) are proportional-control motorized ball valves driven by a 0(4)-20 mA signal for water, Rc3/8 to Rc1.

Key features

  • Proportional opening control by DC 0(4)-20 mA input (240 ohm input impedance)
  • Resolution 1.3% or less; DC24V supply
  • Bronze or stainless body with PTFE seat
  • 2-port MXBC2 (Rc3/8-Rc1) and 3-port mixing MXGC2 (Rc1/2-Rc1)

Specifications

Fluid Water
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 80 C (no freezing)
Rated voltage DC24V (code 3), +/-5%
Input signal DC 0(4)-20 mA
Motor duty 3 s operation / 5 s stop
Code format MX[B/G]C2-[size]-[0/E]-3
Source CKD Korea catalog CB-03-1SK-9, p. 844-847
MXBC2-10-0-3 Ports: 2-port | Port size: Rc3/8 | Body seat: Bronze / PTFE
MXBC2-10-E-3 Ports: 2-port | Port size: Rc3/8 | Body seat: Stainless / PTFE
MXBC2-15-0-3 Ports: 2-port | Port size: Rc1/2 | Body seat: Bronze / PTFE
MXBC2-15-E-3 Ports: 2-port | Port size: Rc1/2 | Body seat: Stainless / PTFE
MXBC2-20-0-3 Ports: 2-port | Port size: Rc3/4 | Body seat: Bronze / PTFE
MXBC2-20-E-3 Ports: 2-port | Port size: Rc3/4 | Body seat: Stainless / PTFE
MXBC2-25-0-3 Ports: 2-port | Port size: Rc1 | Body seat: Bronze / PTFE
MXBC2-25-E-3 Ports: 2-port | Port size: Rc1 | Body seat: Stainless / PTFE
MXGC2-15-0-3 Ports: 3-port (mixing) | Port size: Rc1/2 | Body seat: Bronze / PTFE
MXGC2-15-E-3 Ports: 3-port (mixing) | Port size: Rc1/2 | Body seat: Stainless / PTFE
MXGC2-20-0-3 Ports: 3-port (mixing) | Port size: Rc3/4 | Body seat: Bronze / PTFE
MXGC2-20-E-3 Ports: 3-port (mixing) | Port size: Rc3/4 | Body seat: Stainless / PTFE
MXGC2-25-0-3 Ports: 3-port (mixing) | Port size: Rc1 | Body seat: Bronze / PTFE
MXGC2-25-E-3 Ports: 3-port (mixing) | Port size: Rc1 | Body seat: Stainless / PTFE
MXBC2-10 Legacy code: base model MXBC2-10 (Rc3/8); order MXBC2-10-[0/E]-3
MXBC2-15 Legacy code: base model MXBC2-15 (Rc1/2); order MXBC2-15-[0/E]-3
MXBC2-20 Legacy code: base model MXBC2-20 (Rc3/4); order MXBC2-20-[0/E]-3
MXBC2-25 Legacy code: base model MXBC2-25 (Rc1); order MXBC2-25-[0/E]-3
MXGC2-15 Legacy code: base model MXGC2-15 (Rc1/2); order MXGC2-15-[0/E]-3
MXGC2-20 Legacy code: base model MXGC2-20 (Rc3/4); order MXGC2-20-[0/E]-3
MXGC2-25 Legacy code: base model MXGC2-25 (Rc1); order MXGC2-25-[0/E]-3
Ball ValvesCKD
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MXBC2/MXGC2 Proportional Control Motorized Ball Valve

Brand CKD·Ball Valves

Available part numbers (21)

MXBC2-10-0-3, MXBC2-10-E-3, MXBC2-15-0-3, MXBC2-15-E-3, MXBC2-20-0-3, MXBC2-20-E-3, MXBC2-25-0-3, MXBC2-25-E-3, MXGC2-15-0-3, MXGC2-15-E-3 + 11 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXBC2-10-0-3Ports: 2-port | Port size: Rc3/8 | Body seat: Bronze / PTFE
MXBC2-10-E-3Ports: 2-port | Port size: Rc3/8 | Body seat: Stainless / PTFE
MXBC2-15-0-3Ports: 2-port | Port size: Rc1/2 | Body seat: Bronze / PTFE
MXBC2-15-E-3Ports: 2-port | Port size: Rc1/2 | Body seat: Stainless / PTFE
MXBC2-20-0-3Ports: 2-port | Port size: Rc3/4 | Body seat: Bronze / PTFE
MXBC2-20-E-3Ports: 2-port | Port size: Rc3/4 | Body seat: Stainless / PTFE
MXBC2-25-0-3Ports: 2-port | Port size: Rc1 | Body seat: Bronze / PTFE
MXBC2-25-E-3Ports: 2-port | Port size: Rc1 | Body seat: Stainless / PTFE
MXGC2-15-0-3Ports: 3-port (mixing) | Port size: Rc1/2 | Body seat: Bronze / PTFE
MXGC2-15-E-3Ports: 3-port (mixing) | Port size: Rc1/2 | Body seat: Stainless / PTFE
MXGC2-20-0-3Ports: 3-port (mixing) | Port size: Rc3/4 | Body seat: Bronze / PTFE
MXGC2-20-E-3Ports: 3-port (mixing) | Port size: Rc3/4 | Body seat: Stainless / PTFE
MXGC2-25-0-3Ports: 3-port (mixing) | Port size: Rc1 | Body seat: Bronze / PTFE
MXGC2-25-E-3Ports: 3-port (mixing) | Port size: Rc1 | Body seat: Stainless / PTFE
MXBC2-10Legacy code: base model MXBC2-10 (Rc3/8); order MXBC2-10-[0/E]-3
MXBC2-15Legacy code: base model MXBC2-15 (Rc1/2); order MXBC2-15-[0/E]-3
MXBC2-20Legacy code: base model MXBC2-20 (Rc3/4); order MXBC2-20-[0/E]-3
MXBC2-25Legacy code: base model MXBC2-25 (Rc1); order MXBC2-25-[0/E]-3
MXGC2-15Legacy code: base model MXGC2-15 (Rc1/2); order MXGC2-15-[0/E]-3
MXGC2-20Legacy code: base model MXGC2-20 (Rc3/4); order MXGC2-20-[0/E]-3
MXGC2-25Legacy code: base model MXGC2-25 (Rc1); order MXGC2-25-[0/E]-3
