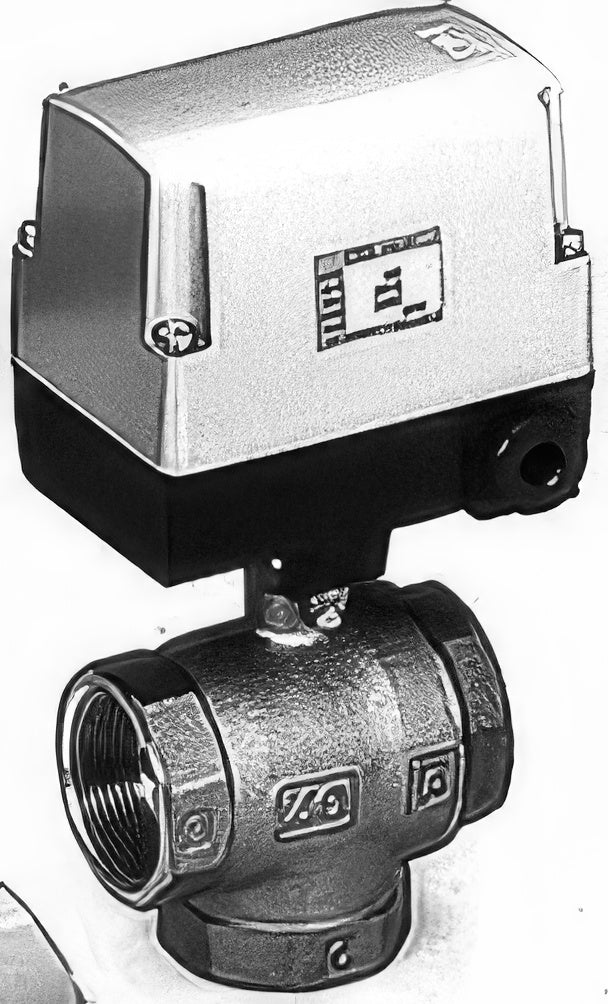

CKD MXG1 Motorized 3-Port Ball Valve (Rc1/2-Rc2)

CKD MXG1 is a motor-driven 3-port (90 degree switching) ball valve for water, air and oil, Rc1/2 to Rc2.

Key features

Motor actuator with signal output leads as standard
Bronze or stainless body, PTFE or reinforced PTFE seat
AC100V, AC200V, DC12V or DC24V
Options: T 3-core cable, B round terminal box, L/R lamp terminal box
Option K mixing type (90 deg switching, half response time) to avoid pump dead-head

Specifications

Fluid	Water, air, oil (500 mm2/s or less)
Operating pressure	0 to 1.0 MPa (size 50 / F40: 0 to 0.5 MPa)
Proof pressure	2.0 MPa (water)
Fluid temperature	0 to 80 C (no freezing)
Ambient temperature / humidity	-10 to 50 C / 95% RH or less
Protection	IPX3 rainproof (standard)
Mounting	Actuator up, vertical to horizontal
Pressurizing direction	C port only
Code format	MXG1-[size]-[body][option]-[voltage]
Source	CKD Korea catalog CB-03-1SK-9, p. 816-819

MXG1-15-0-1		Port size: Rc1/2 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-15-0-2		Port size: Rc1/2 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-15-0-3		Port size: Rc1/2 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-15-0-4		Port size: Rc1/2 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-15-H-1		Port size: Rc1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-15-H-2		Port size: Rc1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-15-H-3		Port size: Rc1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-15-H-4		Port size: Rc1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-15-E-1		Port size: Rc1/2 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-15-E-2		Port size: Rc1/2 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-15-E-3		Port size: Rc1/2 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-15-E-4		Port size: Rc1/2 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-15-W-1		Port size: Rc1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-15-W-2		Port size: Rc1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-15-W-3		Port size: Rc1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-15-W-4		Port size: Rc1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-20-0-1		Port size: Rc3/4 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-20-0-2		Port size: Rc3/4 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-20-0-3		Port size: Rc3/4 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-20-0-4		Port size: Rc3/4 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-20-H-1		Port size: Rc3/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-20-H-2		Port size: Rc3/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-20-H-3		Port size: Rc3/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-20-H-4		Port size: Rc3/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-20-E-1		Port size: Rc3/4 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-20-E-2		Port size: Rc3/4 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-20-E-3		Port size: Rc3/4 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-20-E-4		Port size: Rc3/4 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-20-W-1		Port size: Rc3/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-20-W-2		Port size: Rc3/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-20-W-3		Port size: Rc3/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-20-W-4		Port size: Rc3/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-25-0-1		Port size: Rc1 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-25-0-2		Port size: Rc1 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-25-0-3		Port size: Rc1 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-25-0-4		Port size: Rc1 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-25-H-1		Port size: Rc1 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-25-H-2		Port size: Rc1 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-25-H-3		Port size: Rc1 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-25-H-4		Port size: Rc1 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-25-E-1		Port size: Rc1 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-25-E-2		Port size: Rc1 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-25-E-3		Port size: Rc1 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-25-E-4		Port size: Rc1 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-25-W-1		Port size: Rc1 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-25-W-2		Port size: Rc1 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-25-W-3		Port size: Rc1 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-25-W-4		Port size: Rc1 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-32-0-1		Port size: Rc1 1/4 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-32-0-2		Port size: Rc1 1/4 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-32-0-3		Port size: Rc1 1/4 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-32-0-4		Port size: Rc1 1/4 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-32-H-1		Port size: Rc1 1/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-32-H-2		Port size: Rc1 1/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-32-H-3		Port size: Rc1 1/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-32-H-4		Port size: Rc1 1/4 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-32-E-1		Port size: Rc1 1/4 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-32-E-2		Port size: Rc1 1/4 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-32-E-3		Port size: Rc1 1/4 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-32-E-4		Port size: Rc1 1/4 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-32-W-1		Port size: Rc1 1/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-32-W-2		Port size: Rc1 1/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-32-W-3		Port size: Rc1 1/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-32-W-4		Port size: Rc1 1/4 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-40-0-1		Port size: Rc1 1/2 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-40-0-2		Port size: Rc1 1/2 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-40-0-3		Port size: Rc1 1/2 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-40-0-4		Port size: Rc1 1/2 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-40-H-1		Port size: Rc1 1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-40-H-2		Port size: Rc1 1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-40-H-3		Port size: Rc1 1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-40-H-4		Port size: Rc1 1/2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-40-E-1		Port size: Rc1 1/2 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-40-E-2		Port size: Rc1 1/2 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-40-E-3		Port size: Rc1 1/2 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-40-E-4		Port size: Rc1 1/2 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-40-W-1		Port size: Rc1 1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-40-W-2		Port size: Rc1 1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-40-W-3		Port size: Rc1 1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-40-W-4		Port size: Rc1 1/2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-50-0-1		Port size: Rc2 \| Body seat: Bronze / PTFE \| Voltage: AC100V
MXG1-50-0-2		Port size: Rc2 \| Body seat: Bronze / PTFE \| Voltage: AC200V
MXG1-50-0-3		Port size: Rc2 \| Body seat: Bronze / PTFE \| Voltage: DC24V
MXG1-50-0-4		Port size: Rc2 \| Body seat: Bronze / PTFE \| Voltage: DC12V
MXG1-50-H-1		Port size: Rc2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC100V
MXG1-50-H-2		Port size: Rc2 \| Body seat: Bronze / reinforced PTFE \| Voltage: AC200V
MXG1-50-H-3		Port size: Rc2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC24V
MXG1-50-H-4		Port size: Rc2 \| Body seat: Bronze / reinforced PTFE \| Voltage: DC12V
MXG1-50-E-1		Port size: Rc2 \| Body seat: Stainless / PTFE \| Voltage: AC100V
MXG1-50-E-2		Port size: Rc2 \| Body seat: Stainless / PTFE \| Voltage: AC200V
MXG1-50-E-3		Port size: Rc2 \| Body seat: Stainless / PTFE \| Voltage: DC24V
MXG1-50-E-4		Port size: Rc2 \| Body seat: Stainless / PTFE \| Voltage: DC12V
MXG1-50-W-1		Port size: Rc2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC100V
MXG1-50-W-2		Port size: Rc2 \| Body seat: Stainless / reinforced PTFE \| Voltage: AC200V
MXG1-50-W-3		Port size: Rc2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC24V
MXG1-50-W-4		Port size: Rc2 \| Body seat: Stainless / reinforced PTFE \| Voltage: DC12V
MXG1-15		Legacy code: base model MXG1-15 (Rc1/2); order MXG1-15-[body]-[voltage]
MXG1-20		Legacy code: base model MXG1-20 (Rc3/4); order MXG1-20-[body]-[voltage]
MXG1-25		Legacy code: base model MXG1-25 (Rc1); order MXG1-25-[body]-[voltage]
MXG1-32		Legacy code: base model MXG1-32 (Rc1 1/4); order MXG1-32-[body]-[voltage]
MXG1-40		Legacy code: base model MXG1-40 (Rc1 1/2); order MXG1-40-[body]-[voltage]
MXG1-50		Legacy code: base model MXG1-50 (Rc2); order MXG1-50-[body]-[voltage]
