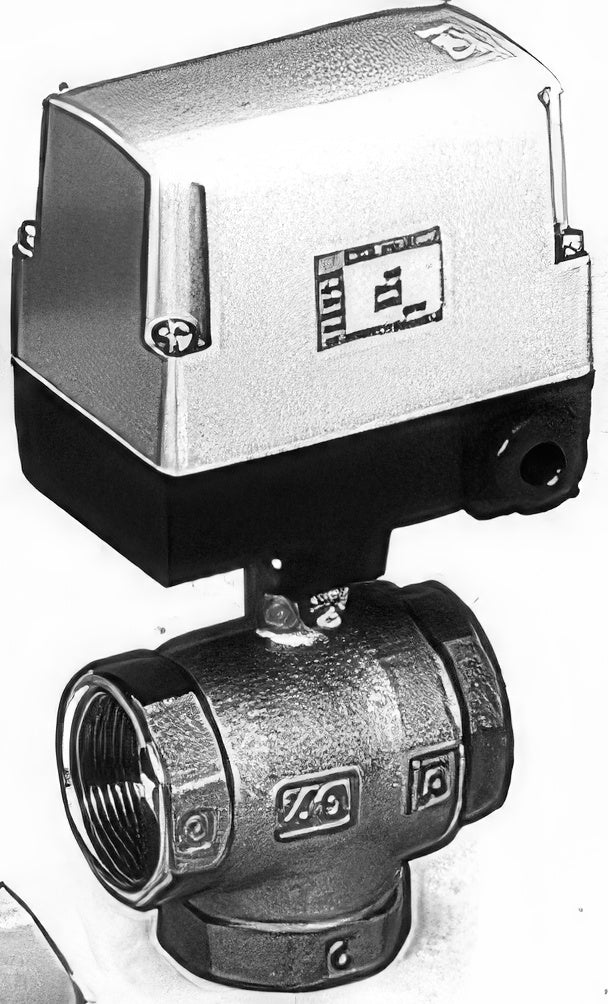

CKD MXG1D Motorized 3-Port Ball Valve with Relay (Rc1/2-Rc2)

CKD MXG1D Motorized 3-Port Ball Valve with Relay (Rc1/2-Rc2)

CKD MXG1D is a relay-equipped motor-driven 3-port ball valve for water, air and oil, Rc1/2 to Rc2.

Key features

  • Built-in relay version of MXG1
  • Bronze or stainless body, PTFE or reinforced PTFE seat
  • AC100V or AC200V
  • Options: T, B, L/R lamp terminal box, K mixing type
  • Pressurization at C port only

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa (size 50 / F40: 0 to 0.5 MPa)
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 80 C (no freezing)
Ambient temperature / humidity -10 to 50 C / 95% RH or less
Protection IPX3 rainproof (standard)
Mounting Actuator up, vertical to horizontal
Pressurizing direction C port only
Code format MXG1D-[size]-[body][option]-[voltage]
Source CKD Korea catalog CB-03-1SK-9, p. 824-827
