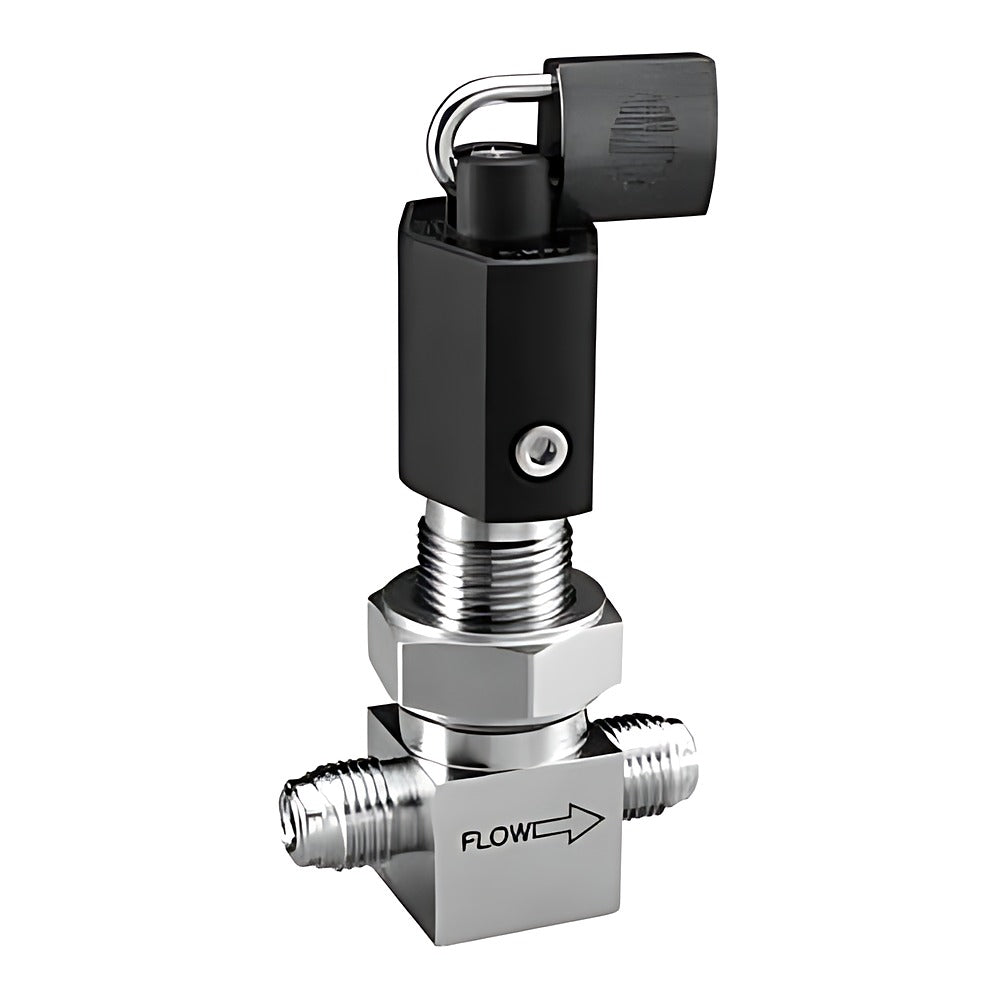

CKD OGD/MGD R Manual Valve Body Options (3-Port/Weld, Made to Order)

CKD OGD/MGD R Manual Valve Body Options (3-Port/Weld, Made to Order)

Made-to-order body configurations of the CKD OGD R and MGD R process gas manual valves: weld and bearing-nut fittings, mixed ports, 3-port branch valves and coloured handles.

Key features

  • 2-port valves with JXR female (with bearing), auto-weld or mixed male/female fittings
  • 3-port branch valves with F/M/W port combinations
  • Handle colours: OGD black/red/blue/yellow; MGD silver (standard) or black/blue/yellow/red
  • Safety options (lock mechanism, double action) available on request
  • Free port combinations beyond the listed sets available on request

Specifications

Fluid Inert gas / process gas
Diaphragm Ni-Co alloy metal diaphragm
Wetted body material SUS316L, electropolished
Valve seat PCTFE
Operating pressure 1.3x10^-6 Pa(abs) to 0.99 MPa(G)
Seat leakage 1.0x10^-10 Pa.m3/s (He) or less
Availability Made to order
Source CKD Korea catalog CB-035K, p. 48-53
OGD10R-4RJ-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD10R-4RJ-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD10R-4RJ-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD10R-4RJ-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD10R-4W-K Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD10R-4W-B Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD10R-4W-Y Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD10R-4W-R Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD10R-4RJ-MF-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD10R-4RJ-MF-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD10R-4RJ-MF-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD10R-4RJ-MF-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD10R-4R-MF-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD10R-4R-MF-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD10R-4R-MF-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD10R-4R-MF-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD10R-4RJ-FM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD10R-4RJ-FM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD10R-4RJ-FM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD10R-4RJ-FM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD10R-4R-FM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD10R-4R-FM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD10R-4R-FM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD10R-4R-FM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD10R-4RJ-FFF-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
OGD10R-4RJ-FFF-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD10R-4RJ-FFF-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD10R-4RJ-FFF-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
OGD10R-4R-FFF-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
OGD10R-4R-FFF-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD10R-4R-FFF-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD10R-4R-FFF-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
OGD10R-4RJ-FFM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
OGD10R-4RJ-FFM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD10R-4RJ-FFM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD10R-4RJ-FFM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
OGD10R-4R-FFM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
OGD10R-4R-FFM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD10R-4R-FFM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD10R-4R-FFM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
OGD10R-4RJ-FMM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
OGD10R-4RJ-FMM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD10R-4RJ-FMM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD10R-4RJ-FMM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
OGD10R-4R-FMM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
OGD10R-4R-FMM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD10R-4R-FMM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD10R-4R-FMM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
OGD10R-4RM-MMM-K Type: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
OGD10R-4RM-MMM-B Type: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
OGD10R-4RM-MMM-Y Type: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
OGD10R-4RM-MMM-R Type: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
OGD10R-4W-WWW-K Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
OGD10R-4W-WWW-B Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
OGD10R-4W-WWW-Y Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
OGD10R-4W-WWW-R Type: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
OGD20R-6RJ-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD20R-6RJ-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-6RJ-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-6RJ-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD20R-6W-K Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-6W-B Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-6W-Y Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-6W-R Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-6RJ-MF-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-6RJ-MF-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-6RJ-MF-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-6RJ-MF-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-6R-MF-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-6R-MF-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-6R-MF-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-6R-MF-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-6RJ-FM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-6RJ-FM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-6RJ-FM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-6RJ-FM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-6R-FM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-6R-FM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-6R-FM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-6R-FM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-6RJ-FFF-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
OGD20R-6RJ-FFF-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD20R-6RJ-FFF-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD20R-6RJ-FFF-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
OGD20R-6R-FFF-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
OGD20R-6R-FFF-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD20R-6R-FFF-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD20R-6R-FFF-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
OGD20R-6RJ-FFM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
OGD20R-6RJ-FFM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD20R-6RJ-FFM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD20R-6RJ-FFM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
OGD20R-6R-FFM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
OGD20R-6R-FFM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD20R-6R-FFM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD20R-6R-FFM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
OGD20R-6RJ-FMM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
OGD20R-6RJ-FMM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD20R-6RJ-FMM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD20R-6RJ-FMM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
OGD20R-6R-FMM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
OGD20R-6R-FMM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD20R-6R-FMM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD20R-6R-FMM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
OGD20R-6RM-MMM-K Type: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
OGD20R-6RM-MMM-B Type: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
OGD20R-6RM-MMM-Y Type: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
OGD20R-6RM-MMM-R Type: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
OGD20R-6W-WWW-K Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
OGD20R-6W-WWW-B Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
OGD20R-6W-WWW-Y Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
OGD20R-6W-WWW-R Type: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
OGD20R-8RJ-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8RJ-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8RJ-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8RJ-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8R-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8R-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8R-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8R-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8RM-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8RM-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8RM-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8RM-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8W-K Type: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8W-B Type: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8W-Y Type: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8W-R Type: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8S-K Type: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8S-B Type: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8S-Y Type: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8S-R Type: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8RJ-MF-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-8RJ-MF-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-8RJ-MF-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-8RJ-MF-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-8R-MF-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-8R-MF-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-8R-MF-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-8R-MF-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-8RJ-FM-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-8RJ-FM-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-8RJ-FM-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-8RJ-FM-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-8R-FM-K Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-8R-FM-B Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-8R-FM-Y Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-8R-FM-R Type: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4RJ Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD10R-4RJ-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4RJ-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4RJ-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4RJ-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4R-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4R-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4R-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4R-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4RM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4RM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4RM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4RM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4W Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD10R-4W-K Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4W-B Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4W-Y Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4W-R Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4S-K Type: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4S-B Type: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4S-Y Type: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4S-R Type: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4RJ-MF Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD10R-4RJ-MF-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD10R-4RJ-MF-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD10R-4RJ-MF-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD10R-4RJ-MF-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD10R-4R-MF Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD10R-4R-MF-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD10R-4R-MF-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD10R-4R-MF-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD10R-4R-MF-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD10R-4RJ-FM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD10R-4RJ-FM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD10R-4RJ-FM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD10R-4RJ-FM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD10R-4RJ-FM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4R-FM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD10R-4R-FM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD10R-4R-FM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD10R-4R-FM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD10R-4R-FM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4RJ-FFF Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD10R-4RJ-FFF-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
MGD10R-4RJ-FFF-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD10R-4RJ-FFF-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD10R-4RJ-FFF-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
MGD10R-4R-FFF Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD10R-4R-FFF-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
MGD10R-4R-FFF-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD10R-4R-FFF-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD10R-4R-FFF-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
MGD10R-4RJ-FFM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD10R-4RJ-FFM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
MGD10R-4RJ-FFM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD10R-4RJ-FFM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD10R-4RJ-FFM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
MGD10R-4R-FFM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD10R-4R-FFM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
MGD10R-4R-FFM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD10R-4R-FFM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD10R-4R-FFM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
MGD10R-4RJ-FMM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD10R-4RJ-FMM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
MGD10R-4RJ-FMM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD10R-4RJ-FMM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD10R-4RJ-FMM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
MGD10R-4R-FMM Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD10R-4R-FMM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
MGD10R-4R-FMM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD10R-4R-FMM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD10R-4R-FMM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
MGD10R-4RM-MMM Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Silver
MGD10R-4RM-MMM-K Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
MGD10R-4RM-MMM-B Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
MGD10R-4RM-MMM-Y Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
MGD10R-4RM-MMM-R Type: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
MGD10R-4W-WWW Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Silver
MGD10R-4W-WWW-K Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
MGD10R-4W-WWW-B Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
MGD10R-4W-WWW-Y Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
MGD10R-4W-WWW-R Type: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
MGD20R-6RJ Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-6RJ-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6RJ-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6RJ-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6RJ-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6R-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6R-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6R-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6R-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6RM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6RM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6RM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6RM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6W Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-6W-K Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6W-B Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6W-Y Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6W-R Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6S-K Type: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6S-B Type: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6S-Y Type: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6S-R Type: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6RJ-MF Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-6RJ-MF-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-6RJ-MF-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-6RJ-MF-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-6RJ-MF-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-6R-MF Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-6R-MF-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-6R-MF-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-6R-MF-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-6R-MF-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-6RJ-FM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-6RJ-FM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-6RJ-FM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-6RJ-FM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-6RJ-FM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-6R-FM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-6R-FM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-6R-FM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-6R-FM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-6R-FM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-6RJ-FFF Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD20R-6RJ-FFF-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
MGD20R-6RJ-FFF-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD20R-6RJ-FFF-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD20R-6RJ-FFF-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
MGD20R-6R-FFF Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD20R-6R-FFF-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
MGD20R-6R-FFF-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD20R-6R-FFF-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD20R-6R-FFF-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
MGD20R-6RJ-FFM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD20R-6RJ-FFM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
MGD20R-6RJ-FFM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD20R-6RJ-FFM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD20R-6RJ-FFM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
MGD20R-6R-FFM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD20R-6R-FFM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
MGD20R-6R-FFM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD20R-6R-FFM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD20R-6R-FFM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
MGD20R-6RJ-FMM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD20R-6RJ-FMM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
MGD20R-6RJ-FMM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD20R-6RJ-FMM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD20R-6RJ-FMM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
MGD20R-6R-FMM Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD20R-6R-FMM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
MGD20R-6R-FMM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD20R-6R-FMM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD20R-6R-FMM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
MGD20R-6RM-MMM Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Silver
MGD20R-6RM-MMM-K Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
MGD20R-6RM-MMM-B Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
MGD20R-6RM-MMM-Y Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
MGD20R-6RM-MMM-R Type: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
MGD20R-6W-WWW Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Silver
MGD20R-6W-WWW-K Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
MGD20R-6W-WWW-B Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
MGD20R-6W-WWW-Y Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
MGD20R-6W-WWW-R Type: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
MGD20R-8RJ Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8RJ-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8RJ-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8RJ-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8RJ-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8R-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8R-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8R-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8R-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8RM Type: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8RM-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8RM-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8RM-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8RM-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8W Type: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8W-K Type: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8W-B Type: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8W-Y Type: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8W-R Type: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8S Type: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8S-K Type: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8S-B Type: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8S-Y Type: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8S-R Type: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8RJ-MF Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-8RJ-MF-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-8RJ-MF-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-8RJ-MF-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-8RJ-MF-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-8R-MF Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-8R-MF-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-8R-MF-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-8R-MF-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-8R-MF-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-8RJ-FM Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-8RJ-FM-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-8RJ-FM-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-8RJ-FM-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-8RJ-FM-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-8R-FM Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-8R-FM-K Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-8R-FM-B Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-8R-FM-Y Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-8R-FM-R Type: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
Process Gas ValvesCKD
357 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD OGD/MGD R Manual Valve Body Options (3-Port/Weld, Made to Order)

Brand CKD·Process Gas Valves

Available part numbers (357)

OGD10R-4RJ-K, OGD10R-4RJ-B, OGD10R-4RJ-Y, OGD10R-4RJ-R, OGD10R-4W-K, OGD10R-4W-B, OGD10R-4W-Y, OGD10R-4W-R, OGD10R-4RJ-MF-K, OGD10R-4RJ-MF-B + 347 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
OGD10R-4RJ-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD10R-4RJ-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD10R-4RJ-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD10R-4RJ-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD10R-4W-KType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD10R-4W-BType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD10R-4W-YType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD10R-4W-RType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD10R-4RJ-MF-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD10R-4RJ-MF-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD10R-4RJ-MF-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD10R-4RJ-MF-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD10R-4R-MF-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD10R-4R-MF-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD10R-4R-MF-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD10R-4R-MF-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD10R-4RJ-FM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD10R-4RJ-FM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD10R-4RJ-FM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD10R-4RJ-FM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD10R-4R-FM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD10R-4R-FM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD10R-4R-FM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD10R-4R-FM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD10R-4RJ-FFF-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
OGD10R-4RJ-FFF-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD10R-4RJ-FFF-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD10R-4RJ-FFF-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
OGD10R-4R-FFF-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
OGD10R-4R-FFF-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD10R-4R-FFF-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD10R-4R-FFF-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
OGD10R-4RJ-FFM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
OGD10R-4RJ-FFM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD10R-4RJ-FFM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD10R-4RJ-FFM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
OGD10R-4R-FFM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
OGD10R-4R-FFM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD10R-4R-FFM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD10R-4R-FFM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
OGD10R-4RJ-FMM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
OGD10R-4RJ-FMM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD10R-4RJ-FMM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD10R-4RJ-FMM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
OGD10R-4R-FMM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
OGD10R-4R-FMM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD10R-4R-FMM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD10R-4R-FMM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
OGD10R-4RM-MMM-KType: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
OGD10R-4RM-MMM-BType: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
OGD10R-4RM-MMM-YType: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
OGD10R-4RM-MMM-RType: OGD snap action, OGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
OGD10R-4W-WWW-KType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
OGD10R-4W-WWW-BType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
OGD10R-4W-WWW-YType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
OGD10R-4W-WWW-RType: OGD snap action, OGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
OGD20R-6RJ-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD20R-6RJ-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-6RJ-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-6RJ-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD20R-6W-KType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-6W-BType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-6W-YType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-6W-RType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-6RJ-MF-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-6RJ-MF-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-6RJ-MF-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-6RJ-MF-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-6R-MF-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-6R-MF-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-6R-MF-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-6R-MF-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-6RJ-FM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-6RJ-FM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-6RJ-FM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-6RJ-FM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-6R-FM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-6R-FM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-6R-FM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-6R-FM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-6RJ-FFF-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
OGD20R-6RJ-FFF-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD20R-6RJ-FFF-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD20R-6RJ-FFF-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
OGD20R-6R-FFF-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
OGD20R-6R-FFF-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
OGD20R-6R-FFF-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
OGD20R-6R-FFF-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
OGD20R-6RJ-FFM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
OGD20R-6RJ-FFM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD20R-6RJ-FFM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD20R-6RJ-FFM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
OGD20R-6R-FFM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
OGD20R-6R-FFM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
OGD20R-6R-FFM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
OGD20R-6R-FFM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
OGD20R-6RJ-FMM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
OGD20R-6RJ-FMM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD20R-6RJ-FMM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD20R-6RJ-FMM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
OGD20R-6R-FMM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
OGD20R-6R-FMM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
OGD20R-6R-FMM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
OGD20R-6R-FMM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
OGD20R-6RM-MMM-KType: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
OGD20R-6RM-MMM-BType: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
OGD20R-6RM-MMM-YType: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
OGD20R-6RM-MMM-RType: OGD snap action, OGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
OGD20R-6W-WWW-KType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
OGD20R-6W-WWW-BType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
OGD20R-6W-WWW-YType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
OGD20R-6W-WWW-RType: OGD snap action, OGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
OGD20R-8RJ-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8RJ-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8RJ-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8RJ-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8R-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8R-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8R-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8R-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8RM-KType: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8RM-BType: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8RM-YType: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8RM-RType: OGD snap action, OGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8W-KType: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8W-BType: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8W-YType: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8W-RType: OGD snap action, OGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8S-KType: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Black
OGD20R-8S-BType: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
OGD20R-8S-YType: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
OGD20R-8S-RType: OGD snap action, OGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Red
OGD20R-8RJ-MF-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-8RJ-MF-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-8RJ-MF-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-8RJ-MF-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-8R-MF-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
OGD20R-8R-MF-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
OGD20R-8R-MF-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
OGD20R-8R-MF-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
OGD20R-8RJ-FM-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-8RJ-FM-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-8RJ-FM-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-8RJ-FM-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
OGD20R-8R-FM-KType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
OGD20R-8R-FM-BType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
OGD20R-8R-FM-YType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
OGD20R-8R-FM-RType: OGD snap action, OGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4RJType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD10R-4RJ-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4RJ-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4RJ-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4RJ-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4R-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4R-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4R-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4R-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4RM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4RM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4RM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4RM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4WType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD10R-4W-KType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4W-BType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4W-YType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4W-RType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4S-KType: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD10R-4S-BType: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD10R-4S-YType: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD10R-4S-RType: MGD round handle, MGD10R | Connection: 1/4" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD10R-4RJ-MFType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD10R-4RJ-MF-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD10R-4RJ-MF-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD10R-4RJ-MF-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD10R-4RJ-MF-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD10R-4R-MFType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD10R-4R-MF-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD10R-4R-MF-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD10R-4R-MF-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD10R-4R-MF-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD10R-4RJ-FMType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD10R-4RJ-FM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD10R-4RJ-FM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD10R-4RJ-FM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD10R-4RJ-FM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4R-FMType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD10R-4R-FM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD10R-4R-FM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD10R-4R-FM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD10R-4R-FM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD10R-4RJ-FFFType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD10R-4RJ-FFF-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
MGD10R-4RJ-FFF-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD10R-4RJ-FFF-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD10R-4RJ-FFF-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
MGD10R-4R-FFFType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD10R-4R-FFF-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
MGD10R-4R-FFF-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD10R-4R-FFF-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD10R-4R-FFF-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
MGD10R-4RJ-FFMType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD10R-4RJ-FFM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
MGD10R-4RJ-FFM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD10R-4RJ-FFM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD10R-4RJ-FFM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
MGD10R-4R-FFMType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD10R-4R-FFM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
MGD10R-4R-FFM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD10R-4R-FFM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD10R-4R-FFM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
MGD10R-4RJ-FMMType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD10R-4RJ-FMM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
MGD10R-4RJ-FMM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD10R-4RJ-FMM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD10R-4RJ-FMM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
MGD10R-4R-FMMType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD10R-4R-FMM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
MGD10R-4R-FMM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD10R-4R-FMM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD10R-4R-FMM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
MGD10R-4RM-MMMType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Silver
MGD10R-4RM-MMM-KType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
MGD10R-4RM-MMM-BType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
MGD10R-4RM-MMM-YType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
MGD10R-4RM-MMM-RType: MGD round handle, MGD10R | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
MGD10R-4W-WWWType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Silver
MGD10R-4W-WWW-KType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
MGD10R-4W-WWW-BType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
MGD10R-4W-WWW-YType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
MGD10R-4W-WWW-RType: MGD round handle, MGD10R | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
MGD20R-6RJType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-6RJ-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6RJ-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6RJ-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6RJ-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6R-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6R-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6R-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6R-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6RM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6RM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6RM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6RM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6WType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-6W-KType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6W-BType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6W-YType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6W-RType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6S-KType: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-6S-BType: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-6S-YType: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-6S-RType: MGD round handle, MGD20R | Connection: 3/8" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-6RJ-MFType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-6RJ-MF-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-6RJ-MF-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-6RJ-MF-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-6RJ-MF-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-6R-MFType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-6R-MF-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-6R-MF-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-6R-MF-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-6R-MF-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-6RJ-FMType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-6RJ-FM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-6RJ-FM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-6RJ-FM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-6RJ-FM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-6R-FMType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-6R-FM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-6R-FM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-6R-FM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-6R-FM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-6RJ-FFFType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD20R-6RJ-FFF-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Black
MGD20R-6RJ-FFF-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD20R-6RJ-FFF-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD20R-6RJ-FFF-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F | Handle colour: Red
MGD20R-6R-FFFType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Silver
MGD20R-6R-FFF-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Black
MGD20R-6R-FFF-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Blue
MGD20R-6R-FFF-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Yellow
MGD20R-6R-FFF-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F | Handle colour: Red
MGD20R-6RJ-FFMType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD20R-6RJ-FFM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Black
MGD20R-6RJ-FFM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD20R-6RJ-FFM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD20R-6RJ-FFM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M | Handle colour: Red
MGD20R-6R-FFMType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Silver
MGD20R-6R-FFM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Black
MGD20R-6R-FFM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Blue
MGD20R-6R-FFM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Yellow
MGD20R-6R-FFM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M | Handle colour: Red
MGD20R-6RJ-FMMType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD20R-6RJ-FMM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Black
MGD20R-6RJ-FMM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD20R-6RJ-FMM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD20R-6RJ-FMM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M | Handle colour: Red
MGD20R-6R-FMMType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Silver
MGD20R-6R-FMM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Black
MGD20R-6R-FMM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Blue
MGD20R-6R-FMM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Yellow
MGD20R-6R-FMM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M | Handle colour: Red
MGD20R-6RM-MMMType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Silver
MGD20R-6RM-MMM-KType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Black
MGD20R-6RM-MMM-BType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Blue
MGD20R-6RM-MMM-YType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Yellow
MGD20R-6RM-MMM-RType: MGD round handle, MGD20R | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M | Handle colour: Red
MGD20R-6W-WWWType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Silver
MGD20R-6W-WWW-KType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Black
MGD20R-6W-WWW-BType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Blue
MGD20R-6W-WWW-YType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Yellow
MGD20R-6W-WWW-RType: MGD round handle, MGD20R | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3 | Handle colour: Red
MGD20R-8RJType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8RJ-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8RJ-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8RJ-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8RJ-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8RType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8R-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8R-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8R-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8R-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8RMType: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8RM-KType: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8RM-BType: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8RM-YType: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8RM-RType: MGD round handle, MGD20R | Connection: 1/2" JXR male | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8WType: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8W-KType: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8W-BType: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8W-YType: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8W-RType: MGD round handle, MGD20R | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8SType: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Silver
MGD20R-8S-KType: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Black
MGD20R-8S-BType: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Blue
MGD20R-8S-YType: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Yellow
MGD20R-8S-RType: MGD round handle, MGD20R | Connection: 1/2" bite fitting | Port layout: Straight 2-port | Handle colour: Red
MGD20R-8RJ-MFType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-8RJ-MF-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-8RJ-MF-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-8RJ-MF-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-8RJ-MF-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-8R-MFType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Silver
MGD20R-8R-MF-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Black
MGD20R-8R-MF-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Blue
MGD20R-8R-MF-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Yellow
MGD20R-8R-MF-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female | Handle colour: Red
MGD20R-8RJ-FMType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-8RJ-FM-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-8RJ-FM-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-8RJ-FM-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-8RJ-FM-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male | Handle colour: Red
MGD20R-8R-FMType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Silver
MGD20R-8R-FM-KType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Black
MGD20R-8R-FM-BType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Blue
MGD20R-8R-FM-YType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Yellow
MGD20R-8R-FM-RType: MGD round handle, MGD20R | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male | Handle colour: Red

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
