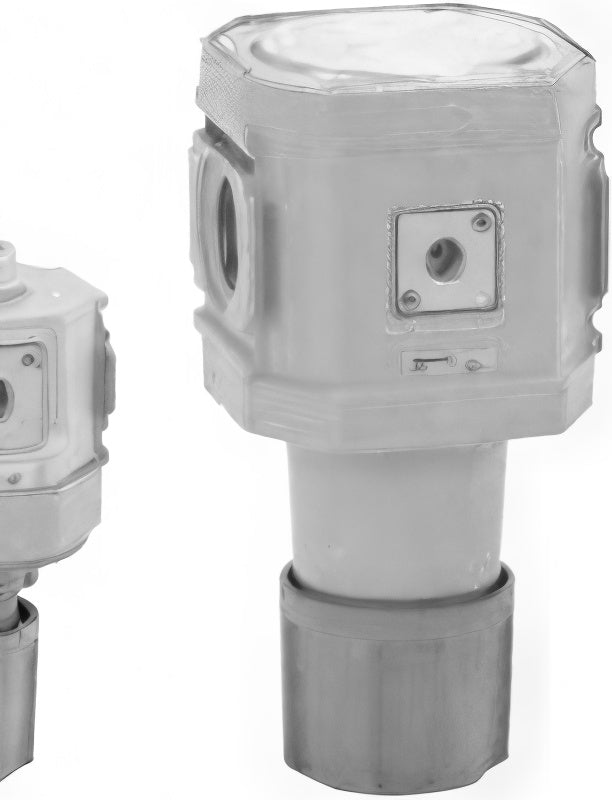

CKD Oil-Prohibited Regulator RN3000, RN4000, RN8000 Series (Rc1/4 to Rc1)

CKD Oil-Prohibited Regulator RN3000, RN4000, RN8000 Series (Rc1/4 to Rc1)

Grease-free regulator for applications sensitive to grease such as LCD, semiconductor, food, medical and electronic components.

Key features

  • All fluid passage parts are degreased and no grease is used

Specifications

Fluid Compressed air
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~60
Set pressure (MPa) 0.05~0.7
Relief With relief mechanism
RN3000 Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 1/4, 3/8 | Mass (kg): 0.5
RN4000 Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 1/4, 3/8, 1/2 | Mass (kg): 0.7
RN8000 Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 3/4, 1 | Mass (kg): 1.9
RegulatorsCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Oil-Prohibited Regulator RN3000, RN4000, RN8000 Series (Rc1/4 to Rc1)

Brand CKD·Regulators

Available part numbers (3)

RN3000, RN4000, RN8000

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RN3000Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 1/4, 3/8 | Mass (kg): 0.5
RN4000Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 1/4, 3/8, 1/2 | Mass (kg): 0.7
RN8000Fluid: Compressed air | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.7 | Relief: With relief mechanism | Port size (Rc): 3/4, 1 | Mass (kg): 1.9
