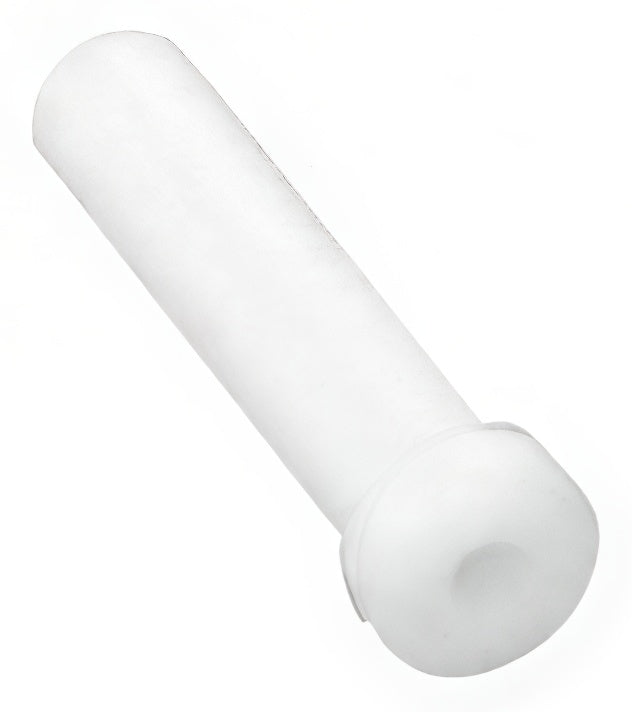

CKD One-Touch Fitting GW Series Plugs, Manifolds and Insert Rings (Clean Spec)

CKD One-Touch Fitting GW Series Plugs, Manifolds and Insert Rings (Clean Spec)

Accessories of the GW series one-touch fitting system in clean-room specification: connection plugs, blank plugs, L-type, C-type and Y-type plugs, multi-port manifolds (double, with or without R thread), and insert rings for using urethane tube under vacuum.

GWJP3-B Type: Blank plug | Fitting size (mm): 3.2 | Max pressure (MPa): 1.0 | Vacuum (kPa): -100 | Applicable tube: urethane U-95, NU | Clean spec suffix (omitted in table): P70/P74 (dust-generation prevention) or P80 (oil-free) | Sales unit: 10 pcs/set
INS-U32-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 32 | Dimensions: A 1.1, B 2.2, C 1.7, L 12.7 mm | Mass (g): 0.2 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
INS-U04-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 04 | Dimensions: A 1.1, B 3, C 1.8, L 17 mm | Mass (g): 0.3 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
INS-U06-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 06 | Dimensions: A 3, B 5, C 3.8, L 18 mm | Mass (g): 1 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
INS-U08-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 08 | Dimensions: A 4, B 7, C 4.8, L 21 mm | Mass (g): 1.2 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
INS-U10-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 10 | Dimensions: A 5.5, B 9, C 6.3, L 23.5 mm | Mass (g): 1.7 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
INS-U12-1 Type: Insert ring for urethane tube U-92/U-95 (made to order for NU) | Size code: 12 | Dimensions: A 7, B 11, C 7.8, L 25 mm | Mass (g): 2.5 | Material: Brass, electroless nickel plated | Clean spec suffix (omitted in table): P7※/P80
