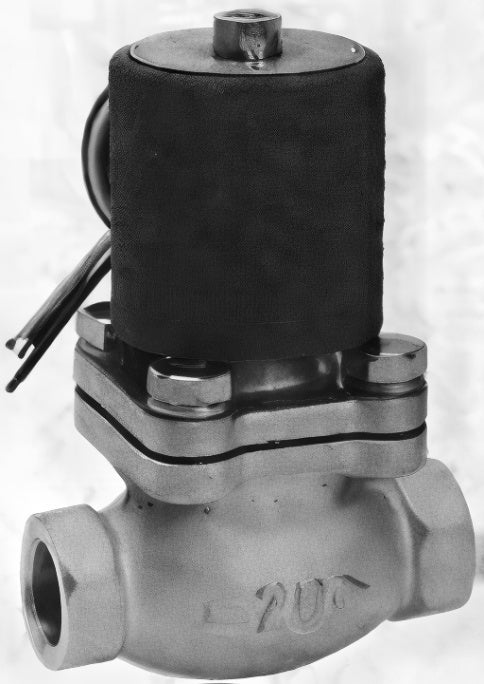

CKD Pilot Kick 2-Port Solenoid Valve for Air PKA Series (NC)

CKD Pilot Kick 2-Port Solenoid Valve for Air PKA Series (NC)

Pilot-kick 2-port solenoid valve for air that operates from zero pressure differential.

Key features

  • Normally closed, Rc1/2 to Rc1 threaded or 32A to 50A flanged ports; bronze or stainless body
  • Codes give the base port size; body material, coil option and voltage are added when ordering

Specifications

Fluid temperature (C) 5-60
Type NC
Fluid air
Rated voltage AC100V, AC200V
PKA-04-27 Port: Rc1/2 | Orifice (mm): 15 | C/b: 20/0.30 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 1.8 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-06-27 Port: Rc3/4 | Orifice (mm): 20 | S (mm2): 128 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 2.2 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-10-27 Port: Rc1 | Orifice (mm): 25 | S (mm2): 220 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 2.9 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-12-27 Port: 32A flange | Orifice (mm): 35 | S (mm2): 404 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 9 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-14-27 Port: 40A flange | Orifice (mm): 40 | S (mm2): 552 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 10 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-20-25 Port: 50A flange | Orifice (mm): 50 | S (mm2): 883 | Operating pressure diff. (MPa): 0-0.5 | Fluid temperature (C): 5-60 | Mass (kg): 13 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
Solenoid ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Pilot Kick 2-Port Solenoid Valve for Air PKA Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (6)

PKA-04-27, PKA-06-27, PKA-10-27, PKA-12-27, PKA-14-27, PKA-20-25

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PKA-04-27Port: Rc1/2 | Orifice (mm): 15 | C/b: 20/0.30 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 1.8 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-06-27Port: Rc3/4 | Orifice (mm): 20 | S (mm2): 128 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 2.2 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-10-27Port: Rc1 | Orifice (mm): 25 | S (mm2): 220 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 2.9 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-12-27Port: 32A flange | Orifice (mm): 35 | S (mm2): 404 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 9 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-14-27Port: 40A flange | Orifice (mm): 40 | S (mm2): 552 | Operating pressure diff. (MPa): 0-0.7 | Fluid temperature (C): 5-60 | Mass (kg): 10 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
PKA-20-25Port: 50A flange | Orifice (mm): 50 | S (mm2): 883 | Operating pressure diff. (MPa): 0-0.5 | Fluid temperature (C): 5-60 | Mass (kg): 13 | Type: NC | Fluid: air | Rated voltage: AC100V, AC200V
