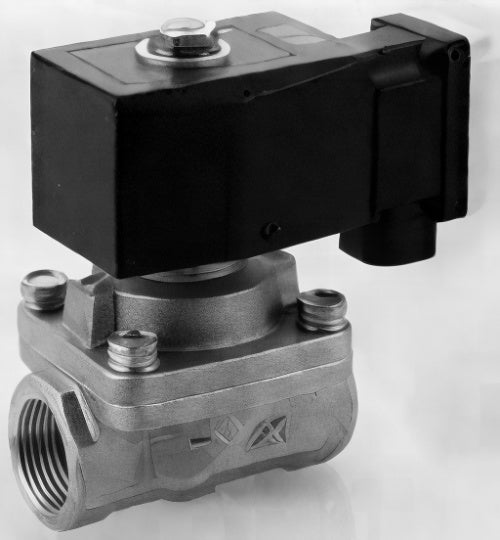

CKD Pilot Kick 2-Port Solenoid Valve for Steam SPK Series (NC)

CKD Pilot Kick 2-Port Solenoid Valve for Steam SPK Series (NC)

Pilot-kick piston 2-port solenoid valve for steam up to 180 C, operating from zero pressure differential.

Key features

  • Normally closed, Rc1/2 to Rc1 ports, class H coil
  • Codes give the base port size; body material, coil housing and voltage are added when ordering

Specifications

Type NC
Fluid steam
Operating pressure diff. (MPa) 0-1.0
Fluid temperature (C) 5-180
Rated voltage AC100V, AC110V, AC200V, AC220V
SPK11-15A Port: Rc1/2 | Orifice (mm): 16 | Mass (kg): 1.0 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
SPK11-20A Port: Rc3/4 | Orifice (mm): 23 | Mass (kg): 1.3 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
SPK11-25A Port: Rc1 | Orifice (mm): 28 | Mass (kg): 1.7 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Pilot Kick 2-Port Solenoid Valve for Steam SPK Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (3)

SPK11-15A, SPK11-20A, SPK11-25A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPK11-15APort: Rc1/2 | Orifice (mm): 16 | Mass (kg): 1.0 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
SPK11-20APort: Rc3/4 | Orifice (mm): 23 | Mass (kg): 1.3 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
SPK11-25APort: Rc1 | Orifice (mm): 28 | Mass (kg): 1.7 | Type: NC | Fluid: steam | Operating pressure diff. (MPa): 0-1.0 | Fluid temperature (C): 5-180 | Rated voltage: AC100V, AC110V, AC200V, AC220V
