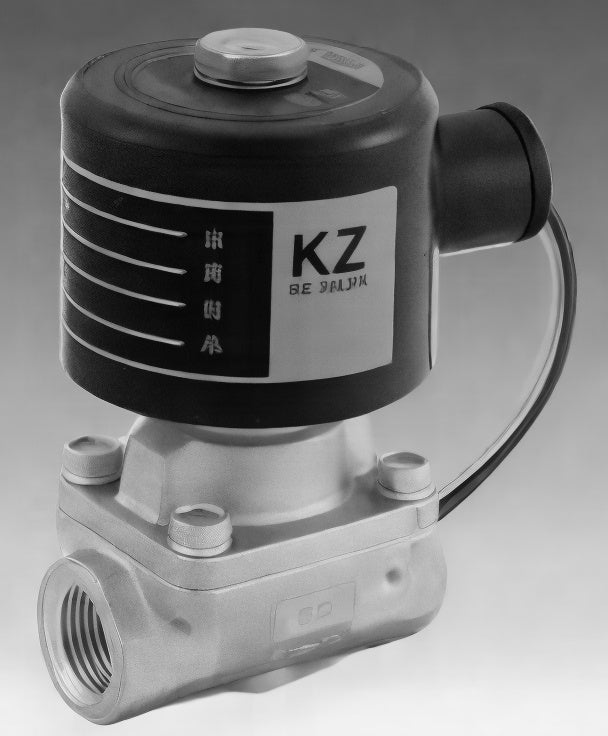

CKD Pilot Operated 2-Port Solenoid Valve KZV3 Series (NC)

CKD Pilot Operated 2-Port Solenoid Valve KZV3 Series (NC)

Pilot-operated piston 2-port solenoid valve for steam, water and oil up to 180 C.

Key features

  • Normally closed, Rc1/2 to Rc2 ports; 15A-25A are pilot-kick type operating from zero differential
  • AC100V/200V selectable coil, class H, IP65 equivalent
  • Codes are the standard bronze-body models

Specifications

Type NC
Body bronze
Fluid steam, water, oil
Fluid temperature (C) 5-180
Rated voltage AC100V/200V selectable
KZV3-15A Port: Rc1/2 | Orifice (mm): 16 | Cv: 4.5 | S (mm2): 88 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 1.3 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-20A Port: Rc3/4 | Orifice (mm): 23 | Cv: 8.6 | S (mm2): 162 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 1.6 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-25A Port: Rc1 | Orifice (mm): 28 | Cv: 12 | S (mm2): 231 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 2 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-32A Port: Rc1-1/4 | Orifice (mm): 35 | Cv: 25 | S (mm2): 460 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 4 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-40A Port: Rc1-1/2 | Orifice (mm): 43 | Cv: 34 | S (mm2): 625 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 5 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-50A Port: Rc2 | Orifice (mm): 53 | Cv: 53 | S (mm2): 975 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 6.5 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
Solenoid ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Pilot Operated 2-Port Solenoid Valve KZV3 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (6)

KZV3-15A, KZV3-20A, KZV3-25A, KZV3-32A, KZV3-40A, KZV3-50A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KZV3-15APort: Rc1/2 | Orifice (mm): 16 | Cv: 4.5 | S (mm2): 88 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 1.3 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-20APort: Rc3/4 | Orifice (mm): 23 | Cv: 8.6 | S (mm2): 162 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 1.6 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-25APort: Rc1 | Orifice (mm): 28 | Cv: 12 | S (mm2): 231 | Operating pressure diff. (MPa): 0-1 (oil 0-0.7) | Mass (kg): 2 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-32APort: Rc1-1/4 | Orifice (mm): 35 | Cv: 25 | S (mm2): 460 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 4 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-40APort: Rc1-1/2 | Orifice (mm): 43 | Cv: 34 | S (mm2): 625 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 5 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
KZV3-50APort: Rc2 | Orifice (mm): 53 | Cv: 53 | S (mm2): 975 | Operating pressure diff. (MPa): 0.05-1 (oil 0.05-0.6) | Mass (kg): 6.5 | Type: NC | Body: bronze | Fluid: steam, water, oil | Fluid temperature (C): 5-180 | Rated voltage: AC100V/200V selectable
