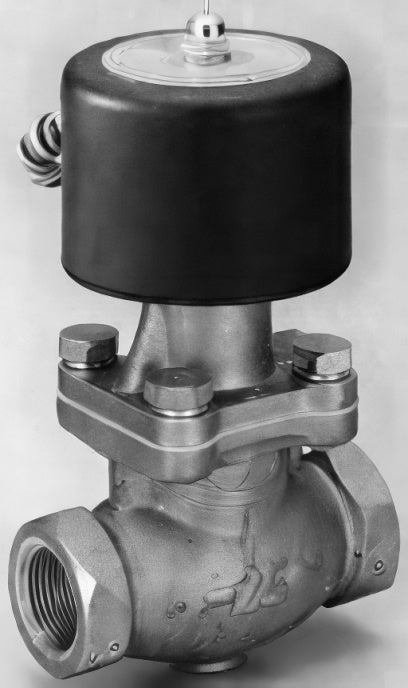

CKD Pilot Operated 2-Port Solenoid Valve PVS Series for Steam, Water and Air

CKD Pilot Operated 2-Port Solenoid Valve PVS Series for Steam, Water and Air

General-purpose pilot-operated 2-port solenoid valve for steam, water and air using a 3-port pilot valve for stable operation and long life.

Key features

  • Normally closed or normally open, Rc1/2 to Rc1 threaded or 32A to 80A flanged ports, class H coil
  • Codes give the base port size; NO type, coil option and voltage are added when ordering

Specifications

Fluid steam, water, air
Max working pressure (MPa) 1.0
Operating pressure diff. (MPa) 0.05-1
Fluid temperature (C) 5-185
Rated voltage AC100V, AC200V
PVS-15A-210 Port: Rc1/2 | Orifice (mm): 15 | Cv: 3.1 | Mass (kg): 2.2 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-20A-210 Port: Rc3/4 | Orifice (mm): 20 | Cv: 5.4 | Mass (kg): 2.6 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-25A-210 Port: Rc1 | Orifice (mm): 25 | Cv: 10 | Mass (kg): 3.1 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-32A-210 Port: 32A flange | Orifice (mm): 32 | Cv: 22 | Mass (kg): 8.5 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-40A-210 Port: 40A flange | Orifice (mm): 40 | Cv: 30 | Mass (kg): 9.8 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-50A-210 Port: 50A flange | Orifice (mm): 50 | Cv: 48 | Mass (kg): 14.2 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-65A-210 Port: 65A flange | Orifice (mm): 65 | Cv: 68 | Mass (kg): 21.8 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-80A-210 Port: 80A flange | Orifice (mm): 80 | Cv: 100 | Mass (kg): 25.1 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
Solenoid ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Pilot Operated 2-Port Solenoid Valve PVS Series for Steam, Water and Air

Brand CKD·Solenoid Valves

Available part numbers (8)

PVS-15A-210, PVS-20A-210, PVS-25A-210, PVS-32A-210, PVS-40A-210, PVS-50A-210, PVS-65A-210, PVS-80A-210

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PVS-15A-210Port: Rc1/2 | Orifice (mm): 15 | Cv: 3.1 | Mass (kg): 2.2 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-20A-210Port: Rc3/4 | Orifice (mm): 20 | Cv: 5.4 | Mass (kg): 2.6 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-25A-210Port: Rc1 | Orifice (mm): 25 | Cv: 10 | Mass (kg): 3.1 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-32A-210Port: 32A flange | Orifice (mm): 32 | Cv: 22 | Mass (kg): 8.5 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-40A-210Port: 40A flange | Orifice (mm): 40 | Cv: 30 | Mass (kg): 9.8 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-50A-210Port: 50A flange | Orifice (mm): 50 | Cv: 48 | Mass (kg): 14.2 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-65A-210Port: 65A flange | Orifice (mm): 65 | Cv: 68 | Mass (kg): 21.8 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
PVS-80A-210Port: 80A flange | Orifice (mm): 80 | Cv: 100 | Mass (kg): 25.1 | Fluid: steam, water, air | Max working pressure (MPa): 1.0 | Operating pressure diff. (MPa): 0.05-1 | Fluid temperature (C): 5-185 | Rated voltage: AC100V, AC200V
