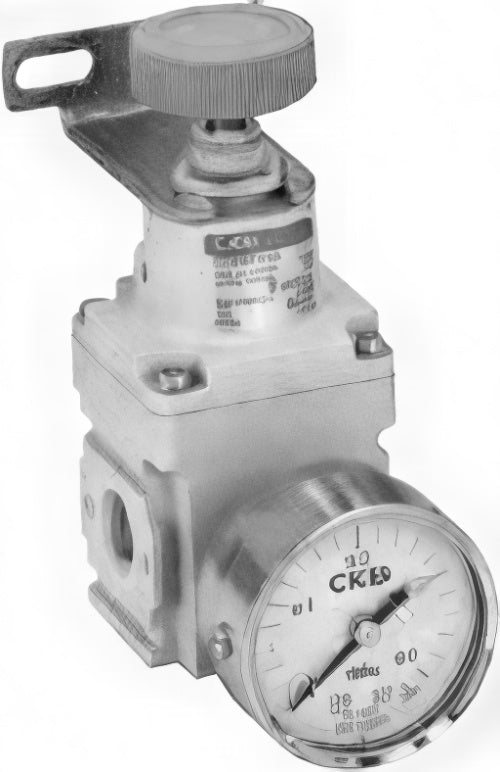

CKD Precision Regulator RP1000 Series (Port 1/4)

CKD Precision Regulator RP1000 Series (Port 1/4)

Nozzle-flapper pilot type precision regulator with sensitivity within 0.1% of full span; for balancers and precise pressure control.

Specifications

Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Port size (Rc, NPT, G) 1/4
Gauge port (Rc, NPT, G) 1/8
Mass (g) 250
RP1000-8-02 Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.003~0.2 | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
RP1000-8-04 Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.005~0.4 | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
RP1000-8-07 Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.005~0.7 | Air consumption (I/min(ANR)): 3.4 or less | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
Precision RegulatorsCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Precision Regulator RP1000 Series (Port 1/4)

Brand CKD·Precision Regulators

Available part numbers (3)

RP1000-8-02, RP1000-8-04, RP1000-8-07

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RP1000-8-02Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.003~0.2 | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
RP1000-8-04Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.005~0.4 | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
RP1000-8-07Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.005~0.7 | Air consumption (I/min(ANR)): 3.4 or less | Port size (Rc, NPT, G): 1/4 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 250
