• CKD Precision Regulator RP2000 Series (Port 1/4, 3/8)
1 1

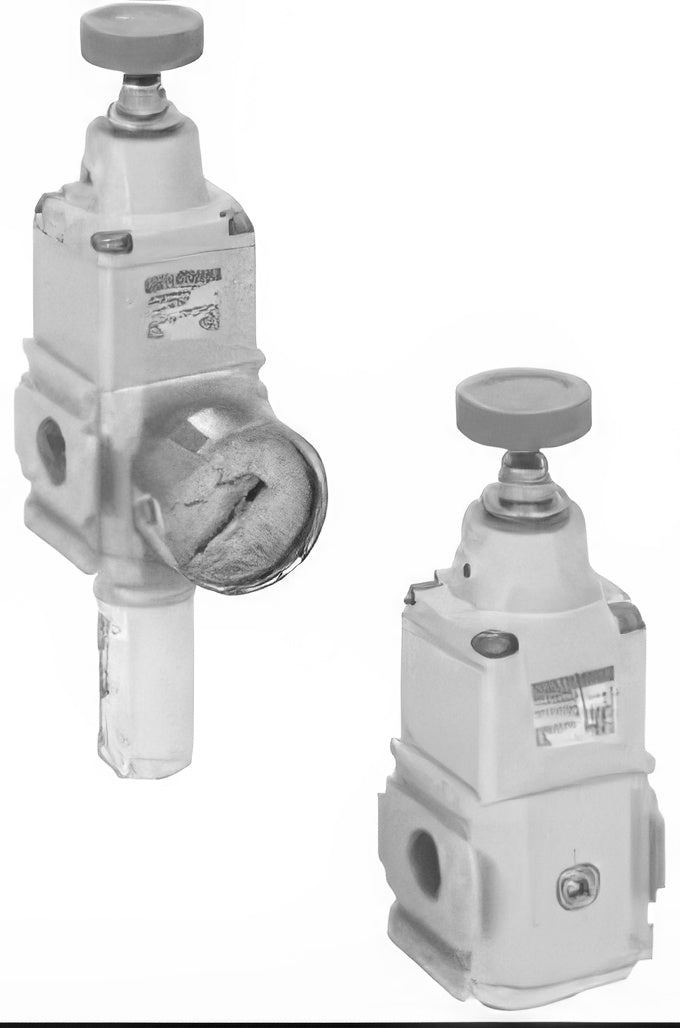

CKD Precision Regulator RP2000 Series (Port 1/4, 3/8)

CKD Precision Regulator RP2000 Series (Port 1/4, 3/8)

Long-life, large exhaust flow precision regulator using nozzle-flapper pilot control in a compact 50 mm square body; optimal for balancers.

Key features

  • Pressure range 0.03 to 0.85 MPa

Specifications

Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Set pressure (MPa) 0.03~0.85
Air consumption (L/min(ANR)) 5 or less
Exhaust port (Rc, NPT, G) 3/8
Gauge port (Rc, NPT, G) 1/8
Mass (g) 470
RP2000-8-08 Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.03~0.85 | Air consumption (L/min(ANR)): 5 or less | Port size: Rc1/4 | Exhaust port (Rc, NPT, G): 3/8 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 470
RP2000-10-08 Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.03~0.85 | Air consumption (L/min(ANR)): 5 or less | Port size: Rc3/8 | Exhaust port (Rc, NPT, G): 3/8 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 470
Precision RegulatorsCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Precision Regulator RP2000 Series (Port 1/4, 3/8)

Brand CKD·Precision Regulators

Available part numbers (2)

RP2000-8-08, RP2000-10-08

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RP2000-8-08Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.03~0.85 | Air consumption (L/min(ANR)): 5 or less | Port size: Rc1/4 | Exhaust port (Rc, NPT, G): 3/8 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 470
RP2000-10-08Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Set pressure (MPa): 0.03~0.85 | Air consumption (L/min(ANR)): 5 or less | Port size: Rc3/8 | Exhaust port (Rc, NPT, G): 3/8 | Gauge port (Rc, NPT, G): 1/8 | Mass (g): 470
