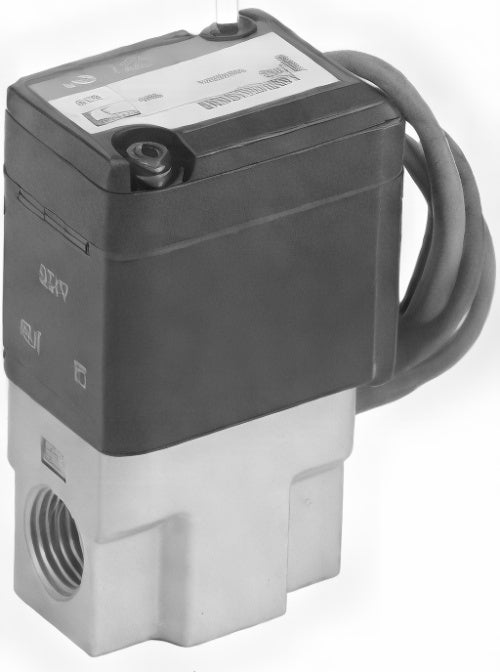

CKD Quiet JUST FIT Direct Acting 2-Port Solenoid Valve FGB31-X, FGB41-X, FWB31-X, FWB41-X (Made to Order)

CKD Quiet JUST FIT Direct Acting 2-Port Solenoid Valve FGB31-X, FGB41-X, FWB31-X, FWB41-X (Made to Order)

Low-noise versions of the JUST FIT direct-acting 2-port solenoid valve for quiet environments: FGB for compressed air, dry air and inert gas, FWB for water.

Key features

  • Normally closed, Rc1/4 port, DC24V or DC12V
  • Made-to-order products

Specifications

Port Rc1/4
Type NC
Rated voltage DC24V, DC12V
FGB31-X2077 Port: Rc1/4 | Orifice (mm): 3 | Working pressure (MPa): 0-0.4 | Fluid: compressed air, dry air, inert gas | Type: NC | Rated voltage: DC24V, DC12V
FGB41-X2078 Port: Rc1/4 | Orifice (mm): 4 | Working pressure (MPa): 0-0.45 | Fluid: compressed air, dry air, inert gas | Type: NC | Rated voltage: DC24V, DC12V
FWB31-X2079 Port: Rc1/4 | Orifice (mm): 3 | Cv: 0.3 | Working pressure (MPa): 0-0.3 | Fluid: water | Type: NC | Rated voltage: DC24V, DC12V
FWB41-X2080 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Working pressure (MPa): 0-0.35 | Fluid: water | Type: NC | Rated voltage: DC24V, DC12V
Solenoid ValvesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Quiet JUST FIT Direct Acting 2-Port Solenoid Valve FGB31-X, FGB41-X, FWB31-X, FWB41-X (Made to Order)

Brand CKD·Solenoid Valves

Available part numbers (4)

FGB31-X2077, FGB41-X2078, FWB31-X2079, FWB41-X2080

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGB31-X2077Port: Rc1/4 | Orifice (mm): 3 | Working pressure (MPa): 0-0.4 | Fluid: compressed air, dry air, inert gas | Type: NC | Rated voltage: DC24V, DC12V
FGB41-X2078Port: Rc1/4 | Orifice (mm): 4 | Working pressure (MPa): 0-0.45 | Fluid: compressed air, dry air, inert gas | Type: NC | Rated voltage: DC24V, DC12V
FWB31-X2079Port: Rc1/4 | Orifice (mm): 3 | Cv: 0.3 | Working pressure (MPa): 0-0.3 | Fluid: water | Type: NC | Rated voltage: DC24V, DC12V
FWB41-X2080Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Working pressure (MPa): 0-0.35 | Fluid: water | Type: NC | Rated voltage: DC24V, DC12V
