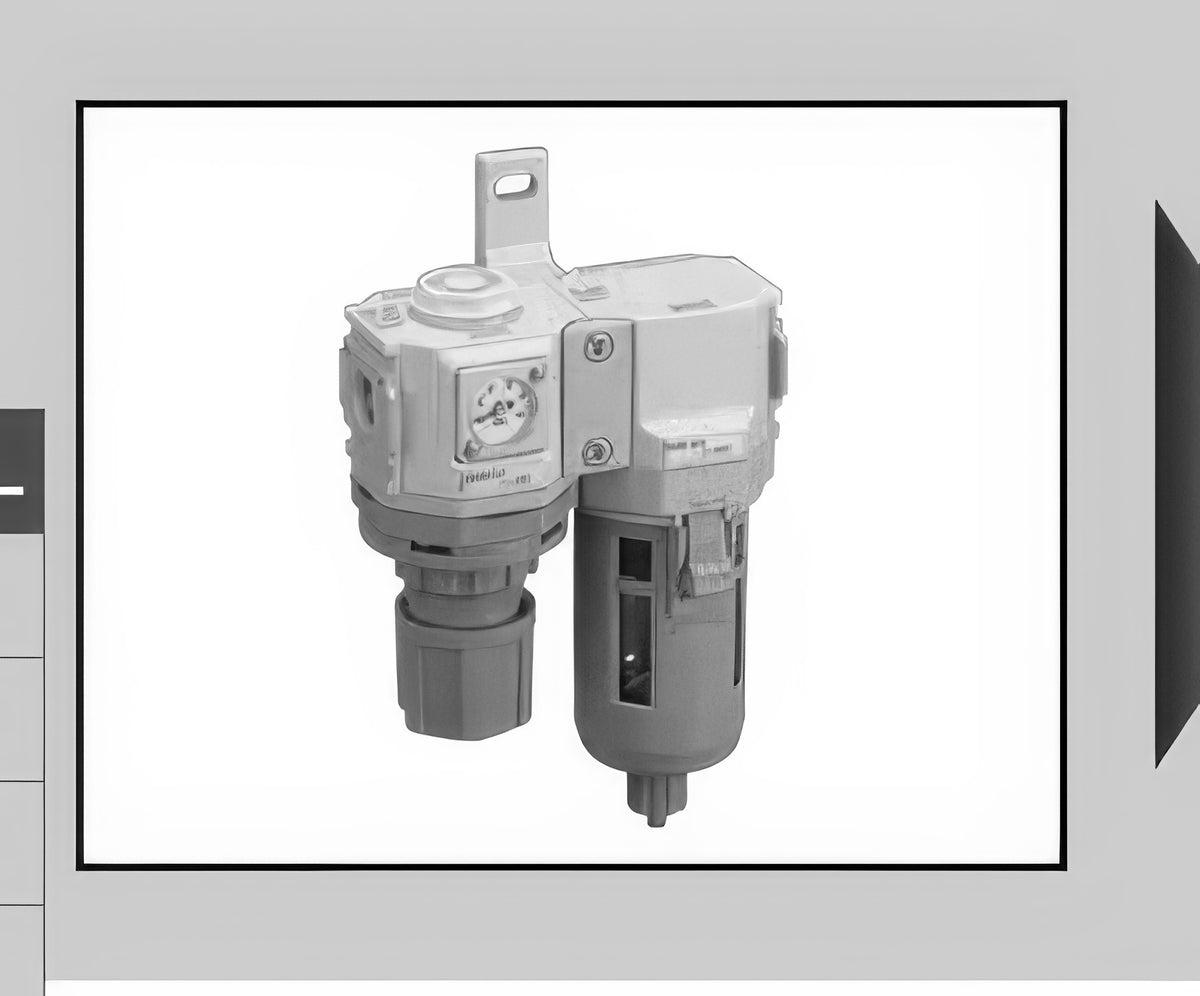

CKD R.M Combination C1050-W to C8050-W Series (Regulator + Oil Mist Filter, Port 1/8 to 1)

CKD R.M Combination C1050-W to C8050-W Series (Regulator + Oil Mist Filter, Port 1/8 to 1)

Combination unit integrating a regulator and an oil mist filter.

Key features

  • Standard white series modular (SELEX FRL) design; units connect with joiners and brackets
  • Port sizes 1/8 to 1

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~60
Relief With relief mechanism
C1050-W Regulator: R1000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.1~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/8, 1/4 | Mass (kg): 0.29
C2050-W Regulator: R2000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.65
C2550-W Regulator: R2000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.66 | Outlet oil concentration: 0.01mg/m
C3050-W Regulator: R3000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.82
C4050-W Regulator: R4000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 1.32 | Outlet oil concentration: or less)
C6050-W Regulator: R6000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 2.12
C8050-W Regulator: R8000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 3.12
FRL UnitsCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD R.M Combination C1050-W to C8050-W Series (Regulator + Oil Mist Filter, Port 1/8 to 1)

Brand CKD·FRL Units

Available part numbers (7)

C1050-W, C2050-W, C2550-W, C3050-W, C4050-W, C6050-W, C8050-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C1050-WRegulator: R1000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.1~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/8, 1/4 | Mass (kg): 0.29
C2050-WRegulator: R2000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.65
C2550-WRegulator: R2000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.66 | Outlet oil concentration: 0.01mg/m
C3050-WRegulator: R3000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.82
C4050-WRegulator: R4000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 1.32 | Outlet oil concentration: or less)
C6050-WRegulator: R6000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 2.12
C8050-WRegulator: R8000-W | Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 3.12
