• CKD Regulator 2619 Series (Oil-Free / Stainless, Rc1/8-Rc1/4)
1 1

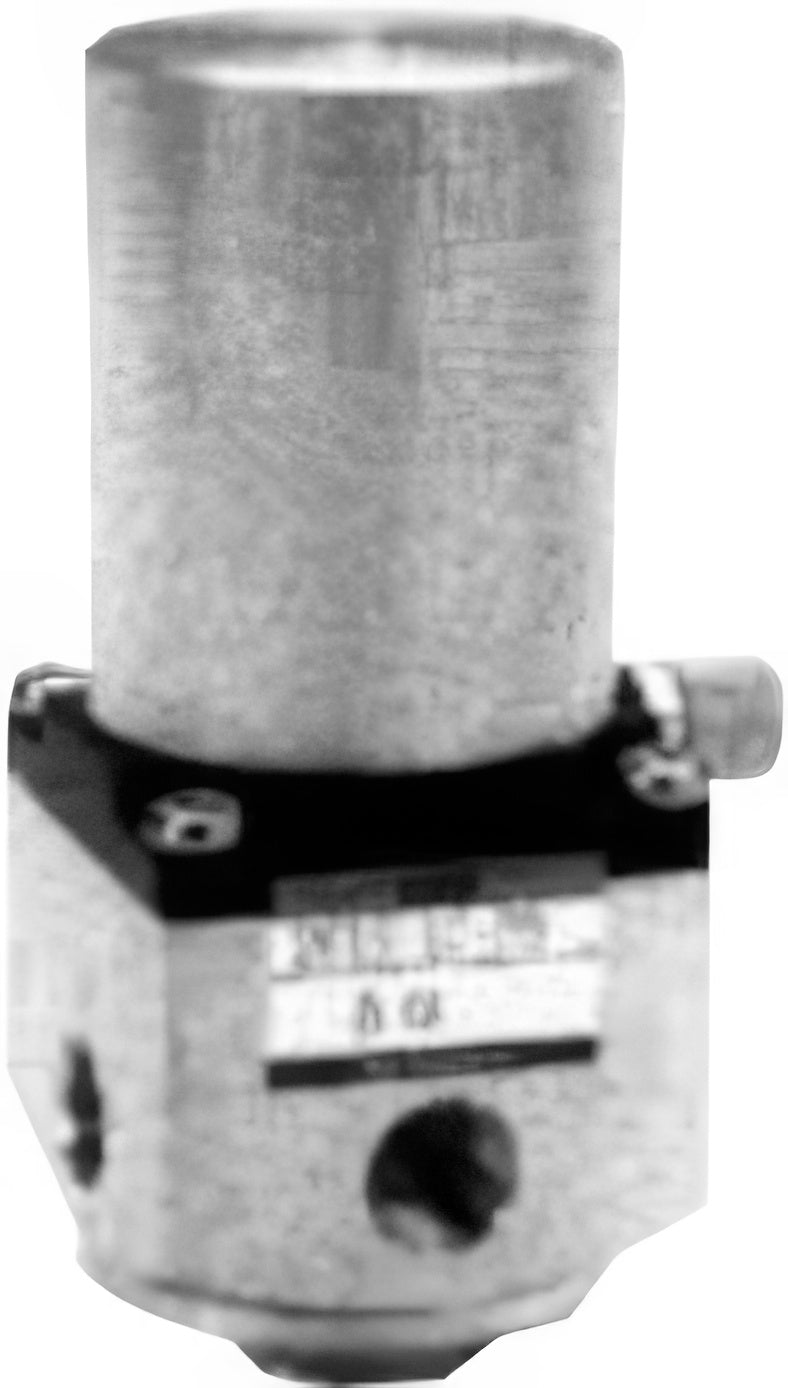

CKD Regulator 2619 Series (Oil-Free / Stainless, Rc1/8-Rc1/4)

CKD Regulator 2619 Series (Oil-Free / Stainless, Rc1/8-Rc1/4)

Compact relieving regulator for clean-room and oil-free applications with Rc1/8 or Rc1/4 ports.

Key features

  • Available as oil-free treated (P80) and stainless steel oil-free (P90/P94) versions, with standard (0.04-0.83 MPa) or low (0.04-0.34 MPa) set pressure ranges
2619-1C-L-P80 Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 2.06 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.27 | Clean spec: P80: oil-free treatment
2619-2C-L-P80 Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 2.06 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.27 | Clean spec: P80: oil-free treatment
2619-1C-L-P90 Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P90: stainless steel, oil-free
2619-2C-L-P90 Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P90: stainless steel, oil-free
2619-1C-L-P94 Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P94: stainless steel, oil-free, Cu/Si/halogen-free (made to order)
2619-2C-L-P94 Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P94: stainless steel, oil-free, Cu/Si/halogen-free (made to order)
2619-B-P80 Part: Bracket for 2619 regulator (screws included) | Material: Steel, nickel plated | Plate thickness: 2 mm
RegulatorsCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Regulator 2619 Series (Oil-Free / Stainless, Rc1/8-Rc1/4)

Brand CKD·Regulators

Available part numbers (7)

2619-1C-L-P80, 2619-2C-L-P80, 2619-1C-L-P90, 2619-2C-L-P90, 2619-1C-L-P94, 2619-2C-L-P94, 2619-B-P80

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2619-1C-L-P80Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 2.06 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.27 | Clean spec: P80: oil-free treatment
2619-2C-L-P80Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 2.06 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.27 | Clean spec: P80: oil-free treatment
2619-1C-L-P90Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P90: stainless steel, oil-free
2619-2C-L-P90Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P90: stainless steel, oil-free
2619-1C-L-P94Port size (IN/OUT): Rc1/8 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P94: stainless steel, oil-free, Cu/Si/halogen-free (made to order)
2619-2C-L-P94Port size (IN/OUT): Rc1/4 | Set pressure (MPa): 0.04-0.34 (low pressure) | Max working pressure (MPa): 1.0 | Relief: with relief mechanism | Gauge port: Rc1/8 | Fluid/ambient temp (C): 5-60 | Mass (kg): 0.42 | Clean spec: P94: stainless steel, oil-free, Cu/Si/halogen-free (made to order)
2619-B-P80Part: Bracket for 2619 regulator (screws included) | Material: Steel, nickel plated | Plate thickness: 2 mm
