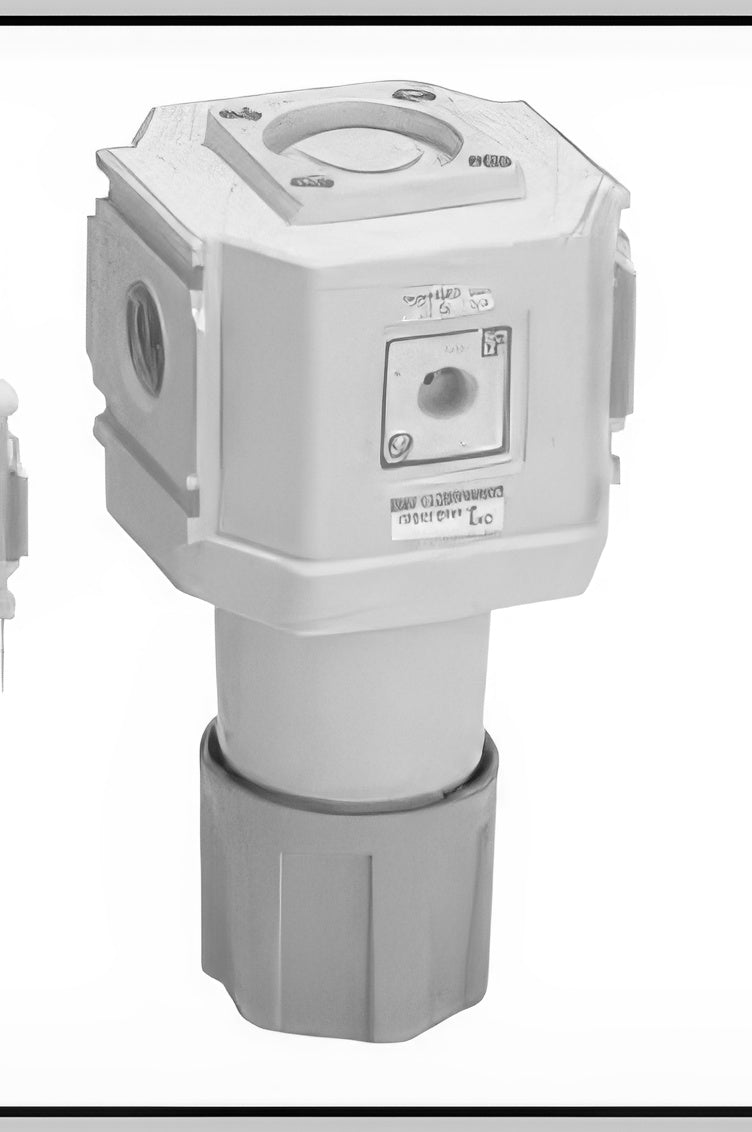

CKD Regulator Flame-Retardant R3000-G4, R4000-G4, R8000-G4 Series (Port 1/4 to 1)

CKD Regulator Flame-Retardant R3000-G4, R4000-G4, R8000-G4 Series (Port 1/4 to 1)

Pressure regulator.

Key features

  • Flame-retardant series with flame-retardant exterior and metal bowl, for use near welding spatter and similar environments

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~60
Set pressure (MPa) 0.05~0.85
Relief With relief mechanism
R3000-G4 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.52
R4000-G4 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.77
R8000-G4 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.6
RegulatorsCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Regulator Flame-Retardant R3000-G4, R4000-G4, R8000-G4 Series (Port 1/4 to 1)

Brand CKD·Regulators

Available part numbers (3)

R3000-G4, R4000-G4, R8000-G4

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R3000-G4Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.52
R4000-G4Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.77
R8000-G4Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.6
