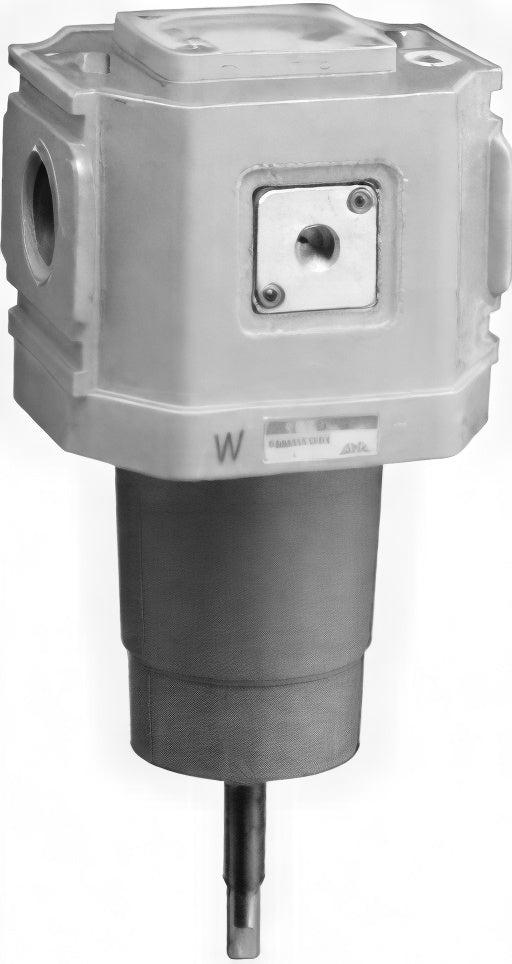

CKD Regulator Outdoor RW4000-W, RW8000-W Series (Port 1/4 to 1)

CKD Regulator Outdoor RW4000-W, RW8000-W Series (Port 1/4 to 1)

Pressure regulator for outdoor use.

Key features

  • Outdoor series for use in outdoor environments (ambient -10 to 60 C)

Specifications

Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Fluid temp. (℃) 5~60
Ambient temp. (℃) -10~60
Set pressure (MPa) 0.05~0.85
Relief With relief mechanism
RW4000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Fluid temp. (℃): 5~60 | Ambient temp. (℃): -10~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.75
RW8000-W Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Fluid temp. (℃): 5~60 | Ambient temp. (℃): -10~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.65
RegulatorsCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Regulator Outdoor RW4000-W, RW8000-W Series (Port 1/4 to 1)

Brand CKD·Regulators

Available part numbers (2)

RW4000-W, RW8000-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RW4000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Fluid temp. (℃): 5~60 | Ambient temp. (℃): -10~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.75
RW8000-WMax. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Fluid temp. (℃): 5~60 | Ambient temp. (℃): -10~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.65
