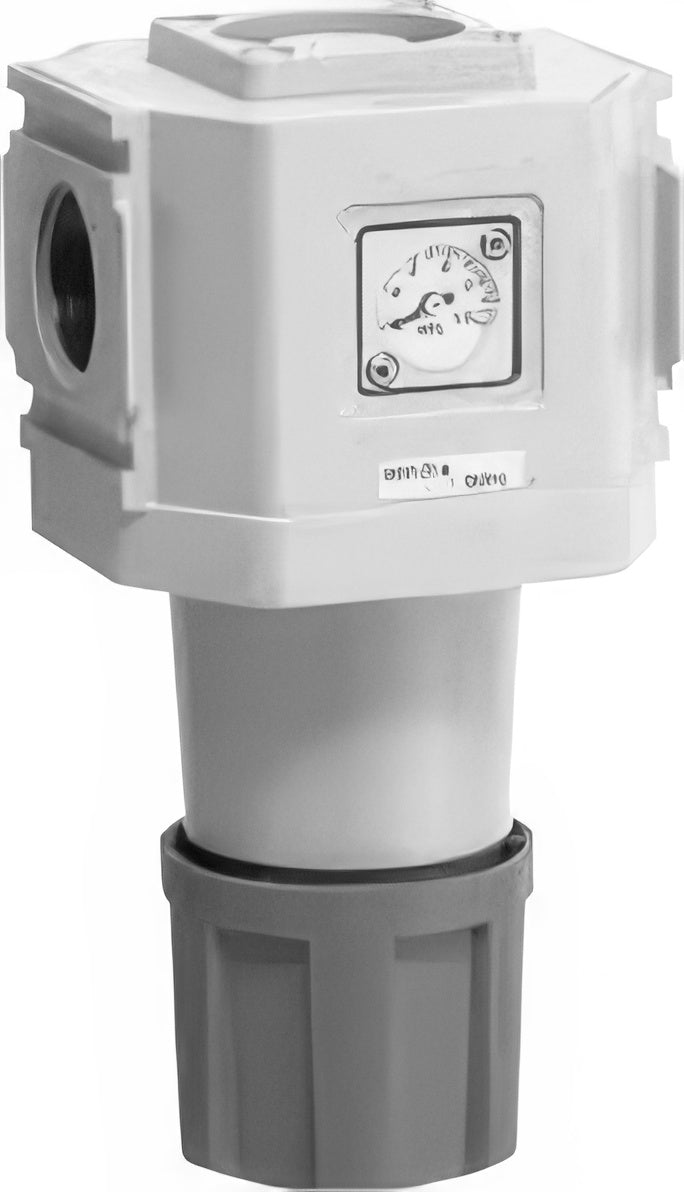

CKD Regulator R1000-W to R8000-W Series (Port 1/8 to 1)

CKD Regulator R1000-W to R8000-W Series (Port 1/8 to 1)

Compact pressure regulator with built-in gauge option.

Key features

  • Standard white series modular (SELEX FRL) design; units connect with joiners and brackets

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~60
Set pressure (MPa) 0.05~0.85
Relief With relief mechanism
R1000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/8, 1/4 | Mass (kg): 0.16
R2000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.31
R3000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.45
R4000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.7
R6000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.0
R8000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.6
RegulatorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Regulator R1000-W to R8000-W Series (Port 1/8 to 1)

Brand CKD·Regulators

Available part numbers (6)

R1000-W, R2000-W, R3000-W, R4000-W, R6000-W, R8000-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/8, 1/4 | Mass (kg): 0.16
R2000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.31
R3000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8 | Mass (kg): 0.45
R4000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 1/4, 3/8, 1/2 | Mass (kg): 0.7
R6000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.0
R8000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): 0.05~0.85 | Relief: With relief mechanism | Port size (Rc, NPT, G): 3/4, 1 | Mass (kg): 1.6
