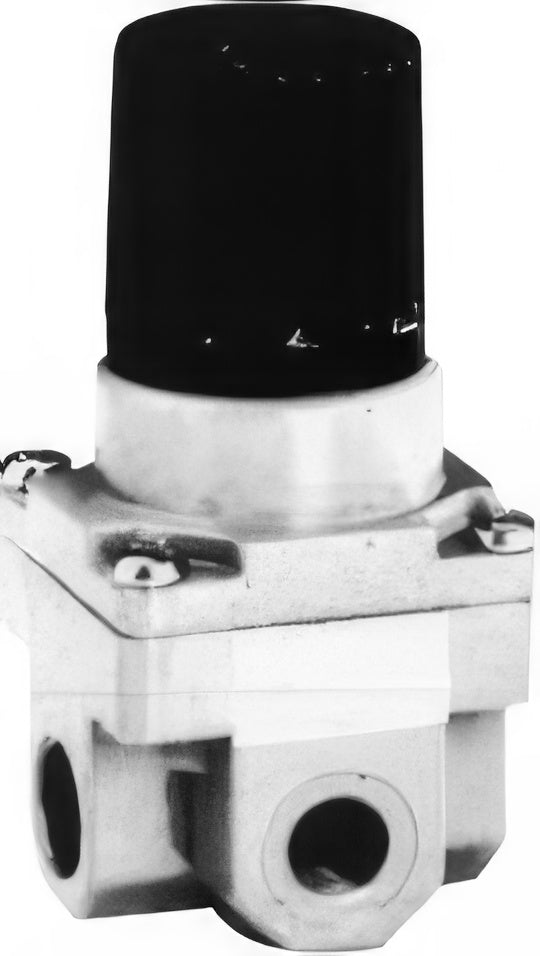

CKD Reverse Regulator with Built-in Check Valve 2419 Series (Rc1/8, Rc1/4)

CKD Reverse Regulator with Built-in Check Valve 2419 Series (Rc1/8, Rc1/4)

Reverse regulator whose built-in check valve quickly exhausts secondary pressure; no bypass circuit needed and piping is simple.

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~65
Set pressure (MPa) 0.04~0.83
Relief With relief mechanism
Port size (Rc) 1/8·1/4
Mass (kg) 0.2
2419-1C Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~65 | Set pressure (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.2
2419-2C Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~65 | Set pressure (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.2
RegulatorsCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Reverse Regulator with Built-in Check Valve 2419 Series (Rc1/8, Rc1/4)

Brand CKD·Regulators

Available part numbers (2)

2419-1C, 2419-2C

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2419-1CFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~65 | Set pressure (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.2
2419-2CFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~65 | Set pressure (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.2
