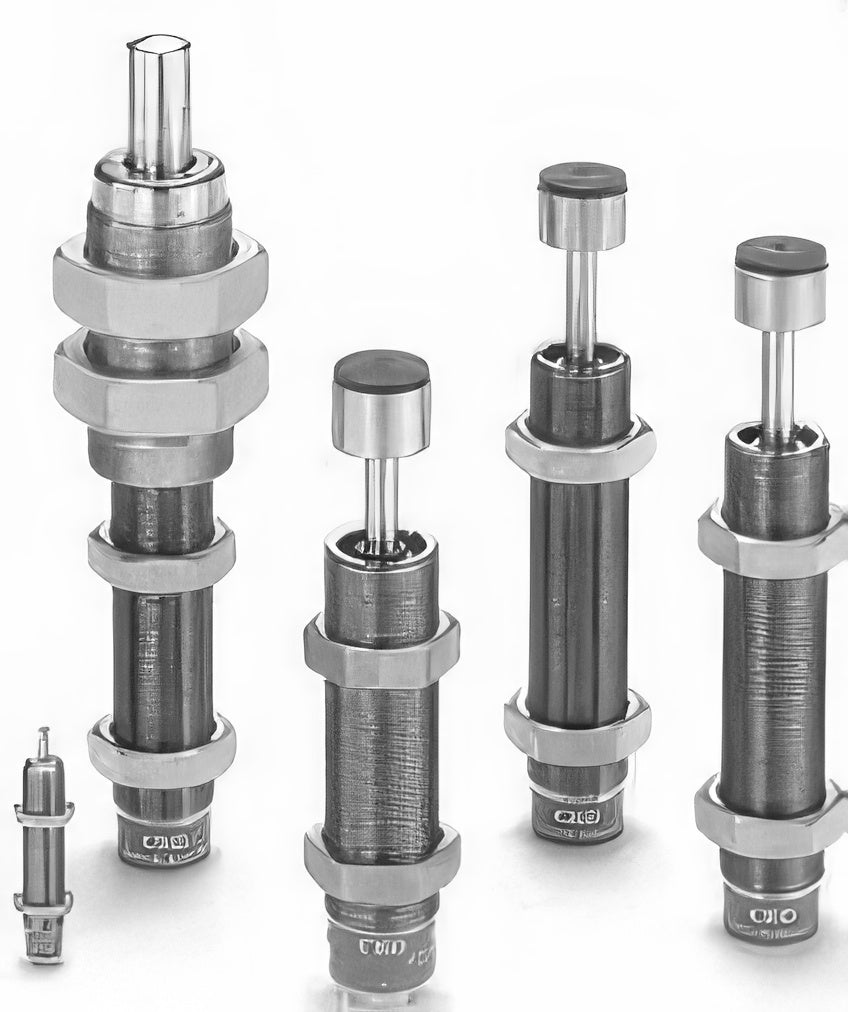

CKD Shock Absorber FCK Series (Adjustable, Low/Medium/High Speed)

CKD Shock Absorber FCK Series (Adjustable, Low/Medium/High Speed)

Adjustable hydraulic shock absorbers offered in low-speed (L), medium-speed (M) and high-speed (H) types to suit the impact conditions, with maximum absorbed energies from 1.5 to 392 J in the sizes listed.

Key features

  • Versions with and without a tip cap (-C) are available
  • Ambient temperature -5 to 70 °C
  • Listed part numbers are those printed in the catalog option tables

Specifications

Adjuster Yes
FCK-L-0.15 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 1.5 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.18 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 1.8 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.18 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 1.8 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-0.3 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 2.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.5 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 4.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.5 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 4.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-0.4 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 3.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.6 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 5.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.6 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 5.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-1 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-1 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-1 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-3 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-3 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-3 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-5 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-5 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-5 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-8.1 Type: Low-speed type (single orifice) | Tip cap: No | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-8.1 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-8.1 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-M-20 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 196 | Outer thread: M30×1.5 | Stroke (mm): 35 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-20 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 196 | Outer thread: M30×1.5 | Stroke (mm): 35 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-M-40 Type: Medium-speed type (multi-orifice, irregular) | Tip cap: No | Max. absorbed energy (J): 392 | Outer thread: M36×1.5 | Stroke (mm): 50 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-40 Type: High-speed type (multi-orifice) | Tip cap: No | Max. absorbed energy (J): 392 | Outer thread: M36×1.5 | Stroke (mm): 50 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-0.15-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 1.5 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.18-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 1.8 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.18-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 1.8 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-0.3-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 2.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.5-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 4.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.5-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 4.9 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-0.4-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 3.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-0.6-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 5.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-0.6-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 5.9 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-1-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-1-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-1-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 9.8 | Outer thread: M16×1.5 | Stroke (mm): 12 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-3-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-3-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-3-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 29.4 | Outer thread: M20×1.5 | Stroke (mm): 16 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-5-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-5-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-5-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 49 | Outer thread: M25×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-6.5-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 63.7 | Outer thread: M25×1.5 | Stroke (mm): 40 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-6.5-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 63.7 | Outer thread: M25×1.5 | Stroke (mm): 40 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-6.5-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 63.7 | Outer thread: M25×1.5 | Stroke (mm): 40 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-L-8.1-C Type: Low-speed type (single orifice) | Tip cap: Yes | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.3-1 | Adjuster: Yes
FCK-M-8.1-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-8.1-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 79.3 | Outer thread: M27×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-M-20-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 196 | Outer thread: M30×1.5 | Stroke (mm): 35 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-20-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 196 | Outer thread: M30×1.5 | Stroke (mm): 35 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
FCK-M-40-C Type: Medium-speed type (multi-orifice, irregular) | Tip cap: Yes | Max. absorbed energy (J): 392 | Outer thread: M36×1.5 | Stroke (mm): 50 | Max. impact speed (m/s): 0.3-2 | Adjuster: Yes
FCK-H-40-C Type: High-speed type (multi-orifice) | Tip cap: Yes | Max. absorbed energy (J): 392 | Outer thread: M36×1.5 | Stroke (mm): 50 | Max. impact speed (m/s): 0.7-3 | Adjuster: Yes
Shock AbsorbersCKD
53 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Shock Absorber FCK Series (Adjustable, Low/Medium/High Speed)

Brand CKD·Shock Absorbers

Available part numbers (53)

FCK-L-0.15, FCK-M-0.18, FCK-H-0.18, FCK-L-0.3, FCK-M-0.5, FCK-H-0.5, FCK-L-0.4, FCK-M-0.6, FCK-H-0.6, FCK-L-1 + 43 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
