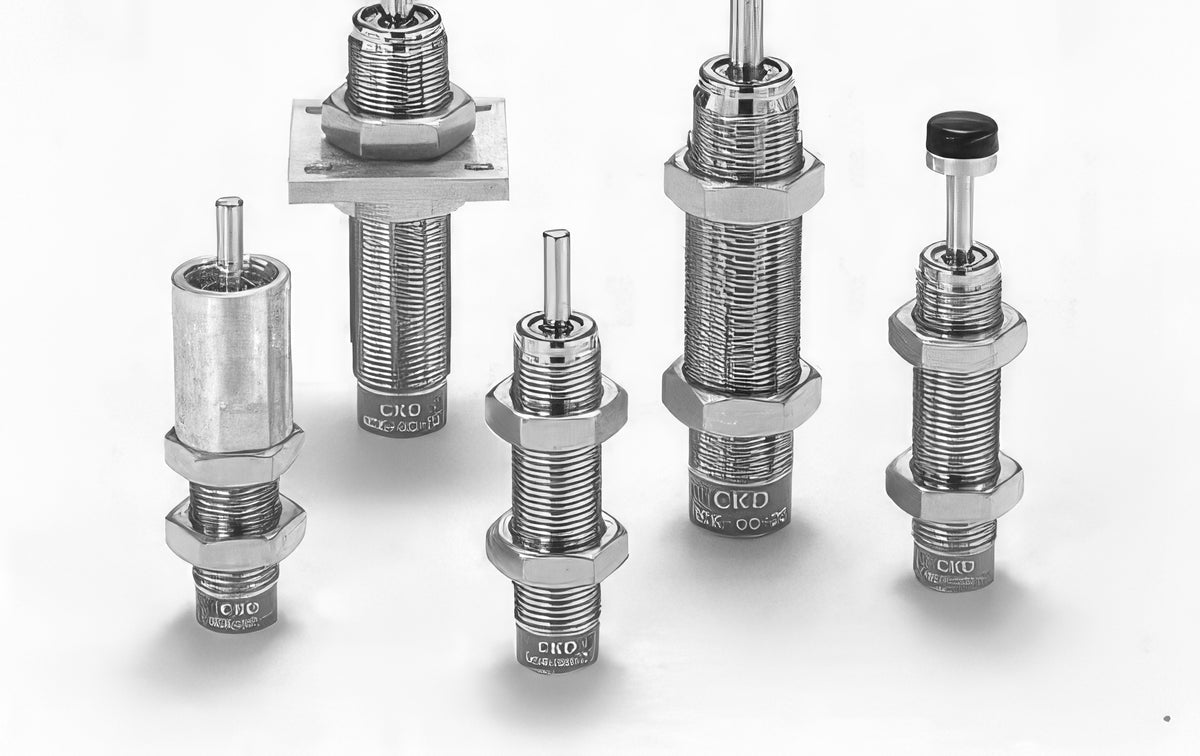

CKD Shock Absorber NCK Series (Non-Adjustable, Spring Return)

CKD Shock Absorber NCK Series (Non-Adjustable, Spring Return)

Non-adjustable, spring-return hydraulic shock absorbers with a slit-orifice design, covering maximum absorbed energies of 1 to 200 J.

Key features

  • Thread sizes range from M8 to M27, with ambient temperature -10 to 80 °C
  • Basic-type models are listed; the tip-cap (-C) versions shown are those printed as complete part numbers for use on CKD rodless cylinders and shuttle movers
  • Flange mounting and stop-nut options are ordered via the ordering code

Specifications

Mounting Basic type (00)
NCK-00-0.1 Mounting: Basic type (00) | Max. absorbed energy (J): 1 | Outer thread: M8×0.75 | Stroke (mm): 4.5 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 80 | Max. load (N): 525 | Mass (kg): 0.009
NCK-00-0.3 Mounting: Basic type (00) | Max. absorbed energy (J): 3 | Outer thread: M8×0.75 | Stroke (mm): 6 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 35 | Max. load (N): 1150 | Mass (kg): 0.012
NCK-00-0.7 Mounting: Basic type (00) | Max. absorbed energy (J): 7 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 1.5 | Max. cycle rate (cycles/min): 30 | Max. load (N): 2010 | Mass (kg): 0.02
NCK-00-1.2 Mounting: Basic type (00) | Max. absorbed energy (J): 12 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 2.0 | Max. cycle rate (cycles/min): 30 | Max. load (N): 2750 | Mass (kg): 0.04
NCK-00-2.6 Mounting: Basic type (00) | Max. absorbed energy (J): 26 | Outer thread: M14×1.5 | Stroke (mm): 15 | Max. impact speed (m/s): 2.0 | Max. cycle rate (cycles/min): 25 | Max. load (N): 4000 | Mass (kg): 0.07
NCK-00-7 Mounting: Basic type (00) | Max. absorbed energy (J): 70 | Outer thread: M20×1.5 | Stroke (mm): 20 | Max. impact speed (m/s): 2.5 | Max. cycle rate (cycles/min): 20 | Max. load (N): 7980 | Mass (kg): 0.2
NCK-00-12 Mounting: Basic type (00) | Max. absorbed energy (J): 120 | Outer thread: M25×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 12 | Max. load (N): 10950 | Mass (kg): 0.3
NCK-00-20 Mounting: Basic type (00) | Max. absorbed energy (J): 200 | Outer thread: M27×1.5 | Stroke (mm): 30 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 9 | Max. load (N): 15380 | Mass (kg): 0.45
NCK-00-0.1-C Mounting: Basic type (00) | Option: Tip cap | Max. absorbed energy (J): 1 | Outer thread: M8×0.75 | Stroke (mm): 4.5 | Max. impact speed (m/s): 1.0 | Max. load (N): 525
NCK-00-0.3-C Mounting: Basic type (00) | Option: Tip cap | Max. absorbed energy (J): 3 | Outer thread: M8×0.75 | Stroke (mm): 6 | Max. impact speed (m/s): 1.0 | Max. load (N): 1150
NCK-00-0.7-C Mounting: Basic type (00) | Option: Tip cap | Max. absorbed energy (J): 7 | Outer thread: M10×1.0 | Stroke (mm): 8 | Max. impact speed (m/s): 1.5 | Max. load (N): 2010
NCK-00-2.6-C Mounting: Basic type (00) | Option: Tip cap | Max. absorbed energy (J): 26 | Outer thread: M14×1.5 | Stroke (mm): 15 | Max. impact speed (m/s): 2.0 | Max. load (N): 4000
NCK-00-7-C Mounting: Basic type (00) | Option: Tip cap | Max. absorbed energy (J): 70 | Outer thread: M20×1.5 | Stroke (mm): 20 | Max. impact speed (m/s): 2.5 | Max. load (N): 7980
Shock AbsorbersCKD
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Shock Absorber NCK Series (Non-Adjustable, Spring Return)

Brand CKD·Shock Absorbers

Available part numbers (13)

NCK-00-0.1, NCK-00-0.3, NCK-00-0.7, NCK-00-1.2, NCK-00-2.6, NCK-00-7, NCK-00-12, NCK-00-20, NCK-00-0.1-C, NCK-00-0.3-C + 3 more — see full table ↓
