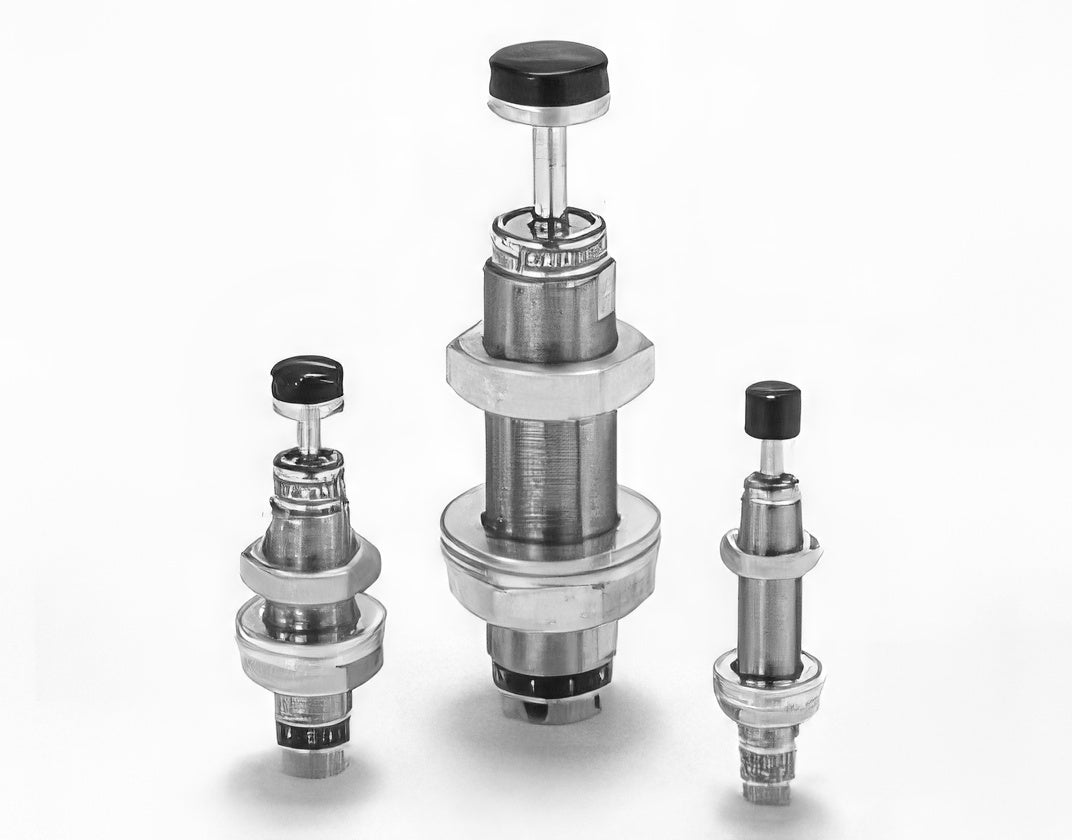

CKD Shock Absorber SCK Series (Adjustable and Non-Adjustable)

CKD Shock Absorber SCK Series (Adjustable and Non-Adjustable)

Spring-return hydraulic shock absorbers covering maximum absorbed energies from 0.049 to 588 J.

Key features

  • Small sizes (0.005 to 0.03) are non-adjustable; larger sizes have an adjuster so the absorption characteristic can be matched to the load
  • The M-suffix models use a coarse thread pitch
  • Use at no less than 1/5 of the maximum absorbed energy; ambient temperature -10 to 80 °C

Specifications

Mounting Basic type (00)
SCK-00-0.005 Mounting: Basic type (00) | Adjuster: No | Max. absorbed energy (J): 0.049 | Outer thread: M10×1.0 | Stroke (mm): 7 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 45 | Max. load (N): 39 | Mass (kg): 0.02
SCK-00-0.01 Mounting: Basic type (00) | Adjuster: No | Max. absorbed energy (J): 0.098 | Outer thread: M12×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 45 | Max. load (N): 59 | Mass (kg): 0.04
SCK-00-0.03 Mounting: Basic type (00) | Adjuster: No | Max. absorbed energy (J): 0.294 | Outer thread: M16×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 45 | Max. load (N): 147 | Mass (kg): 0.07
SCK-00-0.3 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 2.94 | Outer thread: M20×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 45 | Max. load (N): 540 | Mass (kg): 0.2
SCK-00-0.6 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 5.88 | Outer thread: M20×1.0 | Stroke (mm): 10 | Max. impact speed (m/s): 1.5 | Max. cycle rate (cycles/min): 30 | Max. load (N): 1000 | Mass (kg): 0.2
SCK-00-1.2 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 11.8 | Outer thread: M25×1.5 | Stroke (mm): 15 | Max. impact speed (m/s): 2.0 | Max. cycle rate (cycles/min): 30 | Max. load (N): 1400 | Mass (kg): 0.32
SCK-00-2.6 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 25.5 | Outer thread: M25×1.5 | Stroke (mm): 15 | Max. impact speed (m/s): 2.0 | Max. cycle rate (cycles/min): 25 | Max. load (N): 3100 | Mass (kg): 0.32
SCK-00-6.5 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 63.7 | Outer thread: M30×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 2.5 | Max. cycle rate (cycles/min): 20 | Max. load (N): 4600 | Mass (kg): 0.63
SCK-00-8 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 78.4 | Outer thread: M30×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 2.5 | Max. cycle rate (cycles/min): 18 | Max. load (N): 5700 | Mass (kg): 0.63
SCK-00-12 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 118 | Outer thread: M40×1.5 | Stroke (mm): 25 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 12 | Max. load (N): 8600 | Mass (kg): 1.17
SCK-00-20 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 196 | Outer thread: M40×1.5 | Stroke (mm): 40 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 9 | Max. load (N): 9000 | Mass (kg): 1.25
SCK-00-30 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 294 | Outer thread: M40×1.5 | Stroke (mm): 60 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 7 | Max. load (N): 9000 | Mass (kg): 1.39
SCK-00-40 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 392 | Outer thread: M40×1.5 | Stroke (mm): 70 | Max. impact speed (m/s): 3.0 | Max. cycle rate (cycles/min): 5 | Max. load (N): 10000 | Mass (kg): 1.45
SCK-00-60 Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 588 | Outer thread: M45×1.5 | Stroke (mm): 70 | Max. impact speed (m/s): 4.0 | Max. cycle rate (cycles/min): 4 | Max. load (N): 15000 | Mass (kg): 2.05
SCK-00-0.25M Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 3.43 | Outer thread: M14×1.5 | Stroke (mm): 10 | Max. impact speed (m/s): 1.0 | Max. cycle rate (cycles/min): 45 | Max. load (N): 630 | Mass (kg): 0.05
SCK-00-0.5M Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 11.8 | Outer thread: M20×1.5 | Stroke (mm): 15 | Max. impact speed (m/s): 2.0 | Max. cycle rate (cycles/min): 30 | Max. load (N): 1440 | Mass (kg): 0.13
SCK-00-1.0M Mounting: Basic type (00) | Adjuster: Yes | Max. absorbed energy (J): 74.5 | Outer thread: M27×3.0 | Stroke (mm): 30 | Max. impact speed (m/s): 2.5 | Max. cycle rate (cycles/min): 18 | Max. load (N): 4560 | Mass (kg): 0.39
