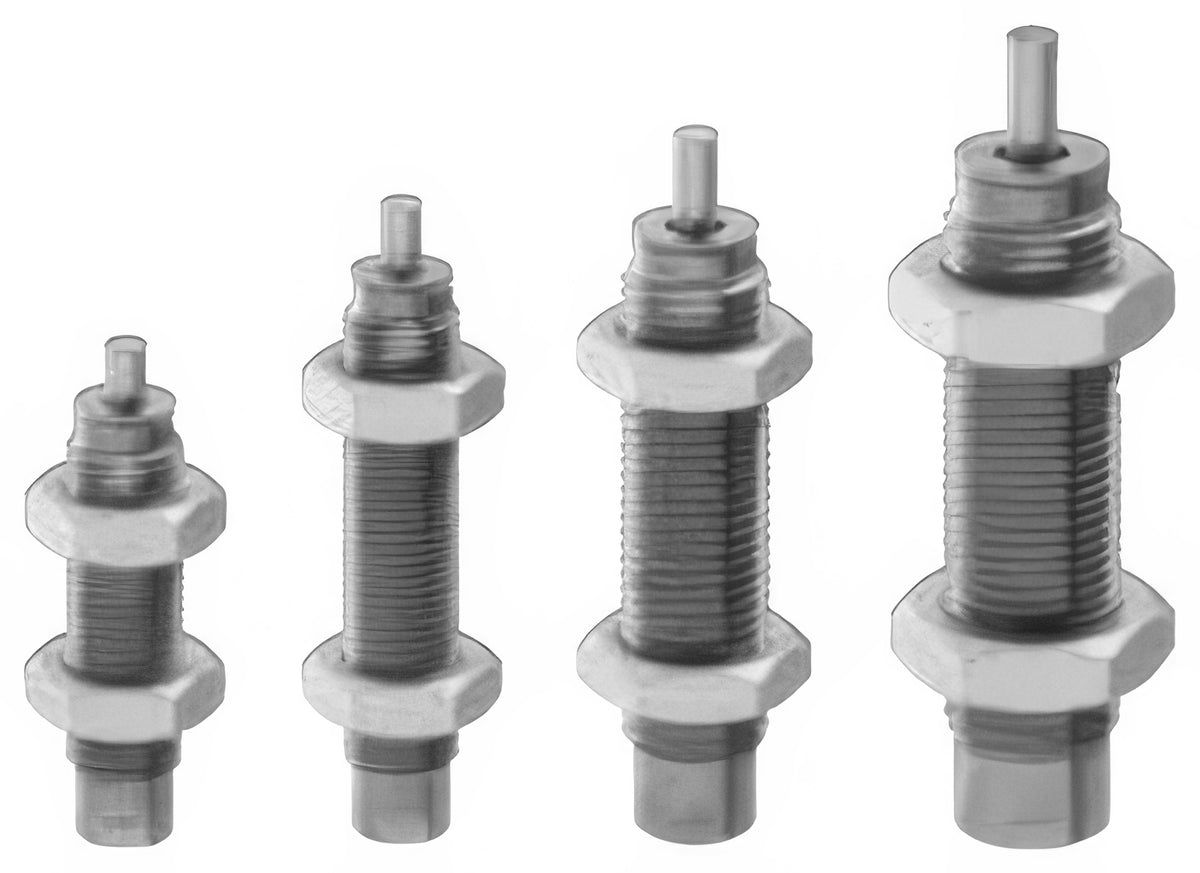

CKD Shock Absorber SKL Series (Non-Adjustable, Compact)

CKD Shock Absorber SKL Series (Non-Adjustable, Compact)

Compact, non-adjustable, spring-return hydraulic shock absorbers with a maximum absorbed energy of 0.2 to 3.6 J.

Key features

  • Thread sizes M8 to M12, maximum impact speed 1.0 m/s and ambient temperature -10 to 60 °C
  • Absorption capacity varies with speed and temperature; values are at room temperature

Specifications

Max. impact speed (m/s) 1.0
SKL-0804 Max. absorbed energy (J): 0.2 | Outer thread: M8×0.75 | Stroke (mm): 3.5 | Max. energy per hour (kJ/h): 0.9 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 40 | Max. load (N): 152 | Mass (g): 9
SKL-0805 Max. absorbed energy (J): 0.5 | Outer thread: M8×0.75 | Stroke (mm): 4.5 | Max. energy per hour (kJ/h): 2.4 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 158 | Max. load (N): 277 | Mass (g): 12
SKL-1006 Max. absorbed energy (J): 1.2 | Outer thread: M10×1.0 | Stroke (mm): 6 | Max. energy per hour (kJ/h): 4.3 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 281 | Max. load (N): 484 | Mass (g): 20
SKL-1208 Max. absorbed energy (J): 3.6 | Outer thread: M12×1.0 | Stroke (mm): 8 | Max. energy per hour (kJ/h): 12.9 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 687 | Max. load (N): 1064 | Mass (g): 40
Shock AbsorbersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Shock Absorber SKL Series (Non-Adjustable, Compact)

Brand CKD·Shock Absorbers

Available part numbers (4)

SKL-0804, SKL-0805, SKL-1006, SKL-1208

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKL-0804Max. absorbed energy (J): 0.2 | Outer thread: M8×0.75 | Stroke (mm): 3.5 | Max. energy per hour (kJ/h): 0.9 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 40 | Max. load (N): 152 | Mass (g): 9
SKL-0805Max. absorbed energy (J): 0.5 | Outer thread: M8×0.75 | Stroke (mm): 4.5 | Max. energy per hour (kJ/h): 2.4 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 158 | Max. load (N): 277 | Mass (g): 12
SKL-1006Max. absorbed energy (J): 1.2 | Outer thread: M10×1.0 | Stroke (mm): 6 | Max. energy per hour (kJ/h): 4.3 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 281 | Max. load (N): 484 | Mass (g): 20
SKL-1208Max. absorbed energy (J): 3.6 | Outer thread: M12×1.0 | Stroke (mm): 8 | Max. energy per hour (kJ/h): 12.9 | Max. impact speed (m/s): 1.0 | Max. allowable thrust (N): 687 | Max. load (N): 1064 | Mass (g): 40
