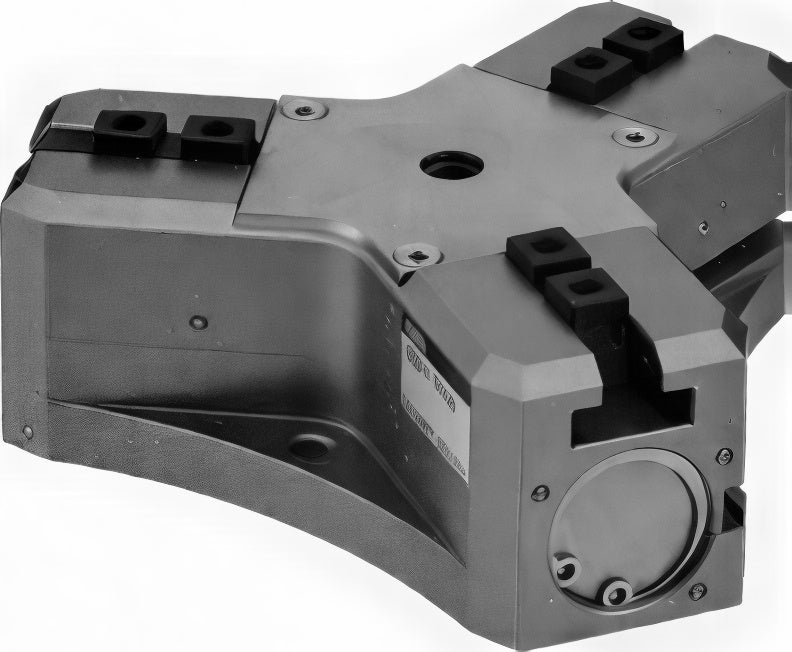

CKD Slim Chuck CKS-F Series (Hollow Type)

CKD Slim Chuck CKS-F Series (Hollow Type)

Slim hollow chuck with through hole.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Operation Double acting
Port M5
Repeatability (mm) ±0.01
Fluid Compressed air
CKS-F-16CS Size: 16CS | Stroke (mm): 16 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.40 | Fluid: Compressed air
CKS-F-20CS Size: 20CS | Stroke (mm): 20 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.63 | Fluid: Compressed air
CKS-F-25CS Size: 25CS | Stroke (mm): 28 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.14 | Fluid: Compressed air
CKS-F-32CS Size: 32CS | Stroke (mm): 32 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.8 | Fluid: Compressed air
CKS-F-50CS Size: 50CS | Stroke (mm): 50 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 5.76 | Fluid: Compressed air
Pneumatic ChucksCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Slim Chuck CKS-F Series (Hollow Type)

Brand CKD·Pneumatic Chucks

Available part numbers (5)

CKS-F-16CS, CKS-F-20CS, CKS-F-25CS, CKS-F-32CS, CKS-F-50CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKS-F-16CSSize: 16CS | Stroke (mm): 16 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.40 | Fluid: Compressed air
CKS-F-20CSSize: 20CS | Stroke (mm): 20 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.63 | Fluid: Compressed air
CKS-F-25CSSize: 25CS | Stroke (mm): 28 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.14 | Fluid: Compressed air
CKS-F-32CSSize: 32CS | Stroke (mm): 32 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.8 | Fluid: Compressed air
CKS-F-50CSSize: 50CS | Stroke (mm): 50 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 5.76 | Fluid: Compressed air
