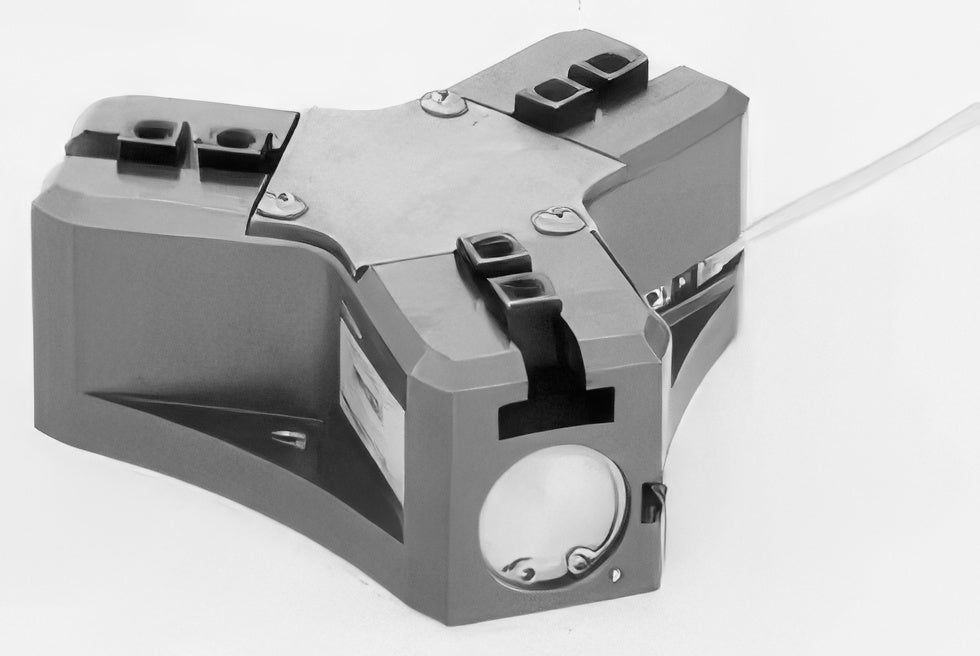

CKD Slim Chuck CKS Series

CKD Slim Chuck CKS Series

Slim chuck.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Operation Double acting
Port M5
Repeatability (mm) ±0.01
Fluid Compressed air
CKS-08CS Size: 08CS | Stroke (mm): 10 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.16 | Fluid: Compressed air
CKS-12CS Size: 12CS | Stroke (mm): 12 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.26 | Fluid: Compressed air
CKS-16CS Size: 16CS | Stroke (mm): 16 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.40 | Fluid: Compressed air
CKS-20CS Size: 20CS | Stroke (mm): 20 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.63 | Fluid: Compressed air
CKS-25CS Size: 25CS | Stroke (mm): 28 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.14 | Fluid: Compressed air
CKS-32CS Size: 32CS | Stroke (mm): 32 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.8 | Fluid: Compressed air
Pneumatic ChucksCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Slim Chuck CKS Series

Brand CKD·Pneumatic Chucks

Available part numbers (6)

CKS-08CS, CKS-12CS, CKS-16CS, CKS-20CS, CKS-25CS, CKS-32CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKS-08CSSize: 08CS | Stroke (mm): 10 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.16 | Fluid: Compressed air
CKS-12CSSize: 12CS | Stroke (mm): 12 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.26 | Fluid: Compressed air
CKS-16CSSize: 16CS | Stroke (mm): 16 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.40 | Fluid: Compressed air
CKS-20CSSize: 20CS | Stroke (mm): 20 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 0.63 | Fluid: Compressed air
CKS-25CSSize: 25CS | Stroke (mm): 28 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.14 | Fluid: Compressed air
CKS-32CSSize: 32CS | Stroke (mm): 32 | Operation: Double acting | Port: M5 | Repeatability (mm): ±0.01 | Mass (kg): 1.8 | Fluid: Compressed air
