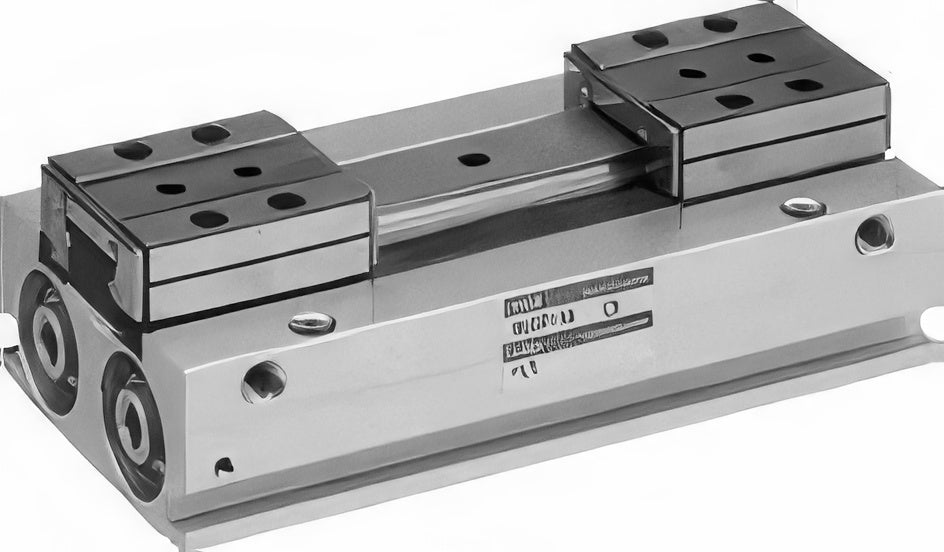

CKD Slim Long Stroke Hand HLF2 Series

CKD Slim Long Stroke Hand HLF2 Series

Slim long-stroke parallel hand with twin pistons; standard and long-stroke options.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Fluid Compressed air
HLF2-08CS Size: 08CS | Bore (mm): 8x2 | Stroke (mm): 12 | Mass (kg): 0.09 | Fluid: Compressed air
HLF2-12CS Size: 12CS | Bore (mm): 12x2 | Stroke (mm): 16 | Mass (kg): 0.17 | Fluid: Compressed air
HLF2-16CS Size: 16CS | Bore (mm): 16x2 | Stroke (mm): 20 | Mass (kg): 0.34 | Fluid: Compressed air
HLF2-20CS Size: 20CS | Bore (mm): 20x2 | Stroke (mm): 24 | Mass (kg): 0.62 | Fluid: Compressed air
Pneumatic GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Slim Long Stroke Hand HLF2 Series

Brand CKD·Pneumatic Grippers

Available part numbers (4)

HLF2-08CS, HLF2-12CS, HLF2-16CS, HLF2-20CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HLF2-08CSSize: 08CS | Bore (mm): 8x2 | Stroke (mm): 12 | Mass (kg): 0.09 | Fluid: Compressed air
HLF2-12CSSize: 12CS | Bore (mm): 12x2 | Stroke (mm): 16 | Mass (kg): 0.17 | Fluid: Compressed air
HLF2-16CSSize: 16CS | Bore (mm): 16x2 | Stroke (mm): 20 | Mass (kg): 0.34 | Fluid: Compressed air
HLF2-20CSSize: 20CS | Bore (mm): 20x2 | Stroke (mm): 24 | Mass (kg): 0.62 | Fluid: Compressed air
