CKD Small Cross Roller Parallel Hand with Rubber Cover BHG Series

CKD Small Cross Roller Parallel Hand with Rubber Cover BHG Series

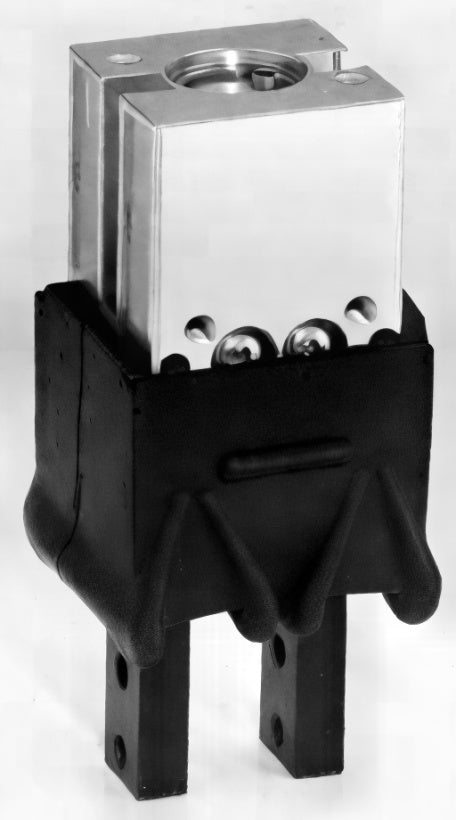

Small cross roller parallel hand with rubber cover protecting the guide from dust and chips; double acting or single acting.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Operation Double acting / single acting
Repeatability (mm) ±0.01
Fluid Compressed air
BHG-01CS Size: 01CS | Bore (mm): 12 | Stroke (mm): 5 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.118 | Fluid: Compressed air
BHG-03CS Size: 03CS | Bore (mm): 16 | Stroke (mm): 9 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.165 | Fluid: Compressed air
BHG-04CS Size: 04CS | Bore (mm): 20 | Stroke (mm): 11 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.238 | Fluid: Compressed air
BHG-05CS Size: 05CS | Bore (mm): 25 | Stroke (mm): 15 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.455 | Fluid: Compressed air
Pneumatic GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Small Cross Roller Parallel Hand with Rubber Cover BHG Series

Brand CKD·Pneumatic Grippers

Available part numbers (4)

BHG-01CS, BHG-03CS, BHG-04CS, BHG-05CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BHG-01CSSize: 01CS | Bore (mm): 12 | Stroke (mm): 5 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.118 | Fluid: Compressed air
BHG-03CSSize: 03CS | Bore (mm): 16 | Stroke (mm): 9 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.165 | Fluid: Compressed air
BHG-04CSSize: 04CS | Bore (mm): 20 | Stroke (mm): 11 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.238 | Fluid: Compressed air
BHG-05CSSize: 05CS | Bore (mm): 25 | Stroke (mm): 15 | Operation: Double acting / single acting | Repeatability (mm): ±0.01 | Mass (kg): 0.455 | Fluid: Compressed air
