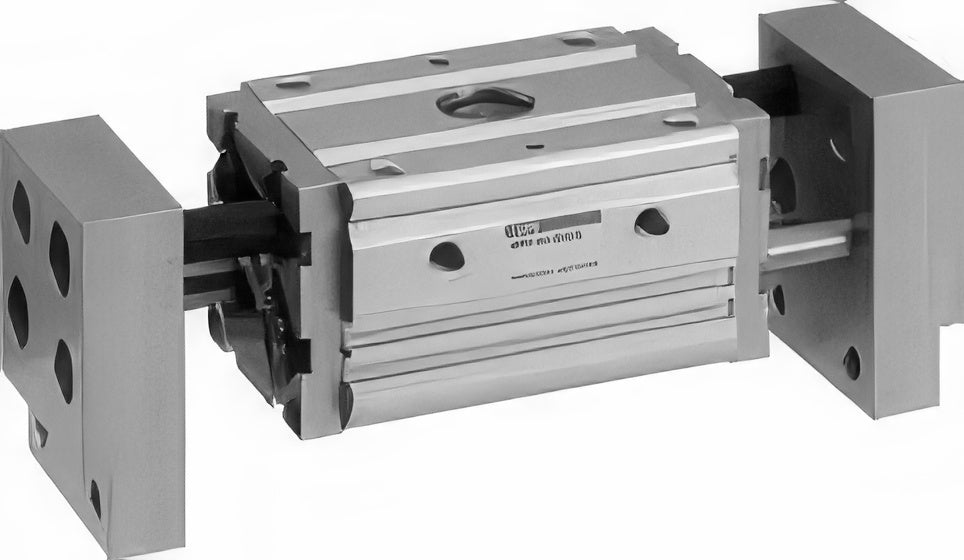

CKD Small Wide-opening Parallel Hand HMF-G Series (Coolant Resistant)

CKD Small Wide-opening Parallel Hand HMF-G Series (Coolant Resistant)

Coolant resistant version of the HMF wide-opening parallel hand.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Port M5
Fluid Compressed air
HMF-G-16CS Size: 16CS | Bore (mm): 16x2 | Stroke (mm): 30 | Port: M5 | Mass (kg): 0.65 | Fluid: Compressed air
HMF-G-20CS Size: 20CS | Bore (mm): 20x2 | Stroke (mm): 40 | Port: M5 | Mass (kg): 1.07 | Fluid: Compressed air
HMF-G-25CS Size: 25CS | Bore (mm): 25x2 | Stroke (mm): 50 | Port: M5 | Mass (kg): 2 | Fluid: Compressed air
Pneumatic GrippersCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Small Wide-opening Parallel Hand HMF-G Series (Coolant Resistant)

Brand CKD·Pneumatic Grippers

Available part numbers (3)

HMF-G-16CS, HMF-G-20CS, HMF-G-25CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HMF-G-16CSSize: 16CS | Bore (mm): 16x2 | Stroke (mm): 30 | Port: M5 | Mass (kg): 0.65 | Fluid: Compressed air
HMF-G-20CSSize: 20CS | Bore (mm): 20x2 | Stroke (mm): 40 | Port: M5 | Mass (kg): 1.07 | Fluid: Compressed air
HMF-G-25CSSize: 25CS | Bore (mm): 25x2 | Stroke (mm): 50 | Port: M5 | Mass (kg): 2 | Fluid: Compressed air
