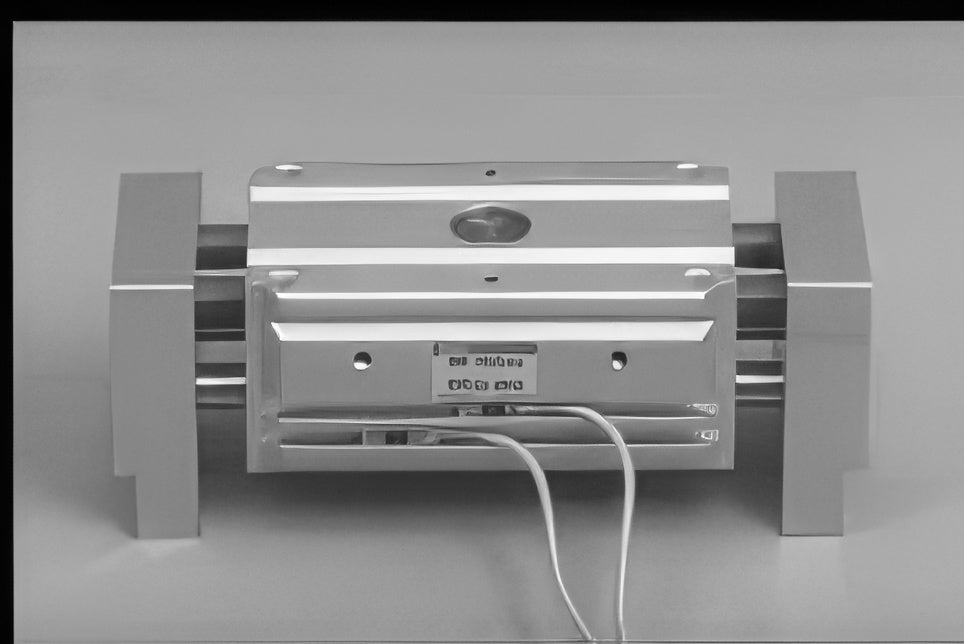

CKD Small Wide-opening Parallel Hand HMF Series (Standard/Long Stroke)

CKD Small Wide-opening Parallel Hand HMF Series (Standard/Long Stroke)

Small wide-opening (gate type) parallel hand with twin pistons; standard and long stroke versions.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Fluid Compressed air
HMF-12CS Size: 12CS | Bore (mm): 12x2 | Stroke (mm): 20 | Mass (kg): 0.31 | Fluid: Compressed air
HMF-16CS Size: 16CS | Bore (mm): 16x2 | Stroke (mm): 30 | Mass (kg): 0.54 | Fluid: Compressed air
HMF-20CS Size: 20CS | Bore (mm): 20x2 | Stroke (mm): 40 | Mass (kg): 0.90 | Fluid: Compressed air
HMF-25CS Size: 25CS | Bore (mm): 25x2 | Stroke (mm): 50 | Mass (kg): 1.7 | Fluid: Compressed air
HMF-32CS Size: 32CS | Bore (mm): 32x2 | Stroke (mm): 70 | Mass (kg): 2.8 | Fluid: Compressed air
HMF-40CS Size: 40CS | Bore (mm): 40x2 | Stroke (mm): 100 | Mass (kg): 5.7 | Fluid: Compressed air
Pneumatic GrippersCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Small Wide-opening Parallel Hand HMF Series (Standard/Long Stroke)

Brand CKD·Pneumatic Grippers

Available part numbers (6)

HMF-12CS, HMF-16CS, HMF-20CS, HMF-25CS, HMF-32CS, HMF-40CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HMF-12CSSize: 12CS | Bore (mm): 12x2 | Stroke (mm): 20 | Mass (kg): 0.31 | Fluid: Compressed air
HMF-16CSSize: 16CS | Bore (mm): 16x2 | Stroke (mm): 30 | Mass (kg): 0.54 | Fluid: Compressed air
HMF-20CSSize: 20CS | Bore (mm): 20x2 | Stroke (mm): 40 | Mass (kg): 0.90 | Fluid: Compressed air
HMF-25CSSize: 25CS | Bore (mm): 25x2 | Stroke (mm): 50 | Mass (kg): 1.7 | Fluid: Compressed air
HMF-32CSSize: 32CS | Bore (mm): 32x2 | Stroke (mm): 70 | Mass (kg): 2.8 | Fluid: Compressed air
HMF-40CSSize: 40CS | Bore (mm): 40x2 | Stroke (mm): 100 | Mass (kg): 5.7 | Fluid: Compressed air
