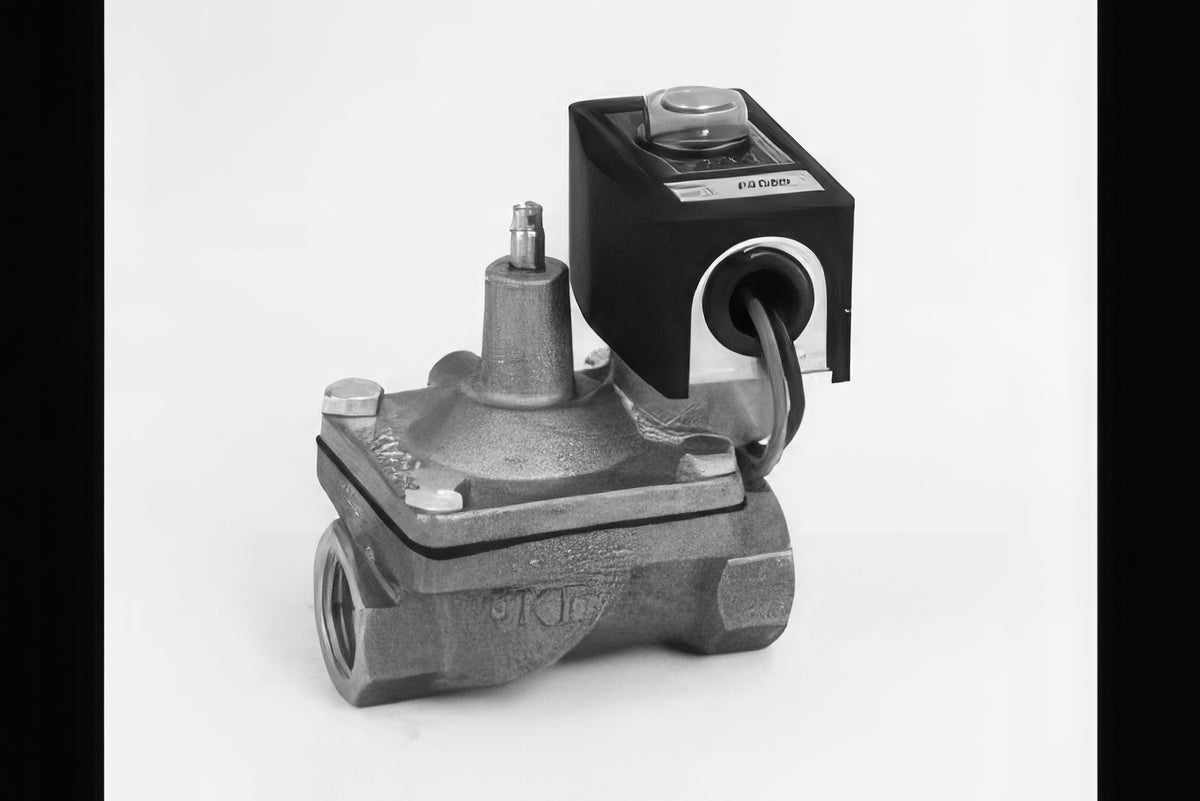

CKD Solenoid Valve for Tap Water RSV-W Series

CKD Solenoid Valve for Tap Water RSV-W Series

Pilot-operated diaphragm solenoid valve for tap water supply control in pools, baths, showers and toilets, washing equipment and roof-top or garden irrigation.

Key features

  • Water-hammer suppression, continuous or latching coil; Rc1/2 to Rc2 ports, operating pressure differential 0.02 to 1 MPa

Specifications

Fluid tap water
Max working pressure (MPa) 1
Operating pressure diff. (MPa) 0.02-1
Fluid temperature (C) 0-60
RSV-15A-210W-3A011 Port: Rc1/2 | Orifice (mm): 15.5 | Cv: 3.4 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-20A-210W-3A011 Port: Rc3/4 | Orifice (mm): 25.5 | Cv: 10.1 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-25A-210W-3A011 Port: Rc1 | Orifice (mm): 25.5 | Cv: 12.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-32A-210W-3A011 Port: Rc1-1/4 | Orifice (mm): 50.5 | Cv: 25.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-40A-210W-3A011 Port: Rc1-1/2 | Orifice (mm): 50.5 | Cv: 34.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-50A-210W-3A011 Port: Rc2 | Orifice (mm): 50.5 | Cv: 41.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
Irrigation ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Solenoid Valve for Tap Water RSV-W Series

Brand CKD·Irrigation Valves

Available part numbers (6)

RSV-15A-210W-3A011, RSV-20A-210W-3A011, RSV-25A-210W-3A011, RSV-32A-210W-3A011, RSV-40A-210W-3A011, RSV-50A-210W-3A011

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSV-15A-210W-3A011Port: Rc1/2 | Orifice (mm): 15.5 | Cv: 3.4 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-20A-210W-3A011Port: Rc3/4 | Orifice (mm): 25.5 | Cv: 10.1 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-25A-210W-3A011Port: Rc1 | Orifice (mm): 25.5 | Cv: 12.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-32A-210W-3A011Port: Rc1-1/4 | Orifice (mm): 50.5 | Cv: 25.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-40A-210W-3A011Port: Rc1-1/2 | Orifice (mm): 50.5 | Cv: 34.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
RSV-50A-210W-3A011Port: Rc2 | Orifice (mm): 50.5 | Cv: 41.0 | Fluid: tap water | Max working pressure (MPa): 1 | Operating pressure diff. (MPa): 0.02-1 | Fluid temperature (C): 0-60
