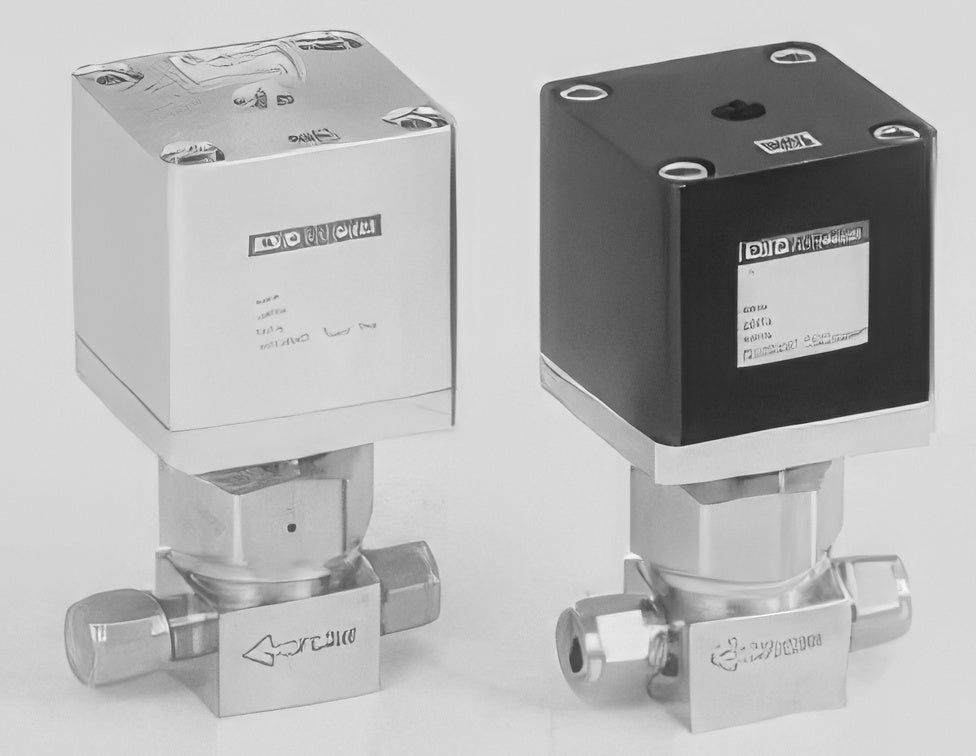

CKD Special Air Operated Cylinder Valves NAB-X Series (High Pressure, Color Change, Medium Pressure; Made to Order)

CKD Special Air Operated Cylinder Valves NAB-X Series (High Pressure, Color Change, Medium Pressure; Made to Order)

Made-to-order variants of the NAB compact air-operated cylinder valve: high-pressure air (20 MPa) valves with 1/4 inch bite fittings, color change valves for paint, thinner and air, and medium-pressure (1.5 MPa) cylinder valves with Rc1/8 ports.

Specifications

Pilot port Rc1/8
NAB-4SX1450 Port: 1/4 inch bite fitting | Orifice (mm): 3 | Working pressure (MPa): 0-20 | Mass (kg): 0.6 | Fluid: compressed air (high pressure) | Pilot port: Rc1/8
NAB-4SX1451 Port: 1/4 inch bite fitting | Orifice (mm): 3 | Working pressure (MPa): 0-20 | Mass (kg): 0.58 | Fluid: compressed air (high pressure) | Pilot port: Rc1/8
NAB-X2267 Type: color change valve, 2-port | Main port: G1/4 | Orifice (mm): approx. 3 | Cv: 0.3 | Working pressure (MPa): 0-1.0 | Mass (g): 180 | Fluid: paint, thinner, air | Pilot port: Rc1/8
NAB-X2268 Type: color change valve, 3-port | Main port: G1/4 | Orifice (mm): approx. 3 | Cv: 0.3 | Working pressure (MPa): 0-1.0 | Mass (g): 210 | Fluid: paint, thinner, air | Pilot port: Rc1/8
NAB-6X2191 Type: medium-pressure cylinder valve | Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-1.5 | Fluid: compressed air | Pilot port: Rc1/8
NAB-6X2192 Type: medium-pressure cylinder valve | Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-1.5 | Fluid: compressed air | Pilot port: Rc1/8
Air Operated ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Special Air Operated Cylinder Valves NAB-X Series (High Pressure, Color Change, Medium Pressure; Made to Order)

Brand CKD·Air Operated Valves

Available part numbers (6)

NAB-4SX1450, NAB-4SX1451, NAB-X2267, NAB-X2268, NAB-6X2191, NAB-6X2192

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NAB-4SX1450Port: 1/4 inch bite fitting | Orifice (mm): 3 | Working pressure (MPa): 0-20 | Mass (kg): 0.6 | Fluid: compressed air (high pressure) | Pilot port: Rc1/8
NAB-4SX1451Port: 1/4 inch bite fitting | Orifice (mm): 3 | Working pressure (MPa): 0-20 | Mass (kg): 0.58 | Fluid: compressed air (high pressure) | Pilot port: Rc1/8
NAB-X2267Type: color change valve, 2-port | Main port: G1/4 | Orifice (mm): approx. 3 | Cv: 0.3 | Working pressure (MPa): 0-1.0 | Mass (g): 180 | Fluid: paint, thinner, air | Pilot port: Rc1/8
NAB-X2268Type: color change valve, 3-port | Main port: G1/4 | Orifice (mm): approx. 3 | Cv: 0.3 | Working pressure (MPa): 0-1.0 | Mass (g): 210 | Fluid: paint, thinner, air | Pilot port: Rc1/8
NAB-6X2191Type: medium-pressure cylinder valve | Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-1.5 | Fluid: compressed air | Pilot port: Rc1/8
NAB-6X2192Type: medium-pressure cylinder valve | Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-1.5 | Fluid: compressed air | Pilot port: Rc1/8
