• CKD Speed Controller SC3R Series (M5 to R1/2)
1 1

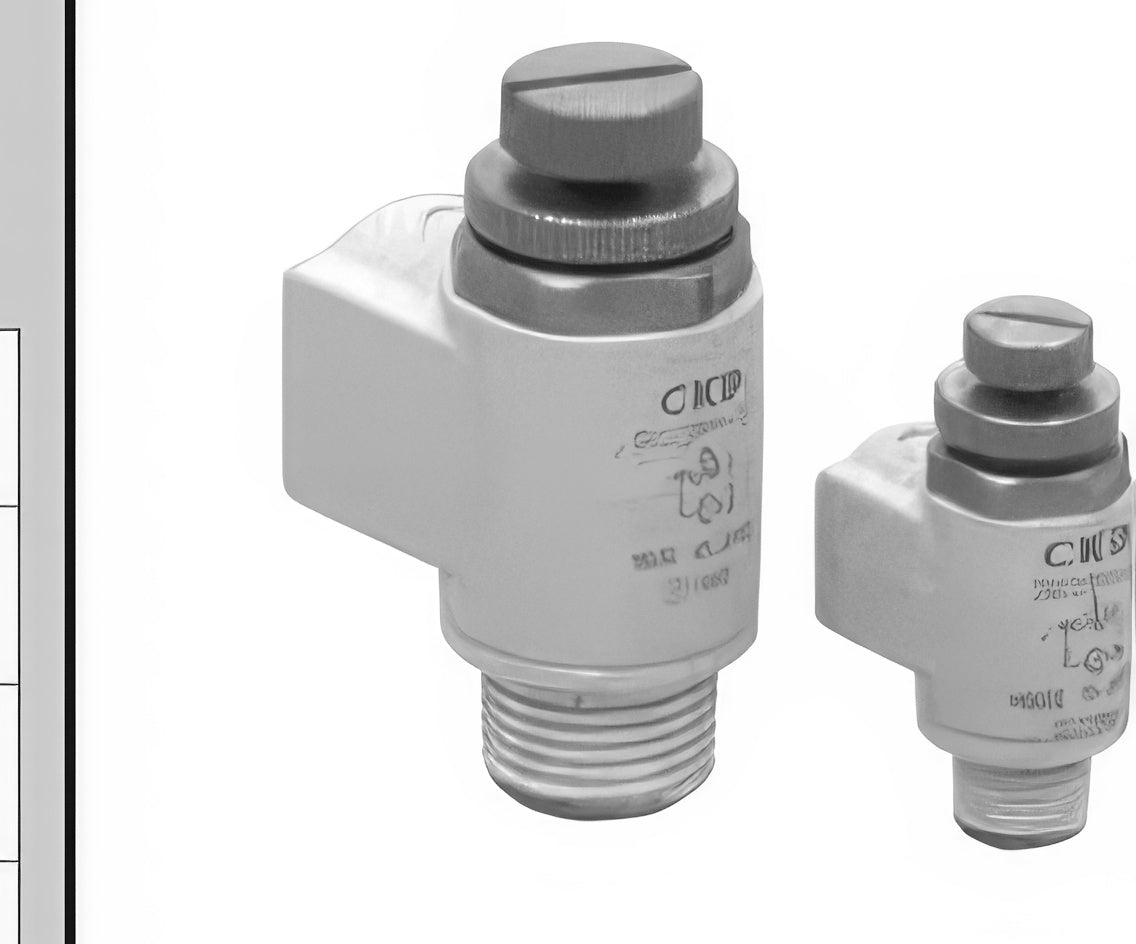

CKD Speed Controller SC3R Series (M5 to R1/2)

CKD Speed Controller SC3R Series (M5 to R1/2)

Speed controller with female/male thread connection.

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Min. working pressure (MPa) 0.05
Proof pressure (MPa) 1.5
SC3R-M5 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: M5 | Mass (g): 14 | Applicable cylinder bore (mm): φ6~φ16 | Needle turns: 11 | Effective area, free flow (mm2): 1, 2 | Effective area, controlled flow (mm2): 0.7
SC3R-6 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/8 | Mass (g): 40 | Applicable cylinder bore (mm): φ15~φ32 | Needle turns: 14 | Effective area, free flow (mm2): 4.0 | Effective area, controlled flow (mm2): 3.6 | Dim. A (mm): 42.5 | Dim. B (mm): 18.8
SC3R-8 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/4 | Mass (g): 70 | Applicable cylinder bore (mm): φ20~φ50 | Needle turns: 14 | Effective area, free flow (mm2): 7.5 | Effective area, controlled flow (mm2): 7.0 | Dim. A (mm): 51.2 | Dim. B (mm): 23.2
SC3R-10 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc3/8 | Mass (g): 110 | Applicable cylinder bore (mm): φ32~φ75 | Needle turns: 14 | Effective area, free flow (mm2): 16 | Effective area, controlled flow (mm2): 15 | Dim. mm2 (mm): (mm2) | Dim. A (mm): 60.2
SC3R-15 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/2 | Mass (g): 190 | Applicable cylinder bore (mm): φ40~φ110 | Needle turns: 16 | Effective area, free flow (mm2): 24 | Effective area, controlled flow (mm2): 24 | Dim. A (mm): 66.7 | Dim. B (mm): 30.0
Speed ControllersCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Speed Controller SC3R Series (M5 to R1/2)

Brand CKD·Speed Controllers

Available part numbers (5)

SC3R-M5, SC3R-6, SC3R-8, SC3R-10, SC3R-15

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC3R-M5Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: M5 | Mass (g): 14 | Applicable cylinder bore (mm): φ6~φ16 | Needle turns: 11 | Effective area, free flow (mm2): 1, 2 | Effective area, controlled flow (mm2): 0.7
SC3R-6Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/8 | Mass (g): 40 | Applicable cylinder bore (mm): φ15~φ32 | Needle turns: 14 | Effective area, free flow (mm2): 4.0 | Effective area, controlled flow (mm2): 3.6 | Dim. A (mm): 42.5 | Dim. B (mm): 18.8
SC3R-8Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/4 | Mass (g): 70 | Applicable cylinder bore (mm): φ20~φ50 | Needle turns: 14 | Effective area, free flow (mm2): 7.5 | Effective area, controlled flow (mm2): 7.0 | Dim. A (mm): 51.2 | Dim. B (mm): 23.2
SC3R-10Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc3/8 | Mass (g): 110 | Applicable cylinder bore (mm): φ32~φ75 | Needle turns: 14 | Effective area, free flow (mm2): 16 | Effective area, controlled flow (mm2): 15 | Dim. mm2 (mm): (mm2) | Dim. A (mm): 60.2
SC3R-15Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.5 | Port size: Rc1/2 | Mass (g): 190 | Applicable cylinder bore (mm): φ40~φ110 | Needle turns: 16 | Effective area, free flow (mm2): 24 | Effective area, controlled flow (mm2): 24 | Dim. A (mm): 66.7 | Dim. B (mm): 30.0

Need a different model, or a part not listed here? Send us your parts list →
