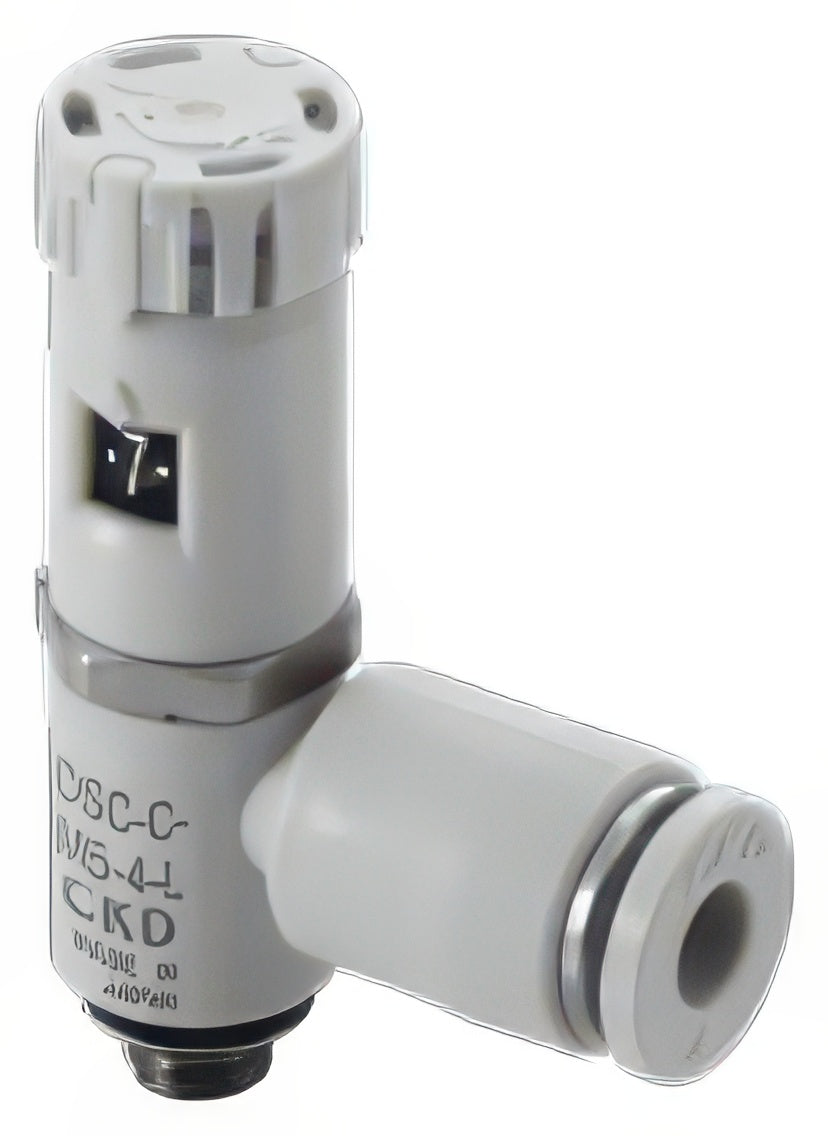

CKD Speed Controller with Dial DSC Series (Clean Spec)

CKD Speed Controller with Dial DSC Series (Clean Spec)

Speed controllers with a numbered dial that shows the needle setting, in clean-room specification.

Key features

  • Compact type (DSC-C, M5/R1/8) and standard type (DSC, R1/8-R1/2) with one-touch fittings for tube OD 4-12 mm
  • Meter-out is standard; meter-in, low-flow and micro-flow versions are selectable when ordering

Specifications

Max pressure (MPa) 1.0
Clean suffix P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
Control meter-out (standard)
DSC-C-M5-4-P7※ Port: M5 | Tube OD (mm): 4 | Free flow eff. area (mm2): 1.5 | Controlled flow eff. area (mm2): 0.9 (low flow 0.3, micro 0.1) | Free flow (L/min ANR @0.5MPa): 100 | Controlled flow (L/min ANR @0.5MPa): 60 (low flow 20, micro 6.7) | Applicable cylinder bore: phi6-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-M5-6-P7※ Port: M5 | Tube OD (mm): 6 | Free flow eff. area (mm2): 1.5 | Controlled flow eff. area (mm2): 0.9 (low flow 0.3, micro 0.1) | Free flow (L/min ANR @0.5MPa): 100 | Controlled flow (L/min ANR @0.5MPa): 60 (low flow 20, micro 6.7) | Applicable cylinder bore: phi6-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-4-P7※ Port: R1/8 | Tube OD (mm): 4 | Free flow eff. area (mm2): 3.2 | Controlled flow eff. area (mm2): 2.4 (low flow 0.9, micro 0.2) | Free flow (L/min ANR @0.5MPa): 210 | Controlled flow (L/min ANR @0.5MPa): 160 (low flow 60, micro 13) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-6-P7※ Port: R1/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9, micro 0.2) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60, micro 13) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-8-P7※ Port: R1/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-4-P7※ Port: R1/8 | Tube OD (mm): 4 | Free flow eff. area (mm2): 3.2 | Controlled flow eff. area (mm2): 2.4 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 210 | Controlled flow (L/min ANR @0.5MPa): 160 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-6-P7※ Port: R1/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-8-P7※ Port: R1/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-6-P7※ Port: R1/4 | Tube OD (mm): 6 | Free flow eff. area (mm2): 7 | Controlled flow eff. area (mm2): 5 (low flow 2) | Free flow (L/min ANR @0.5MPa): 470 | Controlled flow (L/min ANR @0.5MPa): 320 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-8-P7※ Port: R1/4 | Tube OD (mm): 8 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 6 (low flow 2) | Free flow (L/min ANR @0.5MPa): 530 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-10-P7※ Port: R1/4 | Tube OD (mm): 10 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 6 (low flow 2) | Free flow (L/min ANR @0.5MPa): 530 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-6-P7※ Port: R3/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 10 | Controlled flow eff. area (mm2): 6 (low flow 4) | Free flow (L/min ANR @0.5MPa): 670 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-8-P7※ Port: R3/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 15 | Controlled flow eff. area (mm2): 10.5 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1000 | Controlled flow (L/min ANR @0.5MPa): 700 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-10-P7※ Port: R3/8 | Tube OD (mm): 10 | Free flow eff. area (mm2): 16 | Controlled flow eff. area (mm2): 12 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1070 | Controlled flow (L/min ANR @0.5MPa): 800 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-12-P7※ Port: R3/8 | Tube OD (mm): 12 | Free flow eff. area (mm2): 16 | Controlled flow eff. area (mm2): 12 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1070 | Controlled flow (L/min ANR @0.5MPa): 800 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-15-10-P7※ Port: R1/2 | Tube OD (mm): 10 | Free flow eff. area (mm2): 22 | Controlled flow eff. area (mm2): 17 (low flow 6) | Free flow (L/min ANR @0.5MPa): 1470 | Controlled flow (L/min ANR @0.5MPa): 1120 (low flow 400) | Applicable cylinder bore: phi40-100 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-15-12-P7※ Port: R1/2 | Tube OD (mm): 12 | Free flow eff. area (mm2): 24 | Controlled flow eff. area (mm2): 17.5 (low flow 6) | Free flow (L/min ANR @0.5MPa): 1600 | Controlled flow (L/min ANR @0.5MPa): 1200 (low flow 400) | Applicable cylinder bore: phi40-100 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
Speed ControllersCKD
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Speed Controller with Dial DSC Series (Clean Spec)

Brand CKD·Speed Controllers

Available part numbers (17)

DSC-C-M5-4-P7※, DSC-C-M5-6-P7※, DSC-C-6-4-P7※, DSC-C-6-6-P7※, DSC-C-6-8-P7※, DSC-6-4-P7※, DSC-6-6-P7※, DSC-6-8-P7※, DSC-8-6-P7※, DSC-8-8-P7※ + 7 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DSC-C-M5-4-P7※Port: M5 | Tube OD (mm): 4 | Free flow eff. area (mm2): 1.5 | Controlled flow eff. area (mm2): 0.9 (low flow 0.3, micro 0.1) | Free flow (L/min ANR @0.5MPa): 100 | Controlled flow (L/min ANR @0.5MPa): 60 (low flow 20, micro 6.7) | Applicable cylinder bore: phi6-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-M5-6-P7※Port: M5 | Tube OD (mm): 6 | Free flow eff. area (mm2): 1.5 | Controlled flow eff. area (mm2): 0.9 (low flow 0.3, micro 0.1) | Free flow (L/min ANR @0.5MPa): 100 | Controlled flow (L/min ANR @0.5MPa): 60 (low flow 20, micro 6.7) | Applicable cylinder bore: phi6-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-4-P7※Port: R1/8 | Tube OD (mm): 4 | Free flow eff. area (mm2): 3.2 | Controlled flow eff. area (mm2): 2.4 (low flow 0.9, micro 0.2) | Free flow (L/min ANR @0.5MPa): 210 | Controlled flow (L/min ANR @0.5MPa): 160 (low flow 60, micro 13) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-6-P7※Port: R1/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9, micro 0.2) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60, micro 13) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-C-6-8-P7※Port: R1/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-4-P7※Port: R1/8 | Tube OD (mm): 4 | Free flow eff. area (mm2): 3.2 | Controlled flow eff. area (mm2): 2.4 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 210 | Controlled flow (L/min ANR @0.5MPa): 160 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-6-P7※Port: R1/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-6-8-P7※Port: R1/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 4 | Controlled flow eff. area (mm2): 3 (low flow 0.9) | Free flow (L/min ANR @0.5MPa): 270 | Controlled flow (L/min ANR @0.5MPa): 200 (low flow 60) | Applicable cylinder bore: phi15-32 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-6-P7※Port: R1/4 | Tube OD (mm): 6 | Free flow eff. area (mm2): 7 | Controlled flow eff. area (mm2): 5 (low flow 2) | Free flow (L/min ANR @0.5MPa): 470 | Controlled flow (L/min ANR @0.5MPa): 320 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-8-P7※Port: R1/4 | Tube OD (mm): 8 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 6 (low flow 2) | Free flow (L/min ANR @0.5MPa): 530 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-8-10-P7※Port: R1/4 | Tube OD (mm): 10 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 6 (low flow 2) | Free flow (L/min ANR @0.5MPa): 530 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 130) | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-6-P7※Port: R3/8 | Tube OD (mm): 6 | Free flow eff. area (mm2): 10 | Controlled flow eff. area (mm2): 6 (low flow 4) | Free flow (L/min ANR @0.5MPa): 670 | Controlled flow (L/min ANR @0.5MPa): 400 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-8-P7※Port: R3/8 | Tube OD (mm): 8 | Free flow eff. area (mm2): 15 | Controlled flow eff. area (mm2): 10.5 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1000 | Controlled flow (L/min ANR @0.5MPa): 700 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-10-P7※Port: R3/8 | Tube OD (mm): 10 | Free flow eff. area (mm2): 16 | Controlled flow eff. area (mm2): 12 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1070 | Controlled flow (L/min ANR @0.5MPa): 800 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-10-12-P7※Port: R3/8 | Tube OD (mm): 12 | Free flow eff. area (mm2): 16 | Controlled flow eff. area (mm2): 12 (low flow 4) | Free flow (L/min ANR @0.5MPa): 1070 | Controlled flow (L/min ANR @0.5MPa): 800 (low flow 270) | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-15-10-P7※Port: R1/2 | Tube OD (mm): 10 | Free flow eff. area (mm2): 22 | Controlled flow eff. area (mm2): 17 (low flow 6) | Free flow (L/min ANR @0.5MPa): 1470 | Controlled flow (L/min ANR @0.5MPa): 1120 (low flow 400) | Applicable cylinder bore: phi40-100 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
DSC-15-12-P7※Port: R1/2 | Tube OD (mm): 12 | Free flow eff. area (mm2): 24 | Controlled flow eff. area (mm2): 17.5 (low flow 6) | Free flow (L/min ANR @0.5MPa): 1600 | Controlled flow (L/min ANR @0.5MPa): 1200 (low flow 400) | Applicable cylinder bore: phi40-100 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free) | Control: meter-out (standard)
