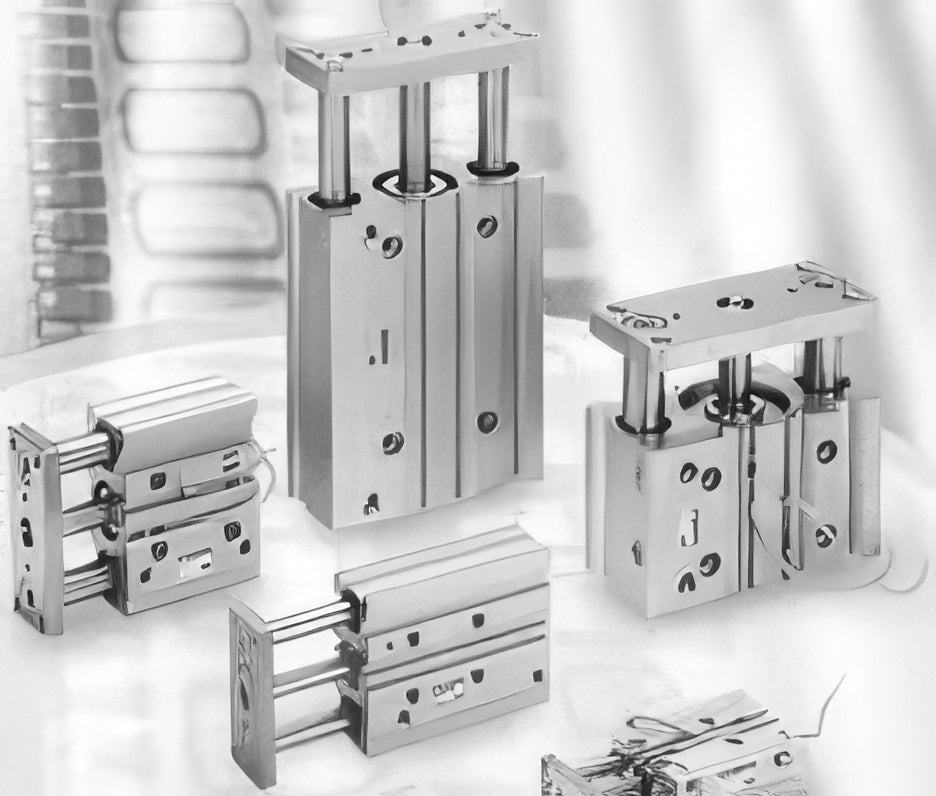

CKD STG Guided Cylinder Seal Kits

CKD STG Guided Cylinder Seal Kits

Replacement seal (packing) kits for CKD STG series cylinders, listed by tube bore.

Key features

  • Each kit number groups the consumable packings, gaskets and cushion rubbers shown in the catalog parts list
  • Specify the kit number when ordering spare parts

Specifications

Kit type Seal (packing) kit
STG-12K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 12
STG-16K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 16
STG-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 20
STG-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 25
STG-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 32
STG-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 40
STG-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 50
STG-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 63
STG-80K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 80
STG-100K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B (double acting) | Bore (mm): 100
STG-32CK Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-C (rubber air cushion) | Bore (mm): 32
STG-40CK Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-C (rubber air cushion) | Bore (mm): 40
STG-50CK Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-C (rubber air cushion) | Bore (mm): 50
STG-63CK Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-C (rubber air cushion) | Bore (mm): 63
STG-C-16K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 16
STG-C-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 20
STG-C-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 25
STG-C-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 32
STG-C-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 40
STG-C-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 50
STG-C-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-MC/BC (air cushion) | Bore (mm): 63
STG-Q-H-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 20
STG-Q-R-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 20
STG-Q-H-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 25
STG-Q-R-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 25
STG-Q-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 32
STG-Q-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 40
STG-Q-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 50
STG-Q-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-Q (with drop prevention) | Bore (mm): 63
STG-MG-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 20
STG-BG-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 20
STG-MG-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 25
STG-BG-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 25
STG-MG-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 32
STG-BG-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 32
STG-MG-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 40
STG-BG-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 40
STG-MG-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 50
STG-BG-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 50
STG-MG-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 63
STG-BG-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 63
STG-MG1-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 20
STG-BG1-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 20
STG-MG1-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 25
STG-BG1-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 25
STG-MG1-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 32
STG-BG1-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 32
STG-MG1-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 40
STG-BG1-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 40
STG-MG1-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 50
STG-BG1-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 50
STG-MG1-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 63
STG-BG1-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-M/B-G, G1 (scraper / coolant resistant) | Bore (mm): 63
STG-MG2-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 20
STG-MG3-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 20
STG-MG2-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 25
STG-MG3-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 25
STG-MG2-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 32
STG-MG3-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 32
STG-MG2-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 40
STG-MG3-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 40
STG-MG2-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 50
STG-MG3-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 50
STG-MG2-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 63
STG-MG3-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG2, MG3 (coolant resistant) | Bore (mm): 63
STG-MG5-20K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 20
STG-MG5-25K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 25
STG-MG5-32K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 32
STG-MG5-40K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 40
STG-MG5-50K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 50
STG-MG5-63K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 63
STG-MG5-80K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 80
STG-MG5-100K Kit type: Seal (packing) kit | Applicable cylinder: STG-MG5 | Bore (mm): 100
Cylinder Seal KitsCKD
73 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG Guided Cylinder Seal Kits

Brand CKD·Cylinder Seal Kits

Available part numbers (73)

STG-12K, STG-16K, STG-20K, STG-25K, STG-32K, STG-40K, STG-50K, STG-63K, STG-80K, STG-100K + 63 more — see full table ↓
