CKD STS / STL with Valve Sub-base Kits

CKD STS / STL with Valve Sub-base Kits

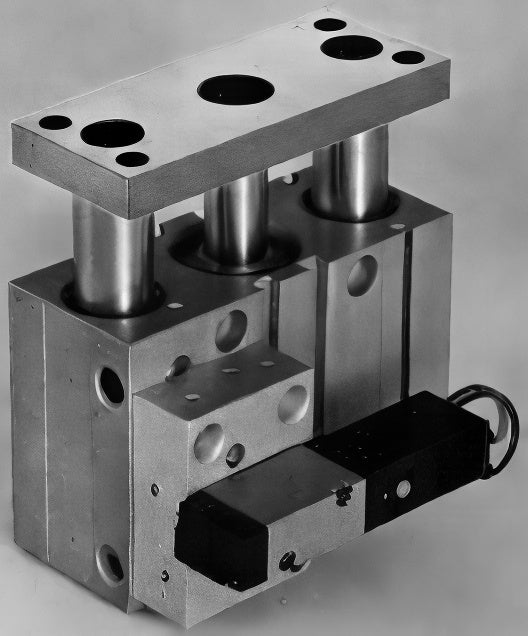

Sub-base kits for CKD STS/STL guided cylinders with integrated valve (V1/V2 types).

Key features

  • Kits are listed by valve mounting position (front or side) and operation when energized (extend or retract)
  • One kit covers paired bore sizes where shown

Specifications

Kit type Sub-base kit
STS-V1-20 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1 (front-mounted valve, extend when energized) | Bore (mm): 20, 25
STS-V1-32 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1 (front-mounted valve, extend when energized) | Bore (mm): 32
STS-V1-40 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1 (front-mounted valve, extend when energized) | Bore (mm): 40
STS-V1-50 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1 (front-mounted valve, extend when energized) | Bore (mm): 50, 63
STS-V1S-20 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1S (side-mounted valve, extend when energized) | Bore (mm): 20, 25
STS-V1S-32 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1S (side-mounted valve, extend when energized) | Bore (mm): 32
STS-V1S-40 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1S (side-mounted valve, extend when energized) | Bore (mm): 40
STS-V1S-50 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V1S (side-mounted valve, extend when energized) | Bore (mm): 50, 63
STS-V2-20 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2 (front-mounted valve, retract when energized) | Bore (mm): 20, 25
STS-V2-32 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2 (front-mounted valve, retract when energized) | Bore (mm): 32
STS-V2-40 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2 (front-mounted valve, retract when energized) | Bore (mm): 40
STS-V2-50 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2 (front-mounted valve, retract when energized) | Bore (mm): 50, 63
STS-V2S-20 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2S (side-mounted valve, retract when energized) | Bore (mm): 20, 25
STS-V2S-32 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2S (side-mounted valve, retract when energized) | Bore (mm): 32
STS-V2S-40 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2S (side-mounted valve, retract when energized) | Bore (mm): 40
STS-V2S-50 Kit type: Sub-base kit | Applicable cylinder: STS/STL-M/B-V2S (side-mounted valve, retract when energized) | Bore (mm): 50, 63
Cylinder Spare PartsCKD
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS / STL with Valve Sub-base Kits

Brand CKD·Cylinder Spare Parts

Available part numbers (16)

STS-V1-20, STS-V1-32, STS-V1-40, STS-V1-50, STS-V1S-20, STS-V1S-32, STS-V1S-40, STS-V1S-50, STS-V2-20, STS-V2-32 + 6 more — see full table ↓
